Base class for interactive UI elements handling focus and events. More...

#include <spk_widget.hpp>

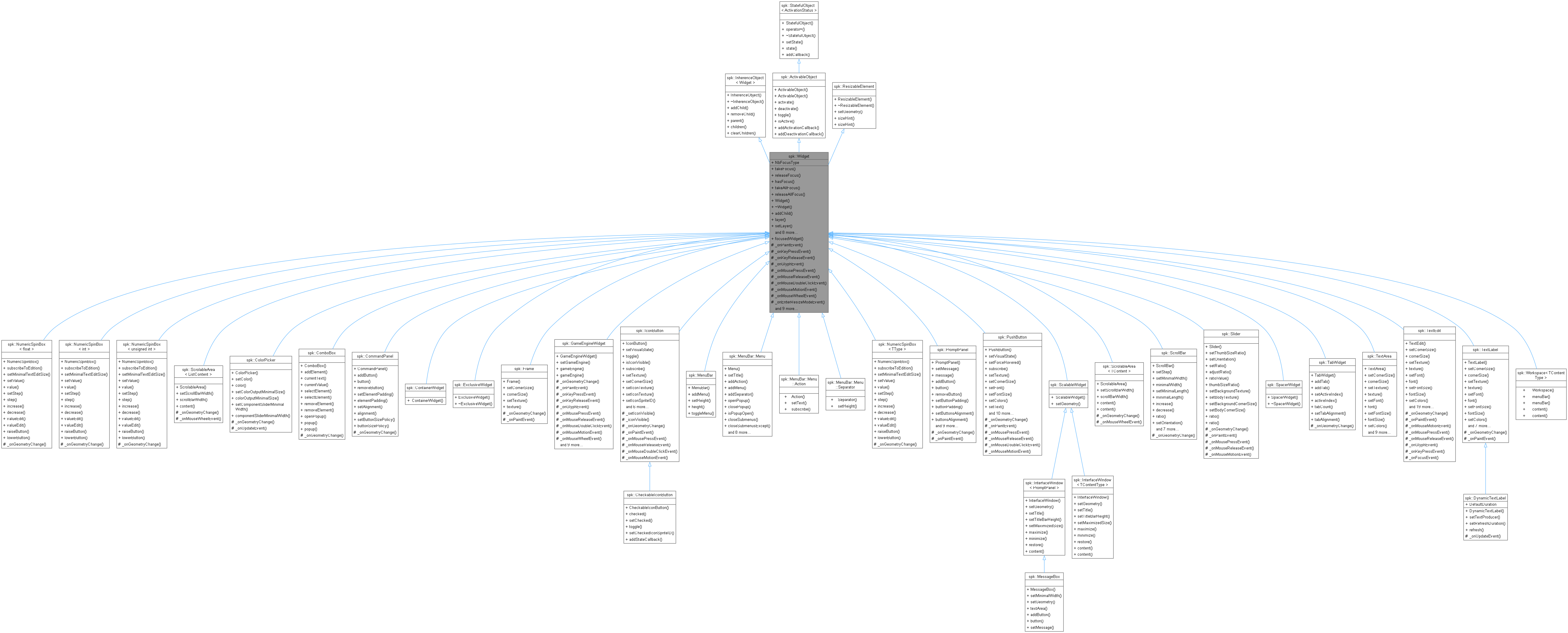

Inheritance diagram for spk::Widget:

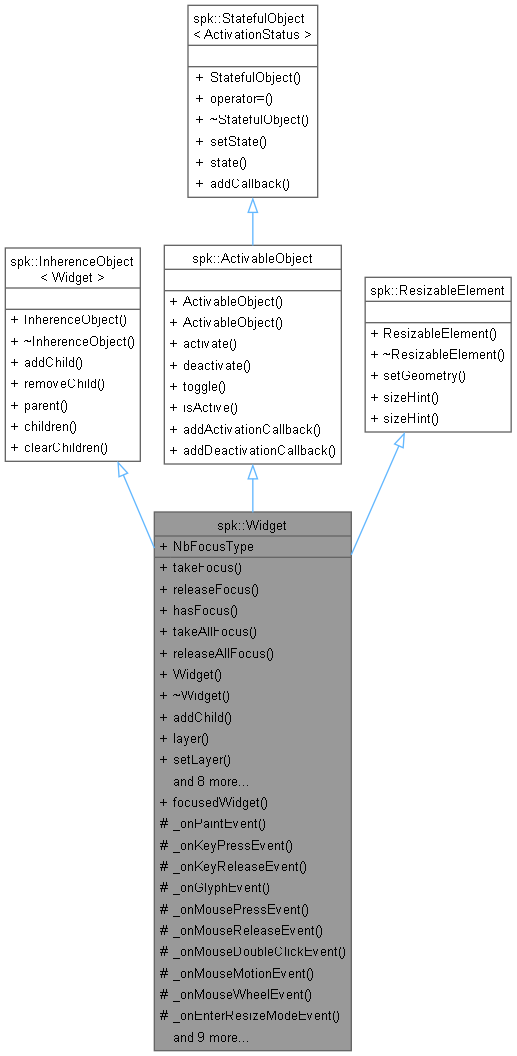

Collaboration diagram for spk::Widget:

Classes
struct	Style
	Collection of default assets used by widgets when no overrides are supplied. More...

Public Types
enum class	FocusType { Keyboard = 0 , Mouse = 1 }
	Types of focus a widget can own.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Public Member Functions
void	takeFocus (FocusType p_focusType)
	Grants this widget ownership of the requested focus type.
void	releaseFocus (FocusType p_focusType)
	Releases a previously acquired focus type.
bool	hasFocus (FocusType p_focusType) const
	Checks if this widget currently owns a focus type.
void	takeAllFocus ()
	Acquires both keyboard and mouse focus.
void	releaseAllFocus ()
	Releases both keyboard and mouse focus types.
	Widget (const std::wstring &p_name, Widget *p_parent)
	Builds a widget optionally attached to a parent.
void	addChild (Widget *p_child) override
	Adds a child widget and sorts the hierarchy by layer.
const float &	layer () const
	Current rendering layer of the widget.
void	setLayer (const float &p_newLayer)
	Updates the widget layer and propagates relative offsets to children.
const std::wstring &	name () const
	Retrieves the widget name.
void	setName (const std::wstring &p_name)
	Sets the widget name.
void	setGeometry (const spk::Extend2D &p_geometry) override
	Requests a specific viewport and scissor region for the widget.
const spk::Extend2D &	geometry () const
	Returns the current widget geometry.
const spk::OpenGL::ViewRegion &	viewRegion () const
	Accesses the computed view region.
const spk::OpenGL::FrameBufferObject &	frameBufferObject () const
	Returns the frame buffer object used for widget rendering.
const spk::OpenGL::FrameBufferObject &	fbo () const
	Alias for frameBufferObject().
void	requireGeometryChange ()
	Marks the widget view region as needing recomputation.
Public Member Functions inherited from spk::InherenceObject< Widget >
virtual void	removeChild (Widget *p_child)
	Removes a child from this node.
Widget *	parent () const
	Returns the parent pointer.
virtual std::vector< Widget * > &	children ()
	Returns the children vector.
void	clearChildren ()
	Clears the children list and resets each child's parent pointer.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::ResizableElement
SizeHint &	sizeHint ()
	Returns mutable size hint data.
const SizeHint &	sizeHint () const
	Returns const size hint data.

Static Public Member Functions
static Widget *	focusedWidget (FocusType p_focusType)
	Retrieves the widget currently owning a focus type.

Static Public Attributes
static const size_t	NbFocusType = 2
	Number of focus slots tracked at runtime.

Protected Member Functions
virtual void	_onPaintEvent (spk::PaintEvent &p_event)
	Paint event hook for derived widgets.
virtual void	_onKeyPressEvent (spk::KeyPressEvent &p_event)
	Keyboard press handler for derived widgets.
virtual void	_onKeyReleaseEvent (spk::KeyReleaseEvent &p_event)
	Keyboard release handler for derived widgets.
virtual void	_onGlyphEvent (spk::GlyphEvent &p_event)
	Text glyph input handler for derived widgets.
virtual void	_onMousePressEvent (spk::MousePressEvent &p_event)
	Mouse button press handler for derived widgets.
virtual void	_onMouseReleaseEvent (spk::MouseReleaseEvent &p_event)
	Mouse button release handler for derived widgets.
virtual void	_onMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event)
	Mouse double click handler for derived widgets.
virtual void	_onMouseMotionEvent (spk::MouseMotionEvent &p_event)
	Mouse motion handler for derived widgets.
virtual void	_onMouseWheelEvent (spk::MouseWheelEvent &p_event)
	Mouse wheel handler for derived widgets.
virtual void	_onEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event)
	Callback for entering resize mode.
virtual void	_onResizeEvent (spk::ResizeEvent &p_event)
	Resize handling hook.
virtual void	_onExitResizeModeEvent (spk::ExitResizeModeEvent &p_event)
	Callback invoked when leaving resize mode.
virtual void	_onQuitEvent (spk::QuitEvent &p_event)
	Quit event handler hook.
virtual void	_onMoveEvent (spk::MoveEvent &p_event)
	Window move handler hook.
virtual void	_onFullScreenModeEvent (spk::FullScreenModeEvent &p_event)
	Full screen toggle handler hook.
virtual void	_onMaximizedModeEvent (spk::MaximizedModeEvent &p_event)
	Maximized mode change handler.
virtual void	_onFocusEvent (spk::FocusEvent &p_event)
	Focus change handler hook.
virtual void	_onUpdateEvent (spk::UpdateEvent &p_event)
	Frame update handler hook.
virtual void	_onGeometryChange ()
	Notifies derived widgets that the view region changed.

Friends
class	Module::KeyboardModule
class	Module::MouseModule
class	Module::SystemModule
class	Module::UpdateModule
class	Module::PaintModule

Detailed Description

Base class for interactive UI elements handling focus and events.

See also: spk::Module::KeyboardModule, spk::Module::MouseModule

spk::Widget button{L"button", nullptr};

button.takeFocus(spk::Widget::FocusType::Keyboard);

spk::Widget

Base class for interactive UI elements handling focus and events.

Definition spk_widget.hpp:52

spk::Widget::takeFocus

void takeFocus(FocusType p_focusType)

Grants this widget ownership of the requested focus type.

Definition spk_widget.cpp:29

Constructor & Destructor Documentation

◆ Widget()

spk::Widget::Widget	(	const std::wstring &	p_name,
		Widget *	p_parent )

Builds a widget optionally attached to a parent.

Parameters

p_name	Display name of the widget.
p_parent	Parent widget to attach to; can be nullptr.

Here is the call graph for this function:

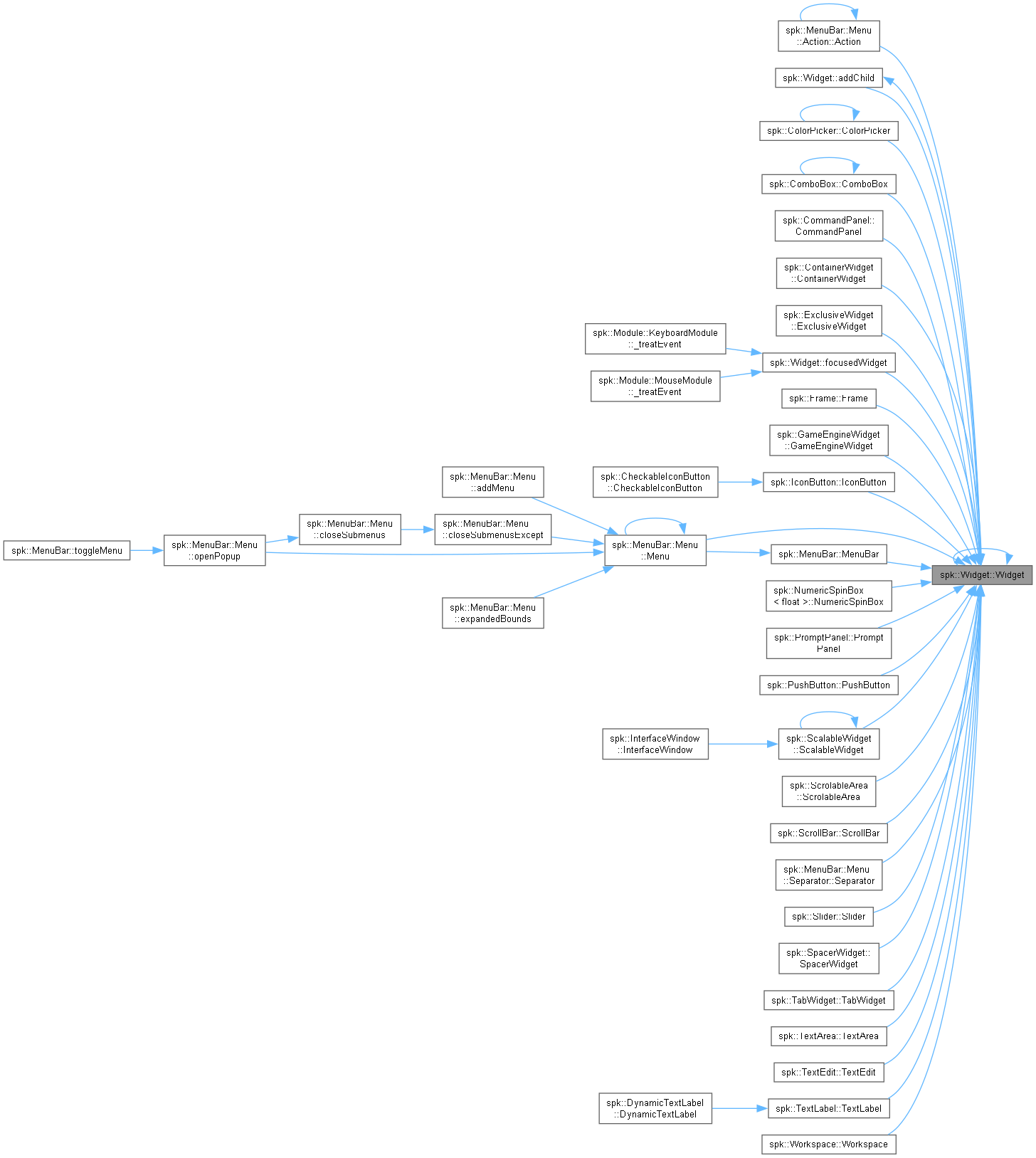

Here is the caller graph for this function:

Member Function Documentation

◆ _onEnterResizeModeEvent()

void spk::Widget::_onEnterResizeModeEvent ( spk::EnterResizeModeEvent & p_event )

protectedvirtual

Callback for entering resize mode.

Parameters

p_event Event carrying the current window metrics when resizing starts.

Reimplemented in spk::GameEngineWidget.

◆ _onExitResizeModeEvent()

void spk::Widget::_onExitResizeModeEvent ( spk::ExitResizeModeEvent & p_event )

protectedvirtual

Callback invoked when leaving resize mode.

Parameters

p_event Event carrying the final window metrics after resizing.

Reimplemented in spk::GameEngineWidget.

◆ _onFocusEvent()

void spk::Widget::_onFocusEvent ( spk::FocusEvent & p_event )

protectedvirtual

Focus change handler hook.

Parameters

p_event Event containing the new focus state.

Reimplemented in spk::GameEngineWidget, and spk::TextEdit.

◆ _onFullScreenModeEvent()

void spk::Widget::_onFullScreenModeEvent ( spk::FullScreenModeEvent & p_event )

protectedvirtual

Full screen toggle handler hook.

Parameters

p_event Event describing the new full screen state.

Reimplemented in spk::GameEngineWidget.

◆ _onGeometryChange()

void spk::Widget::_onGeometryChange ( )

protectedvirtual

Notifies derived widgets that the view region changed.

Reimplemented in spk::ColorPicker, spk::ComboBox, spk::CommandPanel, spk::Frame, spk::GameEngineWidget, spk::IconButton, spk::NumericSpinBox< TType >, spk::NumericSpinBox< float >, spk::NumericSpinBox< int >, spk::NumericSpinBox< unsigned int >, spk::PromptPanel, spk::PushButton, spk::ScrolableArea< TContent >, spk::ScrolableArea< ListContent >, spk::ScrollBar, spk::Slider, spk::TabWidget, spk::TextEdit, and spk::TextLabel.

◆ _onGlyphEvent()

void spk::Widget::_onGlyphEvent ( spk::GlyphEvent & p_event )

protectedvirtual

Text glyph input handler for derived widgets.

Parameters

p_event Unicode glyph information for text entry.

Reimplemented in spk::GameEngineWidget, and spk::TextEdit.

◆ _onKeyPressEvent()

void spk::Widget::_onKeyPressEvent ( spk::KeyPressEvent & p_event )

protectedvirtual

Keyboard press handler for derived widgets.

Parameters

p_event Key code and modifiers associated with the press.

Reimplemented in spk::GameEngineWidget, and spk::TextEdit.

◆ _onKeyReleaseEvent()

void spk::Widget::_onKeyReleaseEvent ( spk::KeyReleaseEvent & p_event )

protectedvirtual

Keyboard release handler for derived widgets.

Parameters

p_event Key code and modifiers associated with the release.

Reimplemented in spk::GameEngineWidget.

◆ _onMaximizedModeEvent()

void spk::Widget::_onMaximizedModeEvent ( spk::MaximizedModeEvent & p_event )

protectedvirtual

Maximized mode change handler.

Parameters

p_event Event describing the new maximized state.

Reimplemented in spk::GameEngineWidget.

◆ _onMouseDoubleClickEvent()

void spk::Widget::_onMouseDoubleClickEvent ( spk::MouseDoubleClickEvent & p_event )

protectedvirtual

Mouse double click handler for derived widgets.

Parameters

p_event Button identifier and cursor position for the double click.

Reimplemented in spk::GameEngineWidget, spk::IconButton, and spk::PushButton.

◆ _onMouseMotionEvent()

void spk::Widget::_onMouseMotionEvent ( spk::MouseMotionEvent & p_event )

protectedvirtual

Mouse motion handler for derived widgets.

Parameters

p_event Cursor position delta and absolute coordinates.

Reimplemented in spk::GameEngineWidget, spk::IconButton, spk::PushButton, spk::Slider, and spk::TextEdit.

◆ _onMousePressEvent()

void spk::Widget::_onMousePressEvent ( spk::MousePressEvent & p_event )

protectedvirtual

Mouse button press handler for derived widgets.

Parameters

p_event Button identifier and cursor position for the press.

Reimplemented in spk::GameEngineWidget, spk::IconButton, spk::PushButton, spk::Slider, and spk::TextEdit.

◆ _onMouseReleaseEvent()

void spk::Widget::_onMouseReleaseEvent ( spk::MouseReleaseEvent & p_event )

protectedvirtual

Mouse button release handler for derived widgets.

Parameters

p_event Button identifier and cursor position for the release.

Reimplemented in spk::GameEngineWidget, spk::IconButton, spk::PushButton, spk::Slider, and spk::TextEdit.

◆ _onMouseWheelEvent()

void spk::Widget::_onMouseWheelEvent ( spk::MouseWheelEvent & p_event )

protectedvirtual

Mouse wheel handler for derived widgets.

Parameters

p_event Scrolling delta and cursor position.

Reimplemented in spk::GameEngineWidget, spk::ScrolableArea< TContent >, and spk::ScrolableArea< ListContent >.

◆ _onMoveEvent()

void spk::Widget::_onMoveEvent ( spk::MoveEvent & p_event )

protectedvirtual

Window move handler hook.

Parameters

p_event New window position.

Reimplemented in spk::GameEngineWidget.

◆ _onPaintEvent()

void spk::Widget::_onPaintEvent ( spk::PaintEvent & p_event )

protectedvirtual

Paint event hook for derived widgets.

Parameters

p_event Event describing the paint request region and target.

Reimplemented in spk::Frame, spk::GameEngineWidget, spk::IconButton, spk::PromptPanel, spk::PushButton, spk::Slider, spk::TextEdit, and spk::TextLabel.

◆ _onQuitEvent()

void spk::Widget::_onQuitEvent ( spk::QuitEvent & p_event )

protectedvirtual

Quit event handler hook.

Parameters

p_event Event signifying shutdown.

Reimplemented in spk::GameEngineWidget.

◆ _onResizeEvent()

void spk::Widget::_onResizeEvent ( spk::ResizeEvent & p_event )

protectedvirtual

Resize handling hook.

Parameters

p_event New viewport dimensions.

Reimplemented in spk::GameEngineWidget.

◆ _onUpdateEvent()

void spk::Widget::_onUpdateEvent ( spk::UpdateEvent & p_event )

protectedvirtual

Frame update handler hook.

Parameters

p_event Event emitted each frame for logic updates.

Reimplemented in spk::ColorPicker, spk::DynamicTextLabel, and spk::GameEngineWidget.

Here is the caller graph for this function:

◆ addChild()

void spk::Widget::addChild ( Widget * p_child )

overridevirtual

Adds a child widget and sorts the hierarchy by layer.

Parameters

p_child Child widget to insert.

Reimplemented from spk::InherenceObject< Widget >.

Here is the call graph for this function:

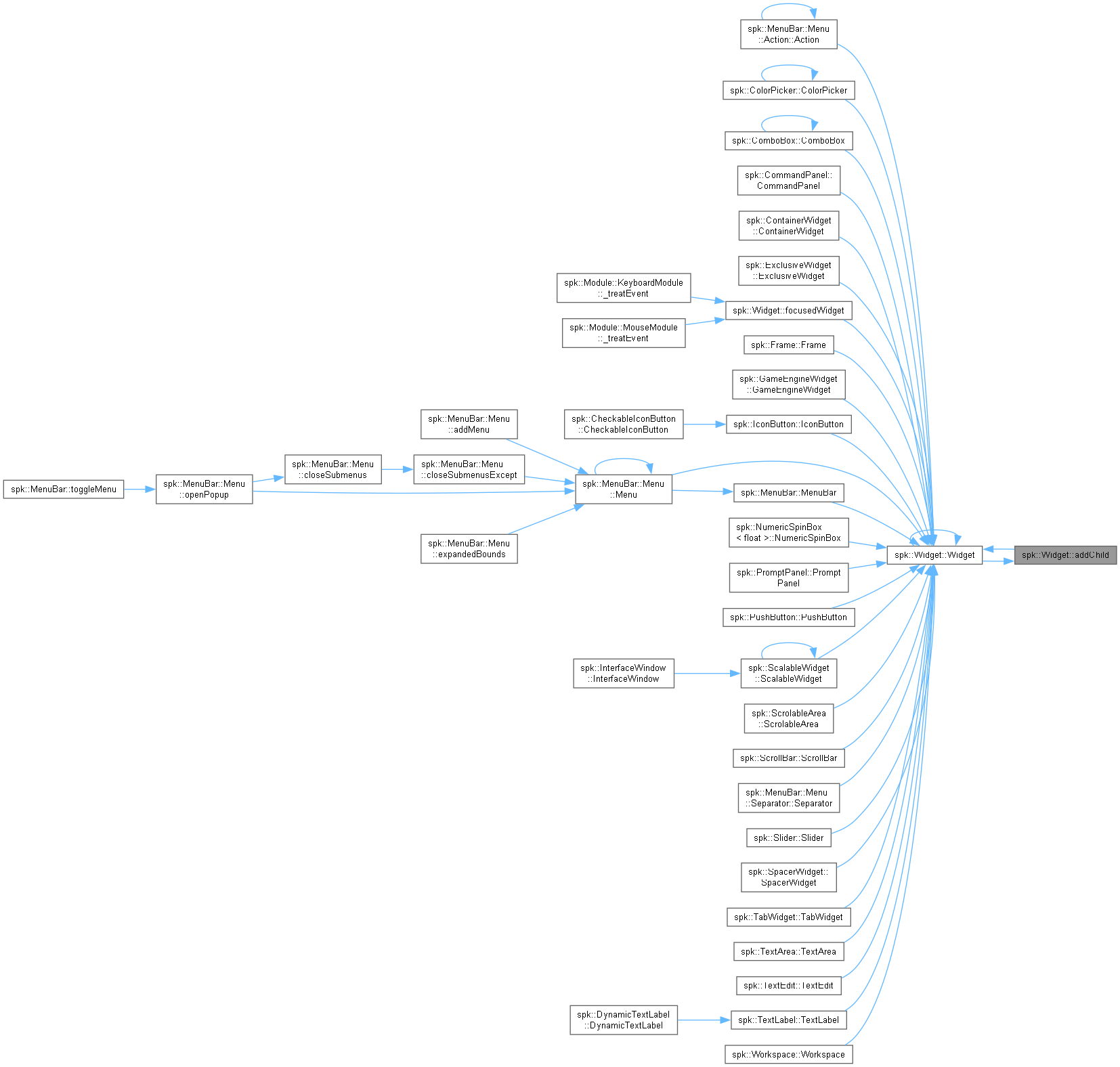

Here is the caller graph for this function:

◆ fbo()

const spk::OpenGL::FrameBufferObject & spk::Widget::fbo ( ) const

Alias for frameBufferObject().

Returns: Frame buffer object bound to the widget.

See also: frameBufferObject

Here is the call graph for this function:

◆ focusedWidget()

Widget * spk::Widget::focusedWidget ( FocusType p_focusType )

static

Retrieves the widget currently owning a focus type.

Parameters

p_focusType Focus lane to inspect.

Returns: Widget owning the focus, or nullptr when none.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ frameBufferObject()

const spk::OpenGL::FrameBufferObject & spk::Widget::frameBufferObject ( ) const

Returns the frame buffer object used for widget rendering.

Returns: Frame buffer object bound to the widget.

See also: fbo

Here is the caller graph for this function:

◆ geometry()

const spk::Extend2D & spk::Widget::geometry ( ) const

Returns the current widget geometry.

Returns: Widget geometry in parent coordinates.

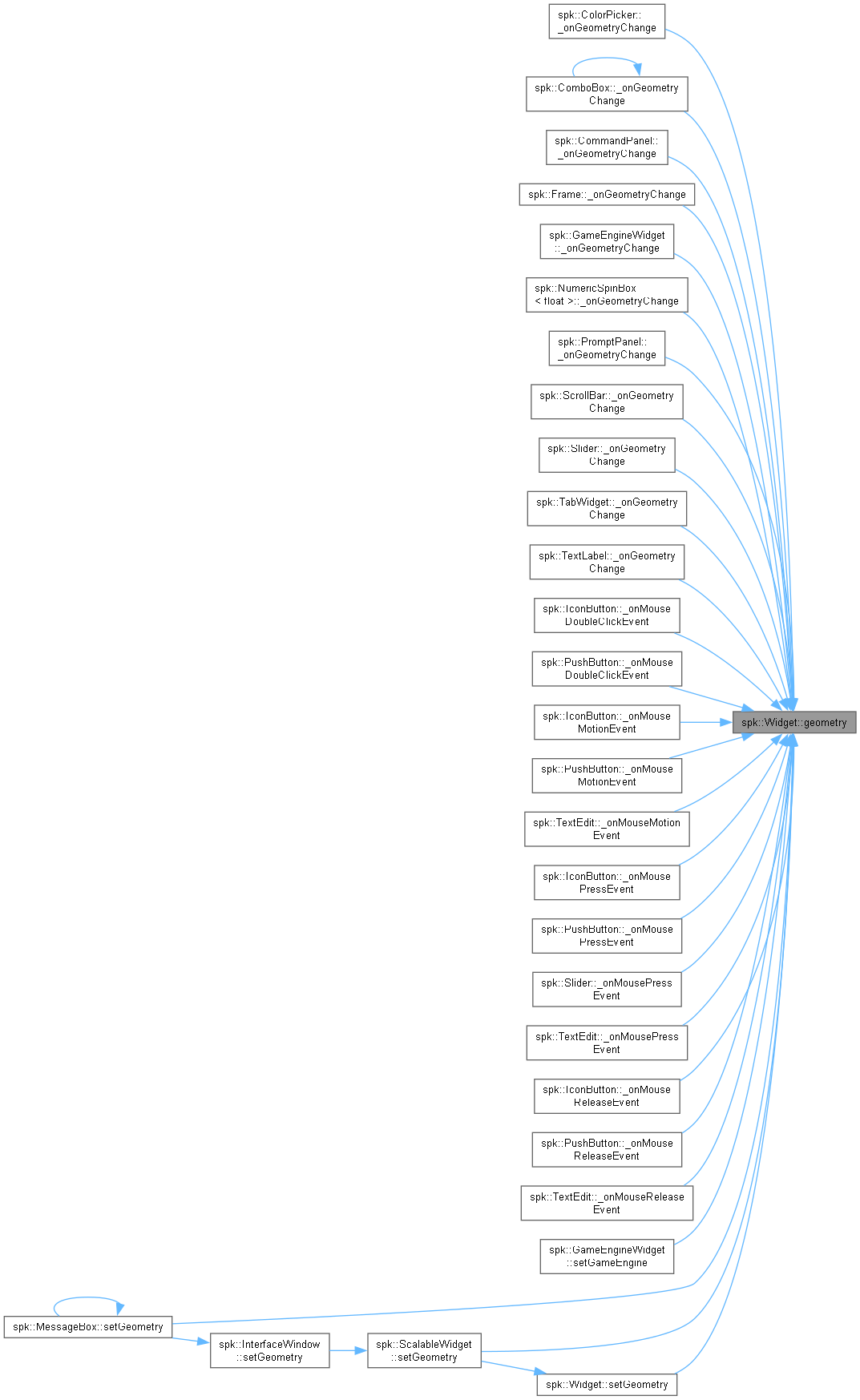

Here is the caller graph for this function:

◆ hasFocus()

bool spk::Widget::hasFocus ( FocusType p_focusType ) const

Checks if this widget currently owns a focus type.

Parameters

p_focusType Focus lane to test.

Returns: true when this widget owns the focus.

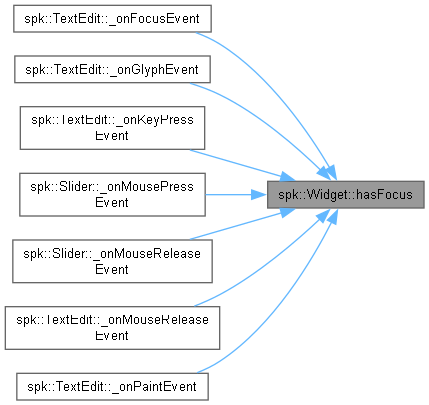

Here is the caller graph for this function:

◆ layer()

const float & spk::Widget::layer ( ) const

Current rendering layer of the widget.

Returns: Layer value used for ordering.

Here is the caller graph for this function:

◆ name()

const std::wstring & spk::Widget::name ( ) const

Retrieves the widget name.

Returns: Reference to the internal name string.

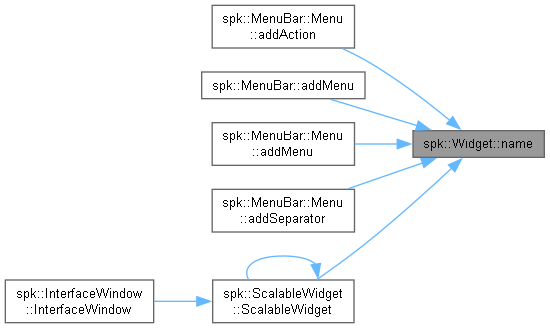

Here is the caller graph for this function:

◆ releaseFocus()

void spk::Widget::releaseFocus ( FocusType p_focusType )

Releases a previously acquired focus type.

Parameters

p_focusType Focus lane to free.

Exceptions

std::runtime_error When the widget does not own the focus.

Here is the caller graph for this function:

◆ setGeometry()

void spk::Widget::setGeometry ( const spk::Extend2D & p_geometry )

overridevirtual

Requests a specific viewport and scissor region for the widget.

Parameters

p_geometry Desired view region in parent coordinates.

Note: Updates internal ViewRegion immediately; view update callbacks are deferred to the render thread.

Implements spk::ResizableElement.

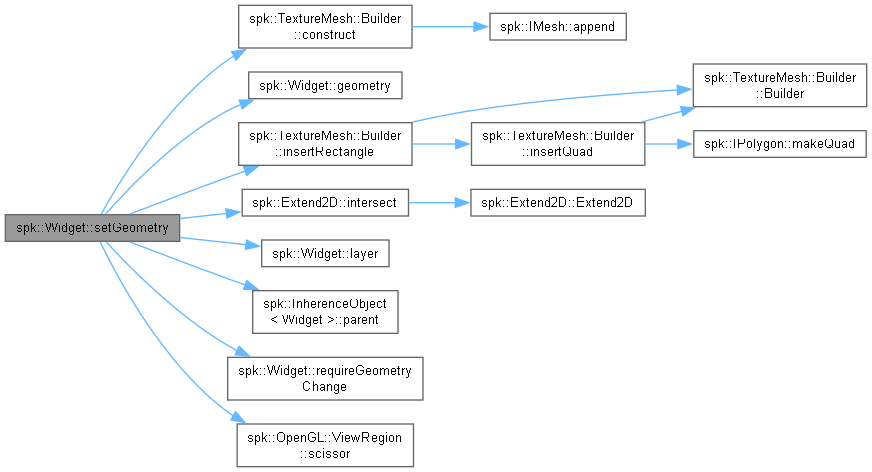

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setLayer()

void spk::Widget::setLayer ( const float & p_newLayer )

Updates the widget layer and propagates relative offsets to children.

Parameters

p_newLayer New layer value to apply.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setName()

void spk::Widget::setName ( const std::wstring & p_name )

Sets the widget name.

Parameters

p_name New label for the widget.

◆ takeFocus()

void spk::Widget::takeFocus ( FocusType p_focusType )

Grants this widget ownership of the requested focus type.

Parameters

p_focusType Focus lane to occupy.

Here is the caller graph for this function:

◆ viewRegion()

const spk::OpenGL::ViewRegion & spk::Widget::viewRegion ( ) const

Accesses the computed view region.

Returns: Current OpenGL view region used for rendering.

The documentation for this class was generated from the following files:

includes/structure/widget/spk_widget.hpp
srcs/structure/widget/spk_widget.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Widget()

Member Function Documentation

◆ _onEnterResizeModeEvent()

◆ _onExitResizeModeEvent()

◆ _onFocusEvent()

◆ _onFullScreenModeEvent()

◆ _onGeometryChange()

◆ _onGlyphEvent()

◆ _onKeyPressEvent()

◆ _onKeyReleaseEvent()

◆ _onMaximizedModeEvent()

◆ _onMouseDoubleClickEvent()

◆ _onMouseMotionEvent()

◆ _onMousePressEvent()

◆ _onMouseReleaseEvent()

◆ _onMouseWheelEvent()

◆ _onMoveEvent()

◆ _onPaintEvent()

◆ _onQuitEvent()

◆ _onResizeEvent()

◆ _onUpdateEvent()

◆ addChild()

◆ fbo()

◆ focusedWidget()

◆ frameBufferObject()

◆ geometry()

◆ hasFocus()

◆ layer()

◆ name()

◆ releaseFocus()

◆ setGeometry()

◆ setLayer()

◆ setName()

◆ takeFocus()

◆ viewRegion()
