spk::NumericSpinBox< TType > Class Template Reference

Numeric input widget with increment/decrement controls. More...

#include <spk_numeric_spin_box.hpp>

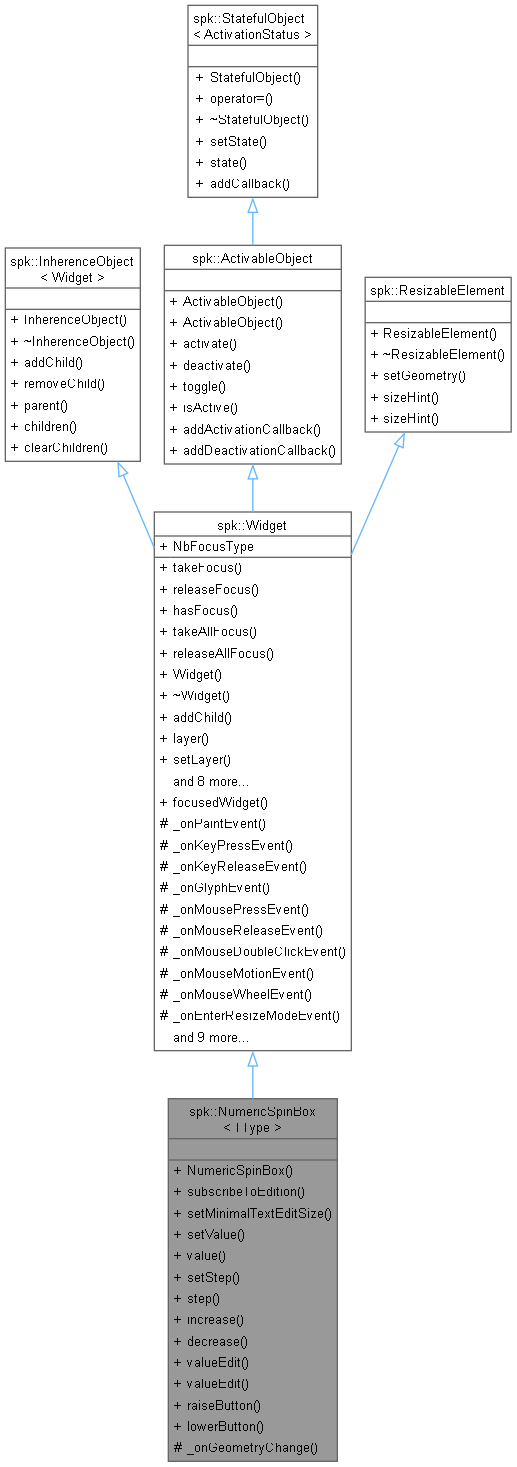

Inheritance diagram for spk::NumericSpinBox< TType >:

Collaboration diagram for spk::NumericSpinBox< TType >:

Public Types
using	value_type = TType
	Underlying numeric value type.
using	ValidationState = spk::TextEdit::ValidationState
	Validation state type for the text edit.
using	ValidationStatus = spk::TextEdit::ValidationStatus
	Validation status type for the text edit.
using	ValidationCallback = spk::TextEdit::ValidationCallback
	Validation callback type for the text edit.
using	EditionJob = spk::ObservableValue<value_type>::Job
	Edition job type for value changes.
using	EditionContract = spk::ObservableValue<value_type>::Contract
	Edition contract type for value changes.
using	ParseResult = spk::Expected<value_type, ValidationState>
	Parse result type for numeric text.
Public Types inherited from spk::Widget
enum class	FocusType { Keyboard = 0 , Mouse = 1 }
	Types of focus a widget can own.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Public Member Functions
	NumericSpinBox (const std::wstring &p_name, spk::Widget *p_parent)
	Builds a numeric spin box widget.
EditionContract	subscribeToEdition (const EditionJob &p_job)
	Subscribes to value edition notifications.
void	setMinimalTextEditSize (uint32_t p_minimalTextEditSize)
	Sets the minimal width of the text edit field.
void	setValue (const value_type &p_value)
	Sets the current numeric value.
const value_type &	value () const
	Returns the current numeric value.
void	setStep (const value_type &p_step)
	Sets the increment/decrement step.
const value_type &	step () const
	Returns the increment/decrement step.
void	increase ()
	Increases the value by the current step.
void	decrease ()
	Decreases the value by the current step.
TextEdit &	valueEdit ()
	Returns the value text edit.
const TextEdit &	valueEdit () const
	Returns the value text edit.
IconButton &	raiseButton ()
	Returns the increment button.
IconButton &	lowerButton ()
	Returns the decrement button.
Public Member Functions inherited from spk::Widget
void	takeFocus (FocusType p_focusType)
	Grants this widget ownership of the requested focus type.
void	releaseFocus (FocusType p_focusType)
	Releases a previously acquired focus type.
bool	hasFocus (FocusType p_focusType) const
	Checks if this widget currently owns a focus type.
void	takeAllFocus ()
	Acquires both keyboard and mouse focus.
void	releaseAllFocus ()
	Releases both keyboard and mouse focus types.
	Widget (const std::wstring &p_name, Widget *p_parent)
	Builds a widget optionally attached to a parent.
void	addChild (Widget *p_child) override
	Adds a child widget and sorts the hierarchy by layer.
const float &	layer () const
	Current rendering layer of the widget.
void	setLayer (const float &p_newLayer)
	Updates the widget layer and propagates relative offsets to children.
const std::wstring &	name () const
	Retrieves the widget name.
void	setName (const std::wstring &p_name)
	Sets the widget name.
void	setGeometry (const spk::Extend2D &p_geometry) override
	Requests a specific viewport and scissor region for the widget.
const spk::Extend2D &	geometry () const
	Returns the current widget geometry.
const spk::OpenGL::ViewRegion &	viewRegion () const
	Accesses the computed view region.
const spk::OpenGL::FrameBufferObject &	frameBufferObject () const
	Returns the frame buffer object used for widget rendering.
const spk::OpenGL::FrameBufferObject &	fbo () const
	Alias for frameBufferObject().
void	requireGeometryChange ()
	Marks the widget view region as needing recomputation.
Public Member Functions inherited from spk::InherenceObject< Widget >
virtual void	removeChild (Widget *p_child)
	Removes a child from this node.
Widget *	parent () const
	Returns the parent pointer.
virtual std::vector< Widget * > &	children ()
	Returns the children vector.
void	clearChildren ()
	Clears the children list and resets each child's parent pointer.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::ResizableElement
SizeHint &	sizeHint ()
	Returns mutable size hint data.
const SizeHint &	sizeHint () const
	Returns const size hint data.

Protected Member Functions
void	_onGeometryChange () override
	Updates layout geometry when size changes.
Protected Member Functions inherited from spk::Widget
virtual void	_onPaintEvent (spk::PaintEvent &p_event)
	Paint event hook for derived widgets.
virtual void	_onKeyPressEvent (spk::KeyPressEvent &p_event)
	Keyboard press handler for derived widgets.
virtual void	_onKeyReleaseEvent (spk::KeyReleaseEvent &p_event)
	Keyboard release handler for derived widgets.
virtual void	_onGlyphEvent (spk::GlyphEvent &p_event)
	Text glyph input handler for derived widgets.
virtual void	_onMousePressEvent (spk::MousePressEvent &p_event)
	Mouse button press handler for derived widgets.
virtual void	_onMouseReleaseEvent (spk::MouseReleaseEvent &p_event)
	Mouse button release handler for derived widgets.
virtual void	_onMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event)
	Mouse double click handler for derived widgets.
virtual void	_onMouseMotionEvent (spk::MouseMotionEvent &p_event)
	Mouse motion handler for derived widgets.
virtual void	_onMouseWheelEvent (spk::MouseWheelEvent &p_event)
	Mouse wheel handler for derived widgets.
virtual void	_onEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event)
	Callback for entering resize mode.
virtual void	_onResizeEvent (spk::ResizeEvent &p_event)
	Resize handling hook.
virtual void	_onExitResizeModeEvent (spk::ExitResizeModeEvent &p_event)
	Callback invoked when leaving resize mode.
virtual void	_onQuitEvent (spk::QuitEvent &p_event)
	Quit event handler hook.
virtual void	_onMoveEvent (spk::MoveEvent &p_event)
	Window move handler hook.
virtual void	_onFullScreenModeEvent (spk::FullScreenModeEvent &p_event)
	Full screen toggle handler hook.
virtual void	_onMaximizedModeEvent (spk::MaximizedModeEvent &p_event)
	Maximized mode change handler.
virtual void	_onFocusEvent (spk::FocusEvent &p_event)
	Focus change handler hook.
virtual void	_onUpdateEvent (spk::UpdateEvent &p_event)
	Frame update handler hook.

Additional Inherited Members
Static Public Member Functions inherited from spk::Widget
static Widget *	focusedWidget (FocusType p_focusType)
	Retrieves the widget currently owning a focus type.
Static Public Attributes inherited from spk::Widget
static const size_t	NbFocusType = 2
	Number of focus slots tracked at runtime.

Detailed Description

template<typename TType>
class spk::NumericSpinBox< TType >

Numeric input widget with increment/decrement controls.

Template Parameters

TType

Numeric value type.

spk::NumericSpinBox<int> spin(L"Value", parent);
spin.setValue(10);

Constructor & Destructor Documentation

NumericSpinBox()

template<typename TType>

spk::NumericSpinBox< TType >::NumericSpinBox ( const std::wstring & p_name, spk::Widget * p_parent )

inline

Builds a numeric spin box widget.

Parameters

p_name	Widget name.
p_parent	Parent widget.

Member Function Documentation

_onGeometryChange()

template<typename TType>

void spk::NumericSpinBox< TType >::_onGeometryChange ( )

inlineoverrideprotectedvirtual

Updates layout geometry when size changes.

Reimplemented from spk::Widget.

lowerButton()

template<typename TType>

IconButton & spk::NumericSpinBox< TType >::lowerButton ( )

inline

Returns the decrement button.

Returns

Decrement button reference.

raiseButton()

template<typename TType>

IconButton & spk::NumericSpinBox< TType >::raiseButton ( )

inline

Returns the increment button.

Returns

Increment button reference.

setMinimalTextEditSize()

template<typename TType>

void spk::NumericSpinBox< TType >::setMinimalTextEditSize ( uint32_t p_minimalTextEditSize )

inline

Sets the minimal width of the text edit field.

Parameters

p_minimalTextEditSize

Minimum width in pixels.

setStep()

template<typename TType>

void spk::NumericSpinBox< TType >::setStep ( const value_type & p_step )

inline

Sets the increment/decrement step.

Parameters

p_step

Step value.

setValue()

template<typename TType>

void spk::NumericSpinBox< TType >::setValue ( const value_type & p_value )

inline

Sets the current numeric value.

Parameters

p_value

Value to assign.

Here is the caller graph for this function:

step()

template<typename TType>

const value_type & spk::NumericSpinBox< TType >::step ( ) const

inline

Returns the increment/decrement step.

Returns

Step value.

subscribeToEdition()

template<typename TType>

EditionContract spk::NumericSpinBox< TType >::subscribeToEdition ( const EditionJob & p_job )

inline

Subscribes to value edition notifications.

Parameters

p_job

Callback invoked on value change.

Returns

Subscription contract.

value()

template<typename TType>

const value_type & spk::NumericSpinBox< TType >::value ( ) const

inline

Returns the current numeric value.

Returns

Value reference.

valueEdit() [1/2]

template<typename TType>

TextEdit & spk::NumericSpinBox< TType >::valueEdit ( )

inline

Returns the value text edit.

Returns

Mutable text edit reference.

valueEdit() [2/2]

template<typename TType>

const TextEdit & spk::NumericSpinBox< TType >::valueEdit ( ) const

inline

Returns the value text edit.

Returns

Const text edit reference.

---

The documentation for this class was generated from the following file:

• includes/structure/widget/spk_numeric_spin_box.hpp
