spk::OpenGL::FrameBufferObject Class Reference

RAII wrapper for an OpenGL framebuffer with typed attachments. More...

#include <spk_frame_buffer_object.hpp>

Inheritance diagram for spk::OpenGL::FrameBufferObject:

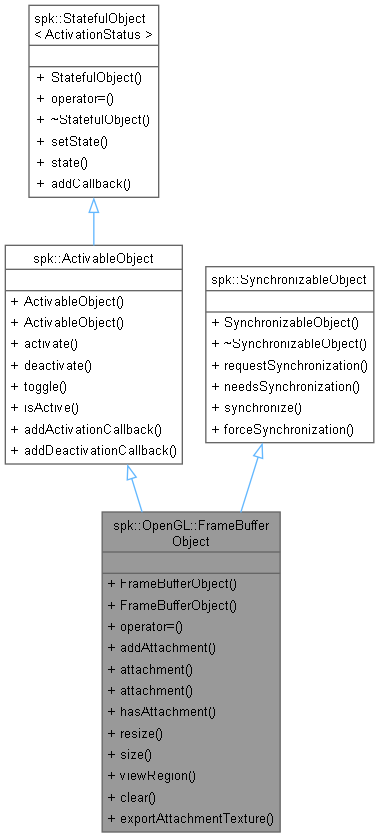

Collaboration diagram for spk::OpenGL::FrameBufferObject:

Classes
class	Attachment
	Texture attachment with basic format presets for FBOs. More...

Public Member Functions
	FrameBufferObject ()
	Constructs an empty framebuffer.
	FrameBufferObject (const FrameBufferObject &p_other)
	Copies framebuffer state, attachments, and size from another instance.
FrameBufferObject &	operator= (const FrameBufferObject &p_other)
	Assigns framebuffer content from another instance.
void	addAttachment (const GLuint &p_index, Attachment::Type p_type)
	Adds an attachment at the given color index.
Attachment &	attachment (const GLuint &p_index)
	Accesses an attachment by index.
const Attachment &	attachment (const GLuint &p_index) const
	Accesses an attachment by index.
bool	hasAttachment (const GLuint &p_index) const
	Checks if an attachment exists.
void	resize (const spk::Vector2UInt &p_size)
	Resizes all attachments and viewport to the given size.
const spk::Vector2UInt &	size () const
	Returns current framebuffer size.
const spk::OpenGL::ViewRegion &	viewRegion () const
	Returns the view region associated with this framebuffer.
void	clear (const spk::Color &p_color, const ViewRegion::ClearMask &p_clearMask)
	Clears the framebuffer with the given color and mask.
spk::OpenGL::TextureObject	exportAttachmentTexture (GLuint p_index)
	Exports an attachment texture by value (copy).
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::SynchronizableObject
void	requestSynchronization () noexcept
	Marks the object as needing synchronization.
bool	needsSynchronization () const noexcept
	Checks if synchronization is pending.
void	synchronize ()
	Performs synchronization if requested.
void	forceSynchronization ()
	Forces synchronization regardless of current flag.

Additional Inherited Members
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Detailed Description

RAII wrapper for an OpenGL framebuffer with typed attachments.

Constructor & Destructor Documentation

FrameBufferObject()

spk::OpenGL::FrameBufferObject::FrameBufferObject

(

const FrameBufferObject &

p_other

)

Copies framebuffer state, attachments, and size from another instance.

Parameters

p_other

Framebuffer to duplicate.

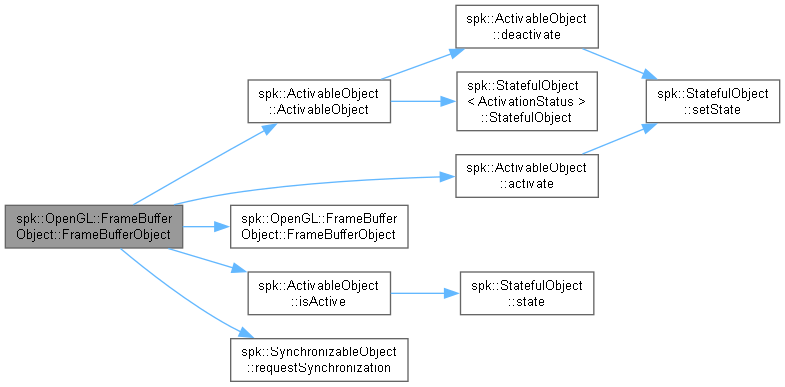

Here is the call graph for this function:

Member Function Documentation

addAttachment()

void spk::OpenGL::FrameBufferObject::addAttachment	(	const GLuint &	p_index,
		Attachment::Type	p_type )

Adds an attachment at the given color index.

Parameters

p_index	Attachment index (color slot).
p_type	Attachment type/format.

Here is the call graph for this function:

attachment() [1/2]

FrameBufferObject::Attachment & spk::OpenGL::FrameBufferObject::attachment

(

const GLuint &

p_index

)

Accesses an attachment by index.

Parameters

p_index

Attachment index.

Returns

Mutable attachment.

Here is the caller graph for this function:

attachment() [2/2]

const FrameBufferObject::Attachment & spk::OpenGL::FrameBufferObject::attachment

(

const GLuint &

p_index

)

const

Accesses an attachment by index.

Parameters

p_index

Attachment index.

Returns

Const attachment.

clear()

void spk::OpenGL::FrameBufferObject::clear	(	const spk::Color &	p_color,
		const ViewRegion::ClearMask &	p_clearMask )

Clears the framebuffer with the given color and mask.

Parameters

p_color	Clear color.
p_clearMask	Buffer mask.

Here is the call graph for this function:

exportAttachmentTexture()

spk::OpenGL::TextureObject spk::OpenGL::FrameBufferObject::exportAttachmentTexture

(

GLuint

p_index

)

Exports an attachment texture by value (copy).

Parameters

p_index

Attachment index.

Returns

Texture copy.

Here is the call graph for this function:

hasAttachment()

bool spk::OpenGL::FrameBufferObject::hasAttachment

(

const GLuint &

p_index

)

const

Checks if an attachment exists.

Parameters

p_index

Attachment index.

Returns

true when present.

operator=()

FrameBufferObject & spk::OpenGL::FrameBufferObject::operator=

(

const FrameBufferObject &

p_other

)

Assigns framebuffer content from another instance.

Parameters

p_other

Framebuffer to copy from.

Returns

Reference to this framebuffer.

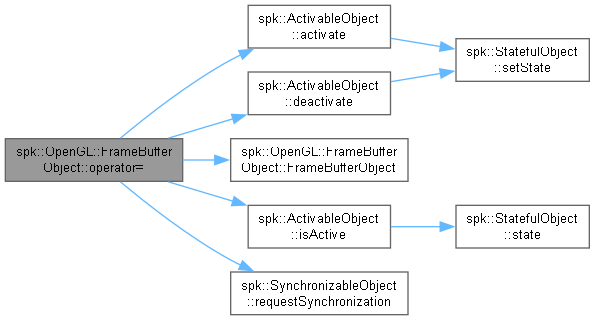

Here is the call graph for this function:

resize()

void spk::OpenGL::FrameBufferObject::resize

(

const spk::Vector2UInt &

p_size

)

Resizes all attachments and viewport to the given size.

Parameters

p_size

New dimensions.

Here is the call graph for this function:

size()

const spk::Vector2UInt & spk::OpenGL::FrameBufferObject::size

(

)

const

Returns current framebuffer size.

Returns

Dimensions.

viewRegion()

const spk::OpenGL::ViewRegion & spk::OpenGL::FrameBufferObject::viewRegion

(

)

const

Returns the view region associated with this framebuffer.

Returns

Const reference to the view region.

---

The documentation for this class was generated from the following files:

• includes/structure/opengl/spk_frame_buffer_object.hpp
• srcs/structure/opengl/spk_frame_buffer_object.cpp
