CPU-staged 2D texture with activation and parameter controls. More...

#include <spk_texture_object.hpp>

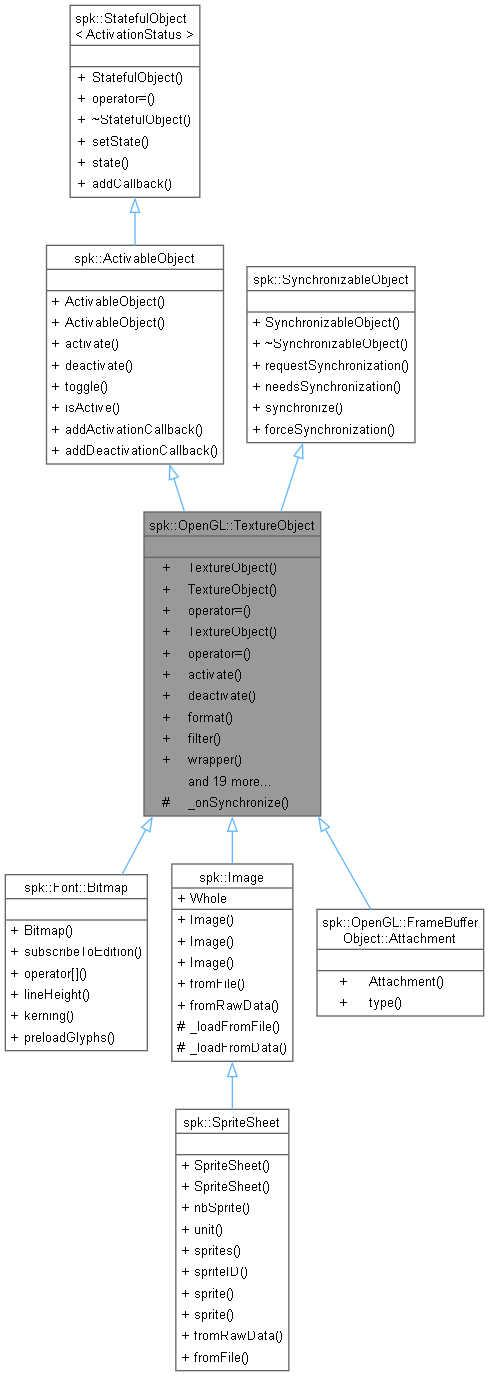

Inheritance diagram for spk::OpenGL::TextureObject:

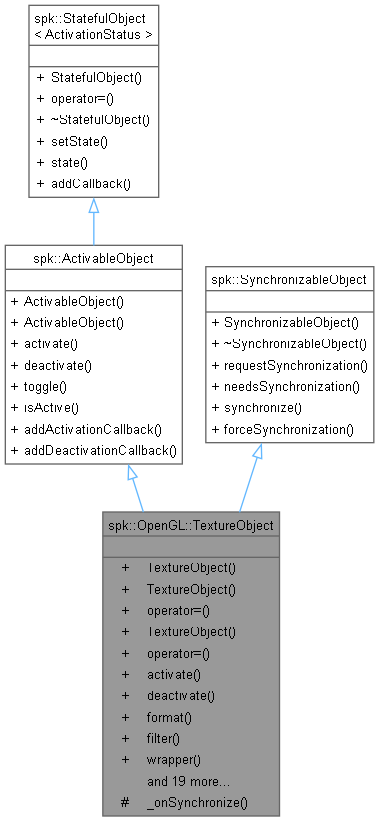

Collaboration diagram for spk::OpenGL::TextureObject:

Classes
struct	Filter
	Filtering modes applied on minification and magnification. More...
struct	Wrapper
	Wrapping policy along each texture axis. More...

Public Types
enum class	Format : GLenum { RGB = GL_RGB , RGBA = GL_RGBA , BGR = GL_BGR , BGRA = GL_BGRA , GreyLevel = GL_RED , DualChannel = GL_RG , DepthComponent = GL_DEPTH_COMPONENT , DepthStencil = GL_DEPTH_STENCIL , Error = GL_NONE }
	Supported GPU pixel formats.
enum class	Filtering : GLenum { Nearest = GL_NEAREST , Linear = GL_LINEAR }
	Texture sampling algorithms for minification/magnification.
enum class	Wrap : GLenum { Repeat = GL_REPEAT , ClampToEdge = GL_CLAMP_TO_EDGE , ClampToBorder = GL_CLAMP_TO_BORDER }
	Texture coordinate wrapping strategies.
using	Mipmap = spk::ActivationStatus
	Indicates whether mipmaps are active.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Public Member Functions
	TextureObject (Format p_format=Format::RGBA, Filter p_filter={Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper={Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)
	Constructs a texture with format, filtering, and wrapping options.
	TextureObject (const TextureObject &p_other)
	Copy-constructs a texture object including CPU-side data.
TextureObject &	operator= (const TextureObject &p_other)
	Copy-assigns a texture object including CPU-side data.
	TextureObject (TextureObject &&p_other) noexcept
	Move-constructs a texture object transferring ownership.
TextureObject &	operator= (TextureObject &&p_other) noexcept
	Move-assigns a texture object transferring ownership.
void	activate () const
	Activates this texture for rendering.
void	deactivate () const
	Deactivates this texture after rendering.
Format	format () const
	Gets the current texture format.
Filter	filter () const
	Gets filtering parameters.
Wrapper	wrapper () const
	Gets wrapping parameters.
Mipmap	mipmap () const
	Gets mipmap activation state.
void	setFormat (Format p_format)
	Sets the texture format (affects upload interpretation).
void	setFiltering (Filter p_filter)
	Sets min/mag filtering together.
void	setFiltering (Filtering p_minFilter, Filtering p_magFilter)
	Sets minification and magnification filters independently.
void	setWrap (Wrapper p_wrapper)
	Sets wrapping for both axes.
void	setWrap (Wrap p_wrapS, Wrap p_wrapT)
	Sets wrapping for each axis independently.
void	setMipmap (Mipmap p_mipmap)
	Sets mipmap activation state.
spk::Vector2UInt	size () const
	Returns texture dimensions.
size_t	sizeAsBytes () const
	Returns CPU data size in bytes.
GLuint	id () const
	Returns GL texture id, creating if needed.
void	setData (const uint8_t *p_data, const spk::Vector2UInt &p_size, Format p_format=Format::RGBA)
	Uploads pixel data from raw pointer.
void	setData (std::vector< uint8_t > p_data, const spk::Vector2UInt &p_size, Format p_format=Format::RGBA)
	Uploads pixel data by move.
void	clearData ()
	Clears CPU data and marks for sync.
void	resize (const spk::Vector2UInt &p_size)
	Resizes CPU data and marks for sync.
std::vector< uint8_t > &	data ()
	Gets CPU-side pixel data.
const std::vector< uint8_t > &	data () const
	Gets CPU-side pixel data.
void	flip (const spk::Orientation &p_orientation)
	Flips stored pixel data along the given orientation.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::SynchronizableObject
void	requestSynchronization () noexcept
	Marks the object as needing synchronization.
bool	needsSynchronization () const noexcept
	Checks if synchronization is pending.
void	synchronize ()
	Performs synchronization if requested.
void	forceSynchronization ()
	Forces synchronization regardless of current flag.

Protected Member Functions
void	_onSynchronize () override
	Synchronizes CPU-side data with the GPU texture.

Detailed Description

CPU-staged 2D texture with activation and parameter controls.

Constructor & Destructor Documentation

◆ TextureObject() [1/3]

spk::OpenGL::TextureObject::TextureObject	(	Format	p_format = Format::RGBA,
		Filter	p_filter = {Filtering::Linear, Filtering::Linear},
		Wrapper	p_wrapper = {Wrap::Repeat, Wrap::Repeat},
		Mipmap	p_mipmap = Mipmap::Activated )

Constructs a texture with format, filtering, and wrapping options.

Parameters

p_format	Pixel format of the texture storage.
p_filter	Filtering configuration for minification and magnification.
p_wrapper	Wrapping modes for the S and T axes.
p_mipmap	Whether mipmaps are generated and activated.

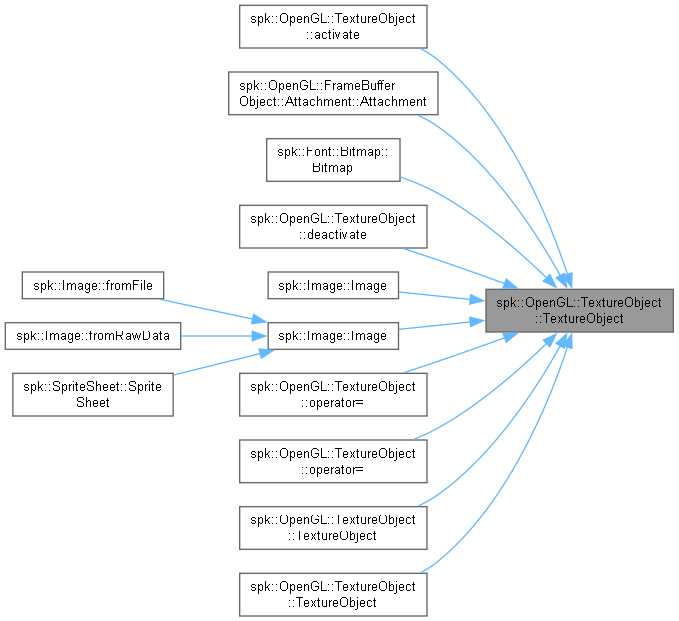

Here is the caller graph for this function:

◆ TextureObject() [2/3]

spk::OpenGL::TextureObject::TextureObject ( const TextureObject & p_other )

Copy-constructs a texture object including CPU-side data.

Parameters

p_other Source texture.

Here is the call graph for this function:

◆ TextureObject() [3/3]

spk::OpenGL::TextureObject::TextureObject ( TextureObject && p_other )

noexcept

Move-constructs a texture object transferring ownership.

Parameters

p_other Source texture to move from.

Here is the call graph for this function:

Member Function Documentation

◆ _onSynchronize()

void spk::OpenGL::TextureObject::_onSynchronize ( )

overrideprotectedvirtual

Synchronizes CPU-side data with the GPU texture.

Implements spk::SynchronizableObject.

◆ data() [1/2]

std::vector< uint8_t > & spk::OpenGL::TextureObject::data ( )

Gets CPU-side pixel data.

Returns: Const reference to bytes.

◆ data() [2/2]

const std::vector< uint8_t > & spk::OpenGL::TextureObject::data ( ) const

Gets CPU-side pixel data.

Returns: Const reference to bytes.

◆ filter()

TextureObject::Filter spk::OpenGL::TextureObject::filter ( ) const

Gets filtering parameters.

Returns: Active min/mag filtering pair.

◆ flip()

void spk::OpenGL::TextureObject::flip ( const spk::Orientation & p_orientation )

Flips stored pixel data along the given orientation.

Parameters

p_orientation Orientation to flip.

Here is the call graph for this function:

◆ format()

TextureObject::Format spk::OpenGL::TextureObject::format ( ) const

Gets the current texture format.

Returns: Format used to interpret stored pixels.

Here is the caller graph for this function:

◆ id()

GLuint spk::OpenGL::TextureObject::id ( ) const

Returns GL texture id, creating if needed.

Returns: OpenGL texture handle associated with this object.

◆ mipmap()

TextureObject::Mipmap spk::OpenGL::TextureObject::mipmap ( ) const

Gets mipmap activation state.

Returns: ActivationStatus indicating mipmap usage.

◆ operator=() [1/2]

TextureObject & spk::OpenGL::TextureObject::operator= ( const TextureObject & p_other )

Copy-assigns a texture object including CPU-side data.

Parameters

p_other Source texture.

Returns: *this after assignment.

Here is the call graph for this function:

◆ operator=() [2/2]

TextureObject & spk::OpenGL::TextureObject::operator= ( TextureObject && p_other )

noexcept

Move-assigns a texture object transferring ownership.

Parameters

p_other Source texture to move from.

Returns: *this after move assignment.

Here is the call graph for this function:

◆ resize()

void spk::OpenGL::TextureObject::resize ( const spk::Vector2UInt & p_size )

Resizes CPU data and marks for sync.

Parameters

p_size New dimensions.

Here is the call graph for this function:

◆ setData() [1/2]

void spk::OpenGL::TextureObject::setData	(	const uint8_t *	p_data,
		const spk::Vector2UInt &	p_size,
		Format	p_format = Format::RGBA )

Uploads pixel data from raw pointer.

Parameters

p_data	Source pointer.
p_size	Dimensions.
p_format	Optional source format override.

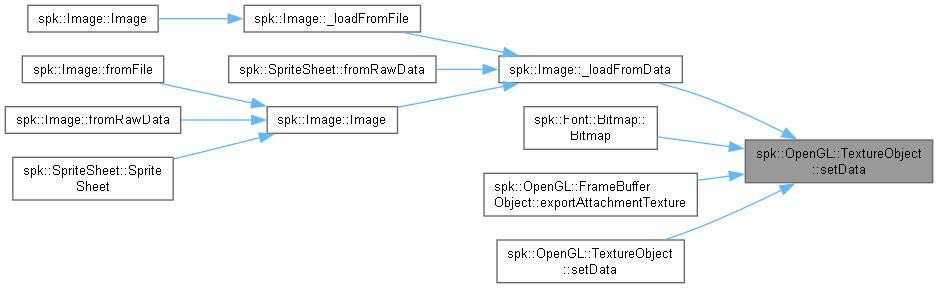

Here is the caller graph for this function:

◆ setData() [2/2]

void spk::OpenGL::TextureObject::setData	(	std::vector< uint8_t >	p_data,
		const spk::Vector2UInt &	p_size,
		Format	p_format = Format::RGBA )

Uploads pixel data by move.

Parameters

p_data	Pixel bytes.
p_size	Dimensions.
p_format	Optional source format override.

Here is the call graph for this function:

◆ setFiltering() [1/2]

void spk::OpenGL::TextureObject::setFiltering ( Filter p_filter )

Sets min/mag filtering together.

Parameters

p_filter Filtering pair to apply.

Here is the caller graph for this function:

◆ setFiltering() [2/2]

void spk::OpenGL::TextureObject::setFiltering	(	Filtering	p_minFilter,
		Filtering	p_magFilter )

Sets minification and magnification filters independently.

Parameters

p_minFilter	Filtering used when shrinking textures.
p_magFilter	Filtering used when enlarging textures.

Here is the call graph for this function:

◆ setFormat()

void spk::OpenGL::TextureObject::setFormat ( Format p_format )

Sets the texture format (affects upload interpretation).

Parameters

p_format New pixel format to apply.

Here is the call graph for this function:

◆ setMipmap()

void spk::OpenGL::TextureObject::setMipmap ( Mipmap p_mipmap )

Sets mipmap activation state.

Parameters

p_mipmap Activation flag.

Here is the caller graph for this function:

◆ setWrap() [1/2]

void spk::OpenGL::TextureObject::setWrap	(	Wrap	p_wrapS,
		Wrap	p_wrapT )

Sets wrapping for each axis independently.

Parameters

p_wrapS	Horizontal wrapping mode.
p_wrapT	Vertical wrapping mode.

Here is the call graph for this function:

◆ setWrap() [2/2]

void spk::OpenGL::TextureObject::setWrap ( Wrapper p_wrapper )

Sets wrapping for both axes.

Parameters

p_wrapper Wrap configuration for S and T axes.

Here is the caller graph for this function:

◆ size()

spk::Vector2UInt spk::OpenGL::TextureObject::size ( ) const

Returns texture dimensions.

Returns: Width and height of the stored pixel buffer.

Here is the caller graph for this function:

◆ sizeAsBytes()

size_t spk::OpenGL::TextureObject::sizeAsBytes ( ) const

Returns CPU data size in bytes.

Returns: Number of bytes allocated for pixel data.

◆ wrapper()

TextureObject::Wrapper spk::OpenGL::TextureObject::wrapper ( ) const

Gets wrapping parameters.

Returns: Current wrapping configuration.

The documentation for this class was generated from the following files:

includes/structure/opengl/spk_texture_object.hpp
srcs/structure/opengl/spk_texture_object.cpp

Classes

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ TextureObject() [1/3]

◆ TextureObject() [2/3]

◆ TextureObject() [3/3]

Member Function Documentation

◆ _onSynchronize()

◆ data() [1/2]

◆ data() [2/2]

◆ filter()

◆ flip()

◆ format()

◆ id()

◆ mipmap()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ resize()

◆ setData() [1/2]

◆ setData() [2/2]

◆ setFiltering() [1/2]

◆ setFiltering() [2/2]

◆ setFormat()

◆ setMipmap()

◆ setWrap() [1/2]

◆ setWrap() [2/2]

◆ size()

◆ sizeAsBytes()

◆ wrapper()
