Editable text field with validation and cursor handling. More...

#include <spk_text_edit.hpp>

Inheritance diagram for spk::TextEdit:

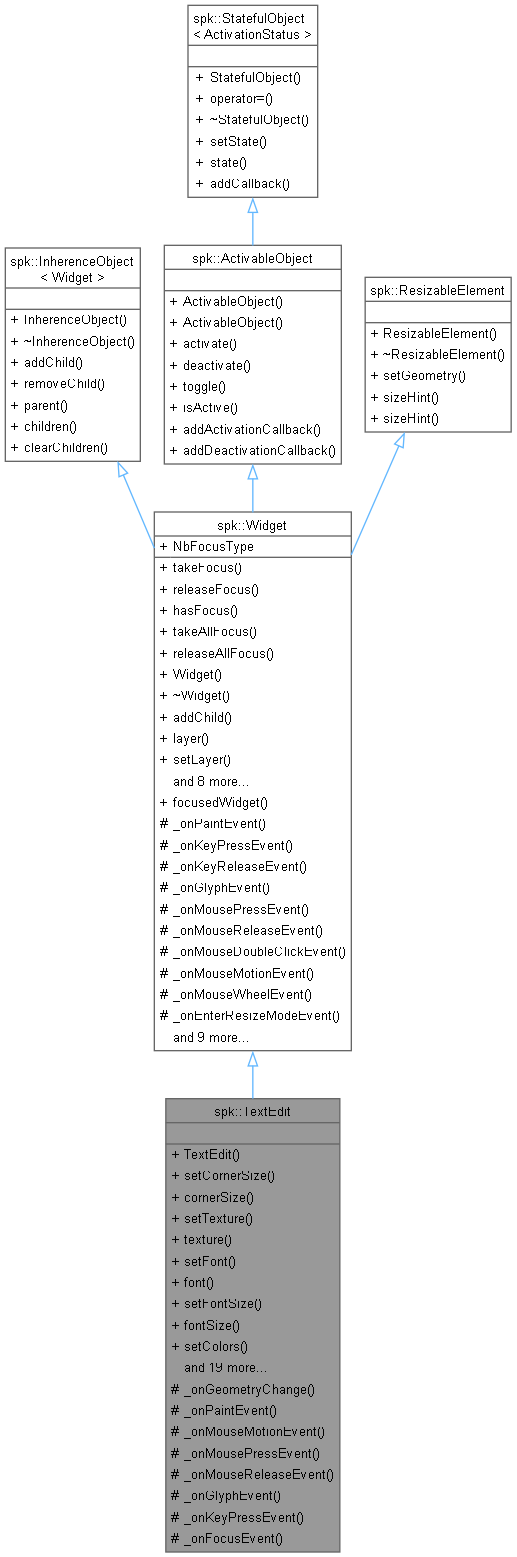

Collaboration diagram for spk::TextEdit:

Public Types
enum class	ValidationState { Valid , Invalid , Undefined }
	Validation state of the text content.
using	ValidationStatus = spk::TaskResult<ValidationState>
	Validation status result type.
using	ValidationCallback = std::function<ValidationStatus(const std::wstring &)>
	Validation callback signature.
using	EditionContract = spk::ObservableValue<std::wstring>::Contract
	Edition contract type for text changes.
using	EditionJob = spk::ObservableValue<std::wstring>::Job
	Edition job type for text changes.
Public Types inherited from spk::Widget
enum class	FocusType { Keyboard = 0 , Mouse = 1 }
	Types of focus a widget can own.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Public Member Functions
	TextEdit (const std::wstring &p_name, spk::Widget *p_parent)
	Builds a text edit widget.
void	setCornerSize (const spk::Vector2UInt &p_cornerSize)
	Sets background corner size.
const spk::Vector2UInt &	cornerSize () const
	Returns background corner size.
void	setTexture (const spk::SpriteSheet *p_spriteSheet)
	Sets the background texture.
const spk::SpriteSheet *	texture () const
	Returns the background texture.
void	setFont (spk::Font *p_font)
	Sets the font used for text rendering.
spk::Font *	font () const
	Returns the font used for text rendering.
void	setFontSize (const spk::Font::Size &p_size)
	Sets the font size used for text rendering.
const spk::Font::Size &	fontSize () const
	Returns the font size used for text rendering.
void	setColors (const spk::Color &p_glyphColor, const spk::Color &p_outlineColor)
	Sets glyph and outline colors.
const spk::Color &	glyphColor () const
	Returns the glyph color.
const spk::Color &	outlineColor () const
	Returns the outline color.
void	setPlaceholder (const std::wstring &p_placeholder)
	Sets the placeholder text.
const std::wstring &	placeholder () const
	Returns the placeholder text.
void	setValidationCallback (ValidationCallback p_callback)
	Sets the validation callback.
const ValidationCallback &	validationCallback () const
	Returns the validation callback.
ValidationStatus	checkTextValidity (const std::wstring &p_text) const
	Checks text validity with the current callback.
const std::wstring &	text () const
	Returns the current text.
ValidationStatus	setText (const std::wstring &p_text)
	Sets the text content.
EditionContract	subscribeToEdition (const EditionJob &p_job)
	Subscribes to text edition notifications.
void	setAlignment (HorizontalAlignment p_horizontalAlignment, VerticalAlignment p_verticalAlignment)
	Sets text alignment.
void	placeCursor (size_t p_position)
	Places the cursor at a position.
void	moveCursor (int p_delta)
	Moves the cursor by a delta.
size_t	cursorPosition () const
	Returns the cursor position.
void	clear ()
	Clears the text content.
void	setObscured (bool p_obscured)
	Enables or disables obscured rendering.
bool	obscured () const
	Returns whether text is obscured.
void	setCursorBlinkDuration (const spk::Duration &p_duration)
	Sets the cursor blink duration.
const spk::Duration &	cursorBlinkDuration () const
	Returns the cursor blink duration.
Public Member Functions inherited from spk::Widget
void	takeFocus (FocusType p_focusType)
	Grants this widget ownership of the requested focus type.
void	releaseFocus (FocusType p_focusType)
	Releases a previously acquired focus type.
bool	hasFocus (FocusType p_focusType) const
	Checks if this widget currently owns a focus type.
void	takeAllFocus ()
	Acquires both keyboard and mouse focus.
void	releaseAllFocus ()
	Releases both keyboard and mouse focus types.
	Widget (const std::wstring &p_name, Widget *p_parent)
	Builds a widget optionally attached to a parent.
void	addChild (Widget *p_child) override
	Adds a child widget and sorts the hierarchy by layer.
const float &	layer () const
	Current rendering layer of the widget.
void	setLayer (const float &p_newLayer)
	Updates the widget layer and propagates relative offsets to children.
const std::wstring &	name () const
	Retrieves the widget name.
void	setName (const std::wstring &p_name)
	Sets the widget name.
void	setGeometry (const spk::Extend2D &p_geometry) override
	Requests a specific viewport and scissor region for the widget.
const spk::Extend2D &	geometry () const
	Returns the current widget geometry.
const spk::OpenGL::ViewRegion &	viewRegion () const
	Accesses the computed view region.
const spk::OpenGL::FrameBufferObject &	frameBufferObject () const
	Returns the frame buffer object used for widget rendering.
const spk::OpenGL::FrameBufferObject &	fbo () const
	Alias for frameBufferObject().
void	requireGeometryChange ()
	Marks the widget view region as needing recomputation.
Public Member Functions inherited from spk::InherenceObject< Widget >
virtual void	removeChild (Widget *p_child)
	Removes a child from this node.
Widget *	parent () const
	Returns the parent pointer.
virtual std::vector< Widget * > &	children ()
	Returns the children vector.
void	clearChildren ()
	Clears the children list and resets each child's parent pointer.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::ResizableElement
SizeHint &	sizeHint ()
	Returns mutable size hint data.
const SizeHint &	sizeHint () const
	Returns const size hint data.

Protected Member Functions
void	_onGeometryChange () override
	Updates layout when geometry changes.
void	_onPaintEvent (spk::PaintEvent &p_event) override
	Paints the text edit visuals.
void	_onMouseMotionEvent (spk::MouseMotionEvent &p_event) override
	Handles mouse motion events.
void	_onMousePressEvent (spk::MousePressEvent &p_event) override
	Handles mouse press events.
void	_onMouseReleaseEvent (spk::MouseReleaseEvent &p_event) override
	Handles mouse release events.
void	_onGlyphEvent (spk::GlyphEvent &p_event) override
	Handles glyph input events.
void	_onKeyPressEvent (spk::KeyPressEvent &p_event) override
	Handles key press events.
void	_onFocusEvent (spk::FocusEvent &p_event) override
	Handles focus events.
Protected Member Functions inherited from spk::Widget
virtual void	_onKeyReleaseEvent (spk::KeyReleaseEvent &p_event)
	Keyboard release handler for derived widgets.
virtual void	_onMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event)
	Mouse double click handler for derived widgets.
virtual void	_onMouseWheelEvent (spk::MouseWheelEvent &p_event)
	Mouse wheel handler for derived widgets.
virtual void	_onEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event)
	Callback for entering resize mode.
virtual void	_onResizeEvent (spk::ResizeEvent &p_event)
	Resize handling hook.
virtual void	_onExitResizeModeEvent (spk::ExitResizeModeEvent &p_event)
	Callback invoked when leaving resize mode.
virtual void	_onQuitEvent (spk::QuitEvent &p_event)
	Quit event handler hook.
virtual void	_onMoveEvent (spk::MoveEvent &p_event)
	Window move handler hook.
virtual void	_onFullScreenModeEvent (spk::FullScreenModeEvent &p_event)
	Full screen toggle handler hook.
virtual void	_onMaximizedModeEvent (spk::MaximizedModeEvent &p_event)
	Maximized mode change handler.
virtual void	_onUpdateEvent (spk::UpdateEvent &p_event)
	Frame update handler hook.

Additional Inherited Members
Static Public Member Functions inherited from spk::Widget
static Widget *	focusedWidget (FocusType p_focusType)
	Retrieves the widget currently owning a focus type.
Static Public Attributes inherited from spk::Widget
static const size_t	NbFocusType = 2
	Number of focus slots tracked at runtime.

Detailed Description

Editable text field with validation and cursor handling.

spk::TextEdit edit(L"Input", parent);

edit.setPlaceholder(L"Type...");

spk::InherenceObject< Widget >::parent

Widget * parent() const

Definition spk_inherence_object.hpp:85

spk::TextEdit

Editable text field with validation and cursor handling.

Definition spk_text_edit.hpp:29

Constructor & Destructor Documentation

◆ TextEdit()

spk::TextEdit::TextEdit	(	const std::wstring &	p_name,
		spk::Widget *	p_parent )

Builds a text edit widget.

Parameters

p_name	Widget name.
p_parent	Parent widget.

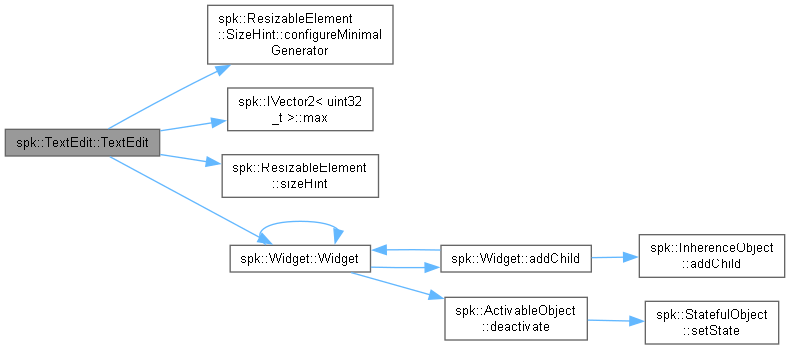

Here is the call graph for this function:

Member Function Documentation

◆ _onFocusEvent()

void spk::TextEdit::_onFocusEvent ( spk::FocusEvent & p_event )

overrideprotectedvirtual

Handles focus events.

Parameters

p_event Focus event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onGeometryChange()

void spk::TextEdit::_onGeometryChange ( )

overrideprotectedvirtual

Updates layout when geometry changes.

Reimplemented from spk::Widget.

◆ _onGlyphEvent()

void spk::TextEdit::_onGlyphEvent ( spk::GlyphEvent & p_event )

overrideprotectedvirtual

Handles glyph input events.

Parameters

p_event Glyph event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onKeyPressEvent()

void spk::TextEdit::_onKeyPressEvent ( spk::KeyPressEvent & p_event )

overrideprotectedvirtual

Handles key press events.

Parameters

p_event Key press event payload.

Reimplemented from spk::Widget.

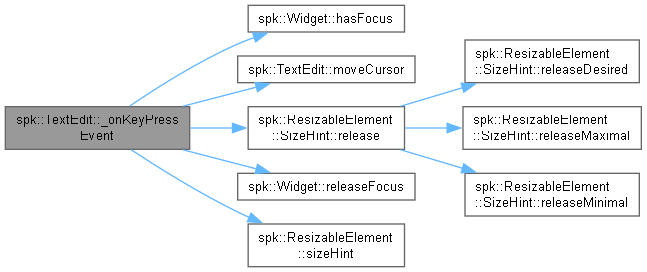

Here is the call graph for this function:

◆ _onMouseMotionEvent()

void spk::TextEdit::_onMouseMotionEvent ( spk::MouseMotionEvent & p_event )

overrideprotectedvirtual

Handles mouse motion events.

Parameters

p_event Mouse motion event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onMousePressEvent()

void spk::TextEdit::_onMousePressEvent ( spk::MousePressEvent & p_event )

overrideprotectedvirtual

Handles mouse press events.

Parameters

p_event Mouse press event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onMouseReleaseEvent()

void spk::TextEdit::_onMouseReleaseEvent ( spk::MouseReleaseEvent & p_event )

overrideprotectedvirtual

Handles mouse release events.

Parameters

p_event Mouse release event payload.

Reimplemented from spk::Widget.

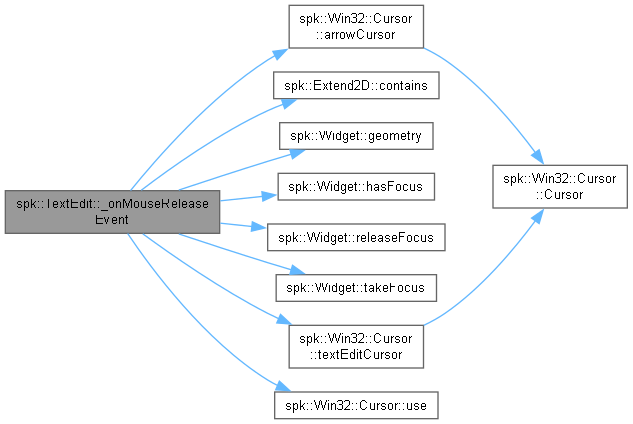

Here is the call graph for this function:

◆ _onPaintEvent()

void spk::TextEdit::_onPaintEvent ( spk::PaintEvent & p_event )

overrideprotectedvirtual

Paints the text edit visuals.

Parameters

p_event Paint event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ checkTextValidity()

TextEdit::ValidationStatus spk::TextEdit::checkTextValidity ( const std::wstring & p_text ) const

Checks text validity with the current callback.

Parameters

p_text Text to validate.

Returns: Validation status.

◆ cornerSize()

const spk::Vector2UInt & spk::TextEdit::cornerSize ( ) const

Returns background corner size.

Returns: Corner size in pixels.

◆ cursorBlinkDuration()

const spk::Duration & spk::TextEdit::cursorBlinkDuration ( ) const

Returns the cursor blink duration.

Returns: Blink duration.

◆ cursorPosition()

size_t spk::TextEdit::cursorPosition ( ) const

Returns the cursor position.

Returns: Cursor position.

◆ font()

spk::Font * spk::TextEdit::font ( ) const

Returns the font used for text rendering.

Returns: Font pointer.

◆ fontSize()

const spk::Font::Size & spk::TextEdit::fontSize ( ) const

Returns the font size used for text rendering.

Returns: Font size.

◆ glyphColor()

const spk::Color & spk::TextEdit::glyphColor ( ) const

Returns the glyph color.

Returns: Glyph color.

◆ moveCursor()

void spk::TextEdit::moveCursor ( int p_delta )

Moves the cursor by a delta.

Parameters

p_delta Delta amount.

Here is the caller graph for this function:

◆ obscured()

bool spk::TextEdit::obscured ( ) const

Returns whether text is obscured.

Returns: true when obscured.

◆ outlineColor()

const spk::Color & spk::TextEdit::outlineColor ( ) const

Returns the outline color.

Returns: Outline color.

◆ placeCursor()

void spk::TextEdit::placeCursor ( size_t p_position )

Places the cursor at a position.

Parameters

p_position Cursor position.

Here is the caller graph for this function:

◆ placeholder()

const std::wstring & spk::TextEdit::placeholder ( ) const

Returns the placeholder text.

Returns: Placeholder text.

◆ setAlignment()

void spk::TextEdit::setAlignment	(	HorizontalAlignment	p_horizontalAlignment,
		VerticalAlignment	p_verticalAlignment )

Sets text alignment.

Parameters

p_horizontalAlignment	Horizontal alignment.
p_verticalAlignment	Vertical alignment.

◆ setColors()

void spk::TextEdit::setColors	(	const spk::Color &	p_glyphColor,
		const spk::Color &	p_outlineColor )

Sets glyph and outline colors.

Parameters

p_glyphColor	Glyph color.
p_outlineColor	Outline color.

◆ setCornerSize()

void spk::TextEdit::setCornerSize ( const spk::Vector2UInt & p_cornerSize )

Sets background corner size.

Parameters

p_cornerSize Corner size in pixels.

Here is the call graph for this function:

◆ setCursorBlinkDuration()

void spk::TextEdit::setCursorBlinkDuration ( const spk::Duration & p_duration )

Sets the cursor blink duration.

Parameters

p_duration Blink duration.

◆ setFont()

void spk::TextEdit::setFont ( spk::Font * p_font )

Sets the font used for text rendering.

Parameters

p_font Font pointer.

Here is the call graph for this function:

◆ setFontSize()

void spk::TextEdit::setFontSize ( const spk::Font::Size & p_size )

Sets the font size used for text rendering.

Parameters

p_size Font size.

Here is the call graph for this function:

◆ setObscured()

void spk::TextEdit::setObscured ( bool p_obscured )

Enables or disables obscured rendering.

Parameters

p_obscured Whether to obscure text.

Here is the call graph for this function:

◆ setPlaceholder()

void spk::TextEdit::setPlaceholder ( const std::wstring & p_placeholder )

Sets the placeholder text.

Parameters

p_placeholder Placeholder text.

Here is the call graph for this function:

◆ setText()

TextEdit::ValidationStatus spk::TextEdit::setText ( const std::wstring & p_text )

Sets the text content.

Parameters

p_text Text string.

Returns: Validation status.

Here is the call graph for this function:

◆ setTexture()

void spk::TextEdit::setTexture ( const spk::SpriteSheet * p_spriteSheet )

Sets the background texture.

Parameters

p_spriteSheet Sprite sheet pointer.

◆ setValidationCallback()

void spk::TextEdit::setValidationCallback ( ValidationCallback p_callback )

Sets the validation callback.

Parameters

p_callback Validation callback.

◆ subscribeToEdition()

TextEdit::EditionContract spk::TextEdit::subscribeToEdition ( const EditionJob & p_job )

Subscribes to text edition notifications.

Parameters

p_job Callback invoked on text changes.

Returns: Subscription contract.

◆ text()

const std::wstring & spk::TextEdit::text ( ) const

Returns the current text.

Returns: Text string.

◆ texture()

const spk::SpriteSheet * spk::TextEdit::texture ( ) const

Returns the background texture.

Returns: Sprite sheet pointer or nullptr.

◆ validationCallback()

const TextEdit::ValidationCallback & spk::TextEdit::validationCallback ( ) const

Returns the validation callback.

Returns: Validation callback.

The documentation for this class was generated from the following files:

includes/structure/widget/spk_text_edit.hpp
srcs/structure/widget/spk_text_edit.cpp

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TextEdit()

Member Function Documentation

◆ _onFocusEvent()

◆ _onGeometryChange()

◆ _onGlyphEvent()

◆ _onKeyPressEvent()

◆ _onMouseMotionEvent()

◆ _onMousePressEvent()

◆ _onMouseReleaseEvent()

◆ _onPaintEvent()

◆ checkTextValidity()

◆ cornerSize()

◆ cursorBlinkDuration()

◆ cursorPosition()

◆ font()

◆ fontSize()

◆ glyphColor()

◆ moveCursor()

◆ obscured()

◆ outlineColor()

◆ placeCursor()

◆ placeholder()

◆ setAlignment()

◆ setColors()

◆ setCornerSize()

◆ setCursorBlinkDuration()

◆ setFont()

◆ setFontSize()

◆ setObscured()

◆ setPlaceholder()

◆ setText()

◆ setTexture()

◆ setValidationCallback()

◆ subscribeToEdition()

◆ text()

◆ texture()

◆ validationCallback()
