spk::Extend2D Struct Reference

Axis-aligned rectangle defined by an anchor point and size. More...

#include <spk_extend_2d.hpp>

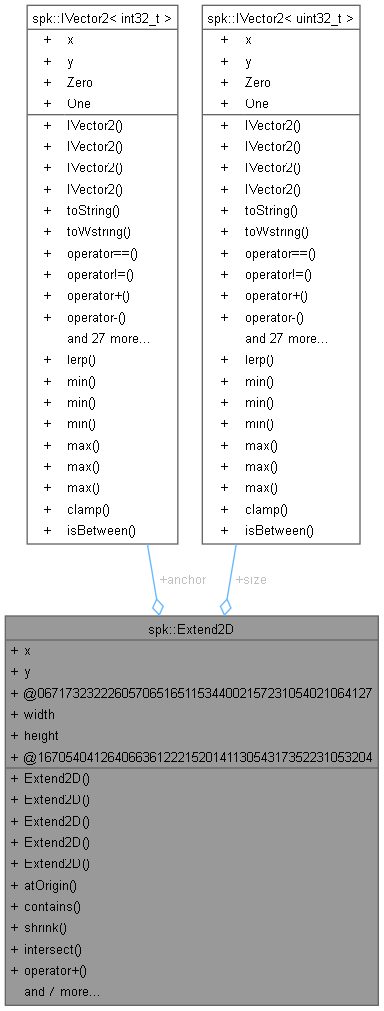

Collaboration diagram for spk::Extend2D:

Public Types
using	Anchor = spk::Vector2Int
	Position of the rectangle, expressed as its top-left corner.
using	Size = spk::Vector2UInt
	Width and height of the rectangle.

Public Member Functions
	Extend2D ()
	Builds a zero-sized rectangle at the origin.
	Extend2D (const Vector2Int &p_anchor, const Vector2UInt &p_size)
	Builds a rectangle from anchor and size vectors.
	Extend2D (const Vector2Int &p_anchor, size_t p_width, size_t p_height)
	Builds a rectangle from anchor and explicit dimensions.
	Extend2D (int p_x, int p_y, const Vector2UInt &p_size)
	Builds a rectangle from coordinates and size vector.
	Extend2D (int p_x, int p_y, size_t p_width, size_t p_height)
	Builds a rectangle from coordinates and explicit dimensions.
Extend2D	atOrigin () const
	Returns a copy translated to the origin.
bool	contains (const Vector2Int &p_point) const
	Tests whether a point lies within the rectangle bounds.
Extend2D	shrink (const Vector2Int &p_offset) const
	Returns a rectangle shrunk by the provided offset on each side.
Extend2D	intersect (const Extend2D &p_other) const
	Computes the intersection of two rectangles.
Extend2D	operator+ (const Extend2D &p_other) const
	Translates the rectangle by another rectangle's anchor.
Extend2D	operator- (const Extend2D &p_other) const
	Translates the rectangle negatively by another rectangle's anchor.
Extend2D &	operator+= (const Extend2D &p_other)
	In-place translation by another rectangle's anchor.
Extend2D &	operator-= (const Extend2D &p_other)
	In-place negative translation by another rectangle's anchor.
std::string	toString () const
	Converts the rectangle to a readable string.
std::wstring	toWstring () const
	Converts the rectangle to a wide string.
bool	operator== (const Extend2D &p_other) const
	Equality comparison between rectangles.
bool	operator!= (const Extend2D &p_other) const
	Inequality comparison between rectangles.

Public Attributes
union {
Anchor   anchor
struct {
Anchor::value_type   x
Anchor::value_type   y
}
};
union {
Size   size
struct {
Size::value_type   width
Size::value_type   height
}
};

Friends
std::ostream &	operator<< (std::ostream &p_stream, const Extend2D &p_extend)
	Streams a rectangle to an output stream.
std::wostream &	operator<< (std::wostream &p_stream, const Extend2D &p_extend)
	Streams a rectangle to a wide output stream.

Detailed Description

Axis-aligned rectangle defined by an anchor point and size.

See also

spk::Vector2Int, spk::Vector2UInt

spk::Extend2D area{{0, 0}, {640, 480}};
if (area.contains({100, 120}))
{
        // point is inside the rectangle
}

Constructor & Destructor Documentation

Extend2D() [1/4]

spk::Extend2D::Extend2D	(	const Vector2Int &	p_anchor,
		const Vector2UInt &	p_size )

Builds a rectangle from anchor and size vectors.

Parameters

p_anchor	Top-left position.
p_size	Width and height.

Extend2D() [2/4]

spk::Extend2D::Extend2D	(	const Vector2Int &	p_anchor,
		size_t	p_width,
		size_t	p_height )

Builds a rectangle from anchor and explicit dimensions.

Parameters

p_anchor	Top-left position.
p_width	Rectangle width.
p_height	Rectangle height.

Extend2D() [3/4]

spk::Extend2D::Extend2D	(	int	p_x,
		int	p_y,
		const Vector2UInt &	p_size )

Builds a rectangle from coordinates and size vector.

Parameters

p_x	Anchor x coordinate.
p_y	Anchor y coordinate.
p_size	Width and height.

Extend2D() [4/4]

spk::Extend2D::Extend2D	(	int	p_x,
		int	p_y,
		size_t	p_width,
		size_t	p_height )

Builds a rectangle from coordinates and explicit dimensions.

Parameters

p_x	Anchor x coordinate.
p_y	Anchor y coordinate.
p_width	Rectangle width.
p_height	Rectangle height.

Member Function Documentation

atOrigin()

Extend2D spk::Extend2D::atOrigin

(

)

const

Returns a copy translated to the origin.

Returns

Rectangle anchored at (0,0).

Here is the call graph for this function:

contains()

bool spk::Extend2D::contains

(

const Vector2Int &

p_point

)

const

Tests whether a point lies within the rectangle bounds.

Parameters

p_point

Point to test.

Returns

true when the point is inside or on the edges.

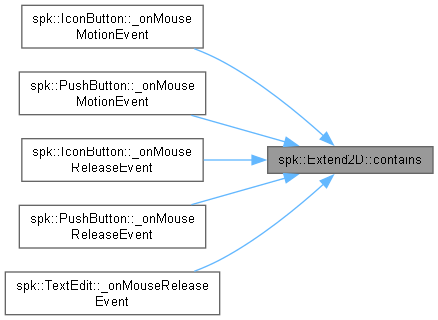

Here is the caller graph for this function:

intersect()

Extend2D spk::Extend2D::intersect

(

const Extend2D &

p_other

)

const

Computes the intersection of two rectangles.

Parameters

p_other

Rectangle to intersect with.

Returns

Overlapping rectangle (may be empty).

Here is the call graph for this function:

Here is the caller graph for this function:

operator!=()

bool spk::Extend2D::operator!=

(

const Extend2D &

p_other

)

const

Inequality comparison between rectangles.

Parameters

p_other

Rectangle to compare.

Returns

true when anchor or size differ.

Here is the call graph for this function:

operator+()

Extend2D spk::Extend2D::operator+

(

const Extend2D &

p_other

)

const

Translates the rectangle by another rectangle's anchor.

Parameters

p_other

Rectangle providing offset and size delta.

Returns

Translated rectangle.

Here is the call graph for this function:

operator+=()

Extend2D & spk::Extend2D::operator+=

(

const Extend2D &

p_other

)

In-place translation by another rectangle's anchor.

Parameters

p_other

Rectangle providing offset and size delta.

Returns

Reference to this rectangle.

Here is the call graph for this function:

operator-()

Extend2D spk::Extend2D::operator-

(

const Extend2D &

p_other

)

const

Translates the rectangle negatively by another rectangle's anchor.

Parameters

p_other

Rectangle providing offset and size delta.

Returns

Translated rectangle.

Here is the call graph for this function:

operator-=()

Extend2D & spk::Extend2D::operator-=

(

const Extend2D &

p_other

)

In-place negative translation by another rectangle's anchor.

Parameters

p_other

Rectangle providing offset and size delta.

Returns

Reference to this rectangle.

Here is the call graph for this function:

operator==()

bool spk::Extend2D::operator==

(

const Extend2D &

p_other

)

const

Equality comparison between rectangles.

Parameters

p_other

Rectangle to compare.

Returns

true when anchor and size match.

Here is the call graph for this function:

shrink()

Extend2D spk::Extend2D::shrink

(

const Vector2Int &

p_offset

)

const

Returns a rectangle shrunk by the provided offset on each side.

Parameters

p_offset

Offset to subtract from anchor and size.

Returns

Shrunk rectangle.

Here is the call graph for this function:

Here is the caller graph for this function:

toString()

std::string spk::Extend2D::toString

(

)

const

Converts the rectangle to a readable string.

Returns

UTF-8 string representation.

toWstring()

std::wstring spk::Extend2D::toWstring

(

)

const

Converts the rectangle to a wide string.

Returns

UTF-16/32 string representation.

Friends And Related Symbol Documentation

operator<< [1/2]

std::ostream & operator<< ( std::ostream & p_stream, const Extend2D & p_extend )

friend

Streams a rectangle to an output stream.

Parameters

p_stream	Output stream.
p_extend	Rectangle to print.

Returns

Reference to the stream.

operator<< [2/2]

std::wostream & operator<< ( std::wostream & p_stream, const Extend2D & p_extend )

friend

Streams a rectangle to a wide output stream.

Parameters

p_stream	Output stream.
p_extend	Rectangle to print.

Returns

Reference to the stream.

---

The documentation for this struct was generated from the following files:

• includes/structure/graphics/spk_extend_2d.hpp
• srcs/structure/graphics/spk_extend_2d.cpp
