spk::InherenceObject< TType > Class Template Reference

Provides parent/child ownership links for tree structures. More...

#include <spk_inherence_object.hpp>

Inheritance diagram for spk::InherenceObject< TType >:

Collaboration diagram for spk::InherenceObject< TType >:

Public Member Functions
virtual void	addChild (TType *p_child)
	Adds a child to this node, handling reparenting as needed.
virtual void	removeChild (TType *p_child)
	Removes a child from this node.
TType *	parent () const
	Returns the parent pointer.
virtual std::vector< TType * > &	children ()
	Returns the children vector.
virtual const std::vector< TType * > &	children () const
	Returns the children vector.
void	clearChildren ()
	Clears the children list and resets each child's parent pointer.

Detailed Description

template<typename TType>
class spk::InherenceObject< TType >

Provides parent/child ownership links for tree structures.

Template Parameters

TType

Derived type inheriting from InherenceObject.

See also

InherenceWithPriorityObject

struct Node : spk::InherenceObject<Node> {};
Node parent;
Node child;
parent.addChild(&child);

Member Function Documentation

addChild()

template<typename TType>

virtual void spk::InherenceObject< TType >::addChild ( TType * p_child )

inlinevirtual

Adds a child to this node, handling reparenting as needed.

Parameters

p_child

Child pointer; ignored if null or self.

Reimplemented in spk::Entity, spk::InherenceWithPriorityObject< TType >, and spk::Widget.

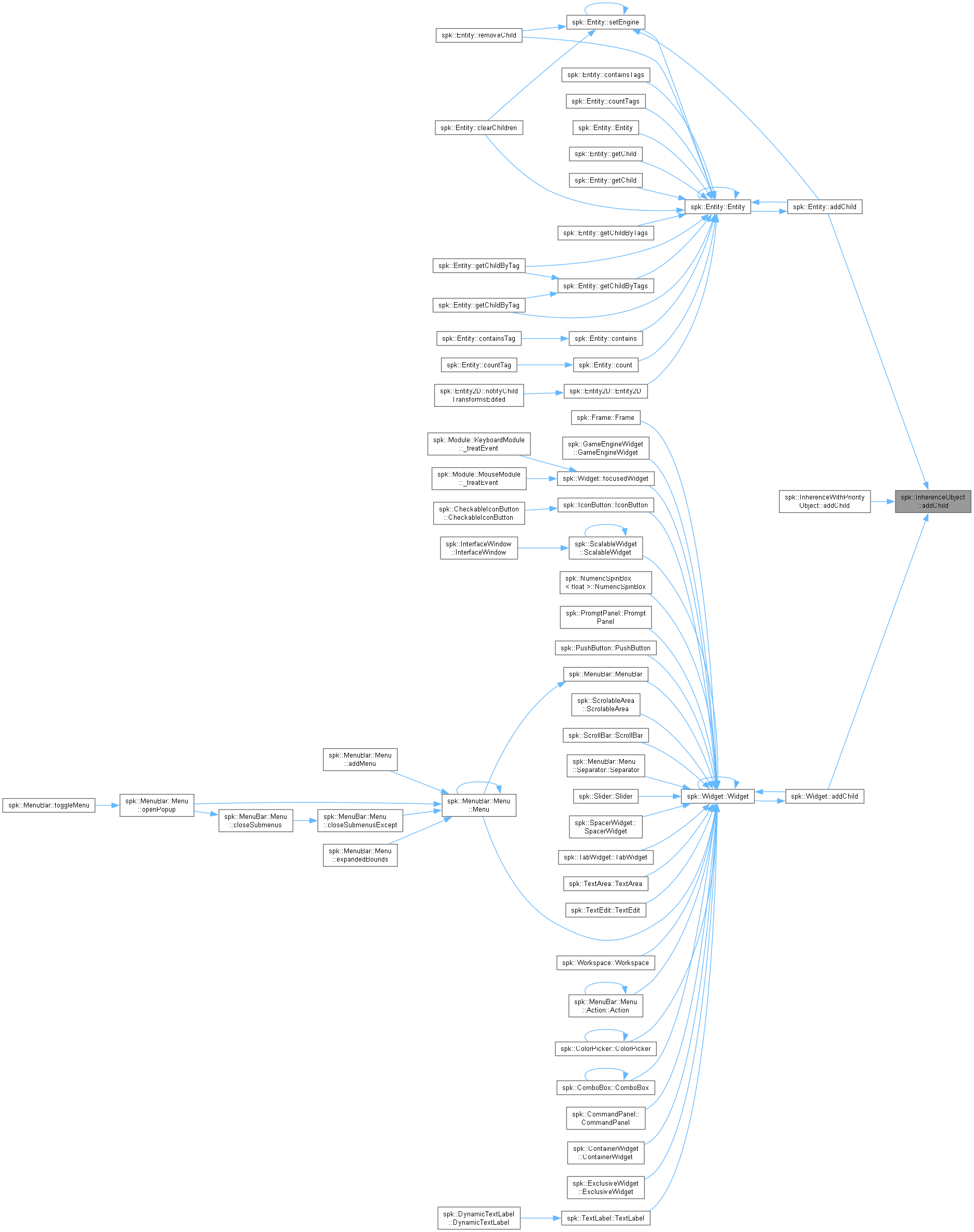

Here is the caller graph for this function:

children() [1/2]

template<typename TType>

virtual std::vector< TType * > & spk::InherenceObject< TType >::children ( )

inlinevirtual

Returns the children vector.

Returns

Mutable reference to children.

Reimplemented in spk::Entity.

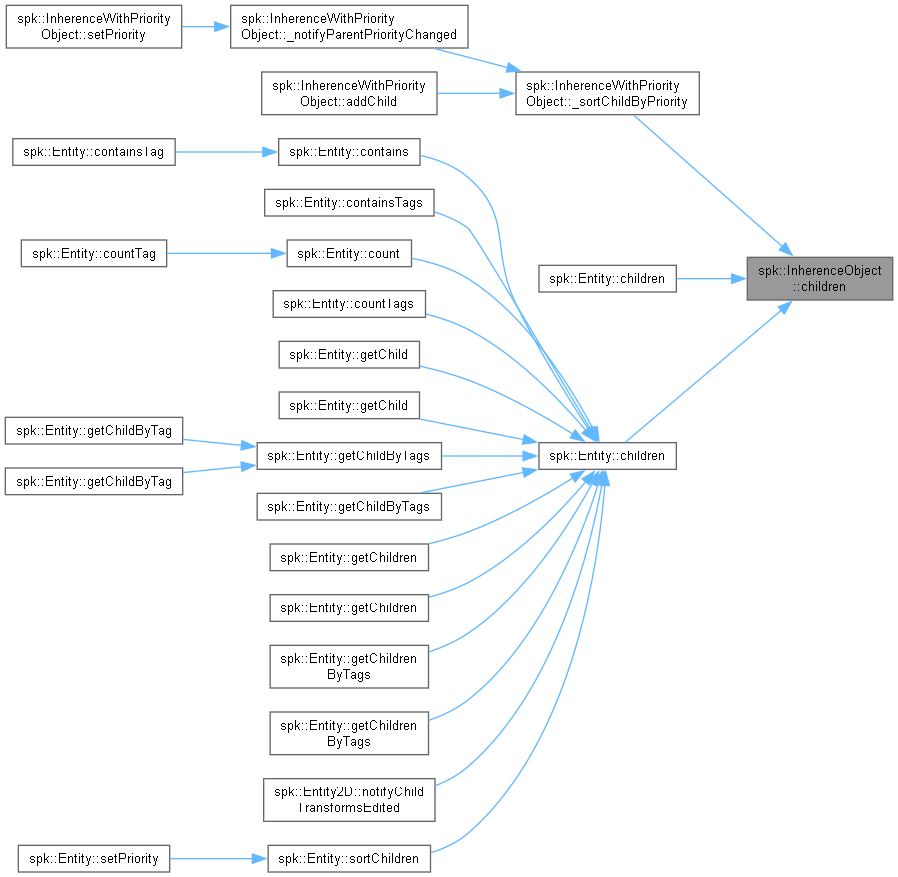

Here is the caller graph for this function:

children() [2/2]

template<typename TType>

virtual const std::vector< TType * > & spk::InherenceObject< TType >::children ( ) const

inlinevirtual

Returns the children vector.

Returns

Const reference to children.

parent()

template<typename TType>

TType * spk::InherenceObject< TType >::parent ( ) const

inline

Returns the parent pointer.

Returns

Parent node or nullptr.

Here is the caller graph for this function:

removeChild()

template<typename TType>

virtual void spk::InherenceObject< TType >::removeChild ( TType * p_child )

inlinevirtual

Removes a child from this node.

Parameters

p_child

Child pointer to remove.

Reimplemented in spk::Entity.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• includes/structure/design_pattern/spk_inherence_object.hpp
