Button widget displaying text with background visuals. More...

#include <spk_push_button.hpp>

Inheritance diagram for spk::PushButton:

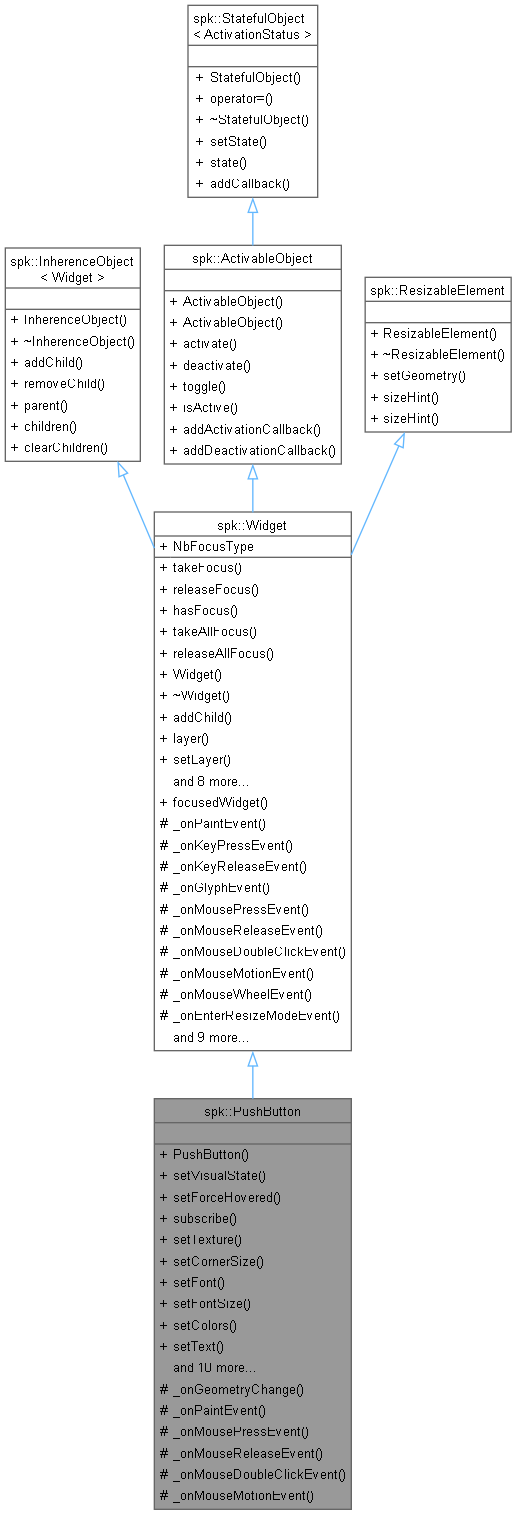

Collaboration diagram for spk::PushButton:

Public Types
enum class	State { Released , Pressed , Hovered , Both }
	Visual state of the button.
using	Contract = spk::TContractProvider<>::Contract
	Contract type for click subscriptions.
using	Job = spk::TContractProvider<>::Job
	Job type invoked on clicks.
Public Types inherited from spk::Widget
enum class	FocusType { Keyboard = 0 , Mouse = 1 }
	Types of focus a widget can own.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Public Member Functions
	PushButton (const std::wstring &p_name, spk::Widget *p_parent)
	Builds a push button widget.
void	setVisualState (const State &p_state)
	Sets the current visual state.
void	setForceHovered (bool p_force)
	Forces hovered state visually.
Contract	subscribe (const Job &p_job)
	Subscribes to click events.
void	setTexture (const spk::SpriteSheet *p_spriteSheet, State p_state=State::Both)
	Sets the background texture for a state.
void	setCornerSize (const spk::Vector2UInt &p_cornerSize, State p_state=State::Both)
	Sets the background corner size for a state.
void	setFont (spk::Font *p_font, State p_state=State::Both)
	Sets the font for a state.
void	setFontSize (const spk::Font::Size &p_size, State p_state=State::Both)
	Sets the font size for a state.
void	setColors (const spk::Color &p_glyphColor, const spk::Color &p_outlineColor, State p_state=State::Both)
	Sets glyph and outline colors for a state.
void	setText (const std::wstring &p_text, State p_state=State::Both)
	Sets the text for a state.
void	setAlignment (HorizontalAlignment p_horizontalAlignment, VerticalAlignment p_verticalAlignment, State p_state=State::Both)
	Sets text alignment for a state.
const spk::SpriteSheet *	texture (State p_state) const
	Returns the background texture for a state.
const spk::Vector2UInt &	cornerSize (State p_state) const
	Returns the background corner size for a state.
spk::Font *	font (State p_state) const
	Returns the font for a state.
const spk::Font::Size &	fontSize (State p_state) const
	Returns the font size for a state.
const spk::Color &	glyphColor (State p_state) const
	Returns the glyph color for a state.
const spk::Color &	outlineColor (State p_state) const
	Returns the outline color for a state.
const std::wstring &	text (State p_state) const
	Returns the text for a state.
HorizontalAlignment	horizontalAlignment (State p_state) const
	Returns the horizontal alignment for a state.
VerticalAlignment	verticalAlignment (State p_state) const
	Returns the vertical alignment for a state.
Public Member Functions inherited from spk::Widget
void	takeFocus (FocusType p_focusType)
	Grants this widget ownership of the requested focus type.
void	releaseFocus (FocusType p_focusType)
	Releases a previously acquired focus type.
bool	hasFocus (FocusType p_focusType) const
	Checks if this widget currently owns a focus type.
void	takeAllFocus ()
	Acquires both keyboard and mouse focus.
void	releaseAllFocus ()
	Releases both keyboard and mouse focus types.
	Widget (const std::wstring &p_name, Widget *p_parent)
	Builds a widget optionally attached to a parent.
void	addChild (Widget *p_child) override
	Adds a child widget and sorts the hierarchy by layer.
const float &	layer () const
	Current rendering layer of the widget.
void	setLayer (const float &p_newLayer)
	Updates the widget layer and propagates relative offsets to children.
const std::wstring &	name () const
	Retrieves the widget name.
void	setName (const std::wstring &p_name)
	Sets the widget name.
void	setGeometry (const spk::Extend2D &p_geometry) override
	Requests a specific viewport and scissor region for the widget.
const spk::Extend2D &	geometry () const
	Returns the current widget geometry.
const spk::OpenGL::ViewRegion &	viewRegion () const
	Accesses the computed view region.
const spk::OpenGL::FrameBufferObject &	frameBufferObject () const
	Returns the frame buffer object used for widget rendering.
const spk::OpenGL::FrameBufferObject &	fbo () const
	Alias for frameBufferObject().
void	requireGeometryChange ()
	Marks the widget view region as needing recomputation.
Public Member Functions inherited from spk::InherenceObject< Widget >
virtual void	removeChild (Widget *p_child)
	Removes a child from this node.
Widget *	parent () const
	Returns the parent pointer.
virtual std::vector< Widget * > &	children ()
	Returns the children vector.
void	clearChildren ()
	Clears the children list and resets each child's parent pointer.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::ResizableElement
SizeHint &	sizeHint ()
	Returns mutable size hint data.
const SizeHint &	sizeHint () const
	Returns const size hint data.

Protected Member Functions
void	_onGeometryChange () override
	Updates layout geometry when size changes.
void	_onPaintEvent (spk::PaintEvent &p_event) override
	Paints the button visuals.
void	_onMousePressEvent (spk::MousePressEvent &p_event) override
	Handles mouse press events.
void	_onMouseReleaseEvent (spk::MouseReleaseEvent &p_event) override
	Handles mouse release events.
void	_onMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event) override
	Handles mouse double click events.
void	_onMouseMotionEvent (spk::MouseMotionEvent &p_event) override
	Handles mouse motion events.
Protected Member Functions inherited from spk::Widget
virtual void	_onKeyPressEvent (spk::KeyPressEvent &p_event)
	Keyboard press handler for derived widgets.
virtual void	_onKeyReleaseEvent (spk::KeyReleaseEvent &p_event)
	Keyboard release handler for derived widgets.
virtual void	_onGlyphEvent (spk::GlyphEvent &p_event)
	Text glyph input handler for derived widgets.
virtual void	_onMouseWheelEvent (spk::MouseWheelEvent &p_event)
	Mouse wheel handler for derived widgets.
virtual void	_onEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event)
	Callback for entering resize mode.
virtual void	_onResizeEvent (spk::ResizeEvent &p_event)
	Resize handling hook.
virtual void	_onExitResizeModeEvent (spk::ExitResizeModeEvent &p_event)
	Callback invoked when leaving resize mode.
virtual void	_onQuitEvent (spk::QuitEvent &p_event)
	Quit event handler hook.
virtual void	_onMoveEvent (spk::MoveEvent &p_event)
	Window move handler hook.
virtual void	_onFullScreenModeEvent (spk::FullScreenModeEvent &p_event)
	Full screen toggle handler hook.
virtual void	_onMaximizedModeEvent (spk::MaximizedModeEvent &p_event)
	Maximized mode change handler.
virtual void	_onFocusEvent (spk::FocusEvent &p_event)
	Focus change handler hook.
virtual void	_onUpdateEvent (spk::UpdateEvent &p_event)
	Frame update handler hook.

Additional Inherited Members
Static Public Member Functions inherited from spk::Widget
static Widget *	focusedWidget (FocusType p_focusType)
	Retrieves the widget currently owning a focus type.
Static Public Attributes inherited from spk::Widget
static const size_t	NbFocusType = 2
	Number of focus slots tracked at runtime.

Detailed Description

Button widget displaying text with background visuals.

See also: TextRegion

spk::PushButton button(L"OK", parent);

button.setText(L"OK");

spk::InherenceObject< Widget >::parent

Widget * parent() const

Definition spk_inherence_object.hpp:85

spk::PushButton

Button widget displaying text with background visuals.

Definition spk_push_button.hpp:21

Constructor & Destructor Documentation

◆ PushButton()

spk::PushButton::PushButton	(	const std::wstring &	p_name,
		spk::Widget *	p_parent )

Builds a push button widget.

Parameters

p_name	Widget name.
p_parent	Parent widget.

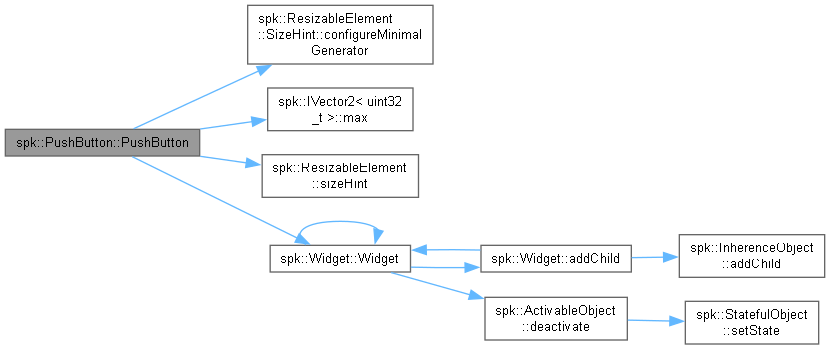

Here is the call graph for this function:

Member Function Documentation

◆ _onGeometryChange()

void spk::PushButton::_onGeometryChange ( )

overrideprotectedvirtual

Updates layout geometry when size changes.

Reimplemented from spk::Widget.

◆ _onMouseDoubleClickEvent()

void spk::PushButton::_onMouseDoubleClickEvent ( spk::MouseDoubleClickEvent & p_event )

overrideprotectedvirtual

Handles mouse double click events.

Parameters

p_event Mouse double click event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onMouseMotionEvent()

void spk::PushButton::_onMouseMotionEvent ( spk::MouseMotionEvent & p_event )

overrideprotectedvirtual

Handles mouse motion events.

Parameters

p_event Mouse motion event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onMousePressEvent()

void spk::PushButton::_onMousePressEvent ( spk::MousePressEvent & p_event )

overrideprotectedvirtual

Handles mouse press events.

Parameters

p_event Mouse press event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onMouseReleaseEvent()

void spk::PushButton::_onMouseReleaseEvent ( spk::MouseReleaseEvent & p_event )

overrideprotectedvirtual

Handles mouse release events.

Parameters

p_event Mouse release event payload.

Reimplemented from spk::Widget.

Here is the call graph for this function:

◆ _onPaintEvent()

void spk::PushButton::_onPaintEvent ( spk::PaintEvent & p_event )

overrideprotectedvirtual

Paints the button visuals.

Parameters

p_event Paint event payload.

Reimplemented from spk::Widget.

◆ cornerSize()

const spk::Vector2UInt & spk::PushButton::cornerSize ( State p_state ) const

Returns the background corner size for a state.

Parameters

p_state State to query.

Returns: Corner size in pixels.

◆ font()

spk::Font * spk::PushButton::font ( State p_state ) const

Returns the font for a state.

Parameters

p_state State to query.

Returns: Font pointer.

◆ fontSize()

const spk::Font::Size & spk::PushButton::fontSize ( State p_state ) const

Returns the font size for a state.

Parameters

p_state State to query.

Returns: Font size.

◆ glyphColor()

const spk::Color & spk::PushButton::glyphColor ( State p_state ) const

Returns the glyph color for a state.

Parameters

p_state State to query.

Returns: Glyph color.

◆ horizontalAlignment()

HorizontalAlignment spk::PushButton::horizontalAlignment ( State p_state ) const

Returns the horizontal alignment for a state.

Parameters

p_state State to query.

Returns: Horizontal alignment.

◆ outlineColor()

const spk::Color & spk::PushButton::outlineColor ( State p_state ) const

Returns the outline color for a state.

Parameters

p_state State to query.

Returns: Outline color.

◆ setAlignment()

void spk::PushButton::setAlignment	(	HorizontalAlignment	p_horizontalAlignment,
		VerticalAlignment	p_verticalAlignment,
		State	p_state = State::Both )

Sets text alignment for a state.

Parameters

p_horizontalAlignment	Horizontal alignment.
p_verticalAlignment	Vertical alignment.
p_state	State to update.

Here is the caller graph for this function:

◆ setColors()

void spk::PushButton::setColors	(	const spk::Color &	p_glyphColor,
		const spk::Color &	p_outlineColor,
		State	p_state = State::Both )

Sets glyph and outline colors for a state.

Parameters

p_glyphColor	Glyph color.
p_outlineColor	Outline color.
p_state	State to update.

◆ setCornerSize()

void spk::PushButton::setCornerSize	(	const spk::Vector2UInt &	p_cornerSize,
		State	p_state = State::Both )

Sets the background corner size for a state.

Parameters

p_cornerSize	Corner size in pixels.
p_state	State to update.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setFont()

void spk::PushButton::setFont	(	spk::Font *	p_font,
		State	p_state = State::Both )

Sets the font for a state.

Parameters

p_font	Font pointer.
p_state	State to update.

Here is the call graph for this function:

◆ setFontSize()

void spk::PushButton::setFontSize	(	const spk::Font::Size &	p_size,
		State	p_state = State::Both )

Sets the font size for a state.

Parameters

p_size	Font size.
p_state	State to update.

Here is the call graph for this function:

◆ setForceHovered()

void spk::PushButton::setForceHovered ( bool p_force )

Forces hovered state visually.

Parameters

p_force Whether to force hovered visuals.

◆ setText()

void spk::PushButton::setText	(	const std::wstring &	p_text,
		State	p_state = State::Both )

Sets the text for a state.

Parameters

p_text	Button text.
p_state	State to update.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTexture()

void spk::PushButton::setTexture	(	const spk::SpriteSheet *	p_spriteSheet,
		State	p_state = State::Both )

Sets the background texture for a state.

Parameters

p_spriteSheet	Sprite sheet pointer.
p_state	State to update.

Here is the call graph for this function:

◆ setVisualState()

void spk::PushButton::setVisualState ( const State & p_state )

Sets the current visual state.

Parameters

p_state New state.

Here is the caller graph for this function:

◆ subscribe()

PushButton::Contract spk::PushButton::subscribe ( const Job & p_job )

Subscribes to click events.

Parameters

p_job Callback invoked on click.

Returns: Subscription contract.

◆ text()

const std::wstring & spk::PushButton::text ( State p_state ) const

Returns the text for a state.

Parameters

p_state State to query.

Returns: Text string.

◆ texture()

const spk::SpriteSheet * spk::PushButton::texture ( State p_state ) const

Returns the background texture for a state.

Parameters

p_state State to query.

Returns: Sprite sheet pointer or nullptr.

◆ verticalAlignment()

VerticalAlignment spk::PushButton::verticalAlignment ( State p_state ) const

Returns the vertical alignment for a state.

Parameters

p_state State to query.

Returns: Vertical alignment.

The documentation for this class was generated from the following files:

includes/structure/widget/spk_push_button.hpp
srcs/structure/widget/spk_push_button.cpp

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PushButton()

Member Function Documentation

◆ _onGeometryChange()

◆ _onMouseDoubleClickEvent()

◆ _onMouseMotionEvent()

◆ _onMousePressEvent()

◆ _onMouseReleaseEvent()

◆ _onPaintEvent()

◆ cornerSize()

◆ font()

◆ fontSize()

◆ glyphColor()

◆ horizontalAlignment()

◆ outlineColor()

◆ setAlignment()

◆ setColors()

◆ setCornerSize()

◆ setFont()

◆ setFontSize()

◆ setForceHovered()

◆ setText()

◆ setTexture()

◆ setVisualState()

◆ subscribe()

◆ text()

◆ texture()

◆ verticalAlignment()
