spk::TextLabel Class Reference

Widget that renders a text region over a nine-slice background. More...

#include <spk_text_label.hpp>

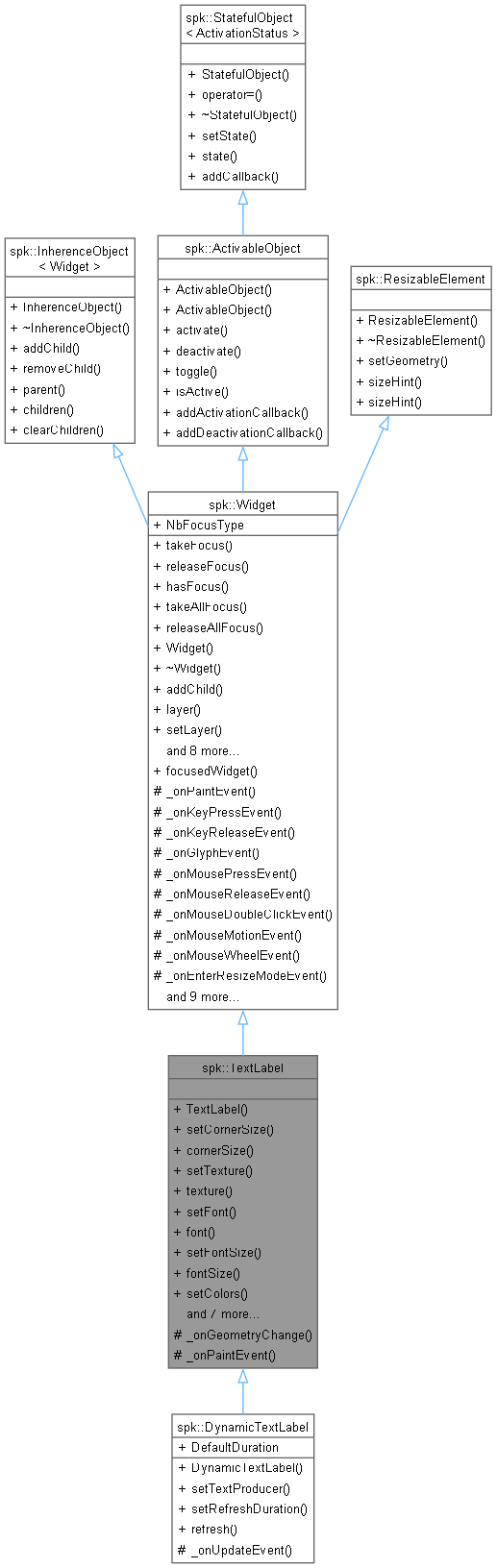

Inheritance diagram for spk::TextLabel:

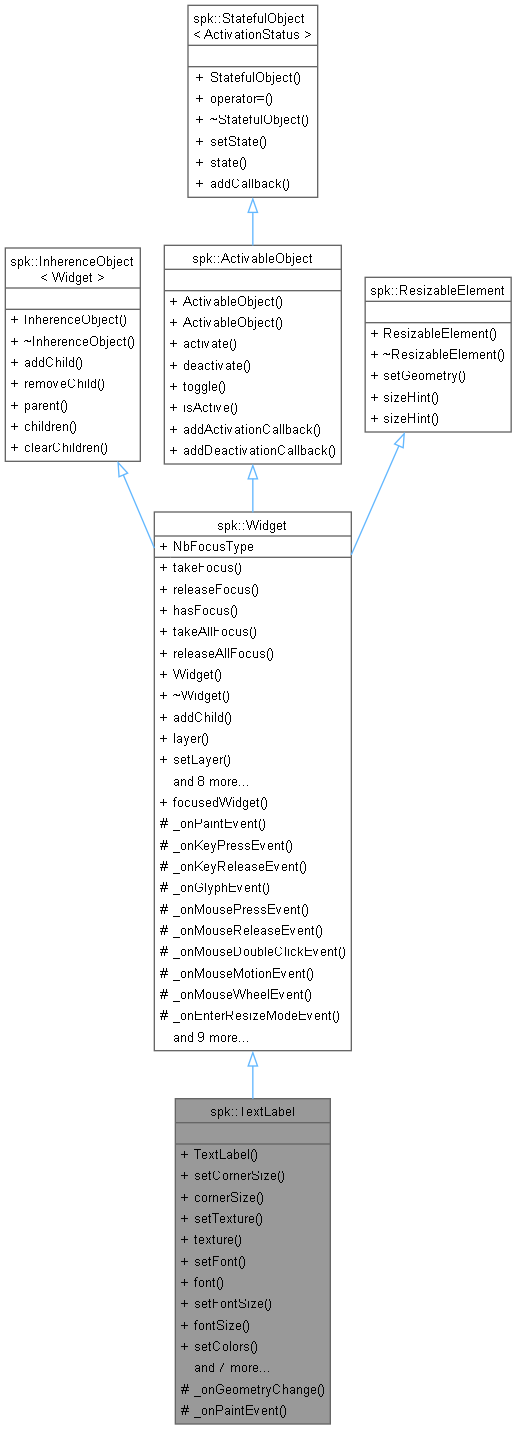

Collaboration diagram for spk::TextLabel:

Public Member Functions
	TextLabel (const std::wstring &p_name, spk::Widget *p_parent)
	Creates a text label widget.
void	setCornerSize (const spk::Vector2UInt &p_cornerSize)
	Sets the corner size for the nine-slice background.
const spk::Vector2UInt &	cornerSize () const
	Returns the current corner size for the background.
void	setTexture (const spk::SpriteSheet *p_spriteSheet)
	Assigns the sprite sheet used for the background.
const spk::SpriteSheet *	texture () const
	Returns the sprite sheet used for the background.
void	setFont (spk::Font *p_font)
	Sets the font used for the label text.
spk::Font *	font () const
	Returns the font used for the label text.
void	setFontSize (const spk::Font::Size &p_size)
	Sets the font size for the label text.
const spk::Font::Size &	fontSize () const
	Returns the current font size for the label text.
void	setColors (const spk::Color &p_glyphColor, const spk::Color &p_outlineColor)
	Sets the glyph and outline colors for the label text.
const spk::Color &	glyphColor () const
	Returns the current glyph color.
const spk::Color &	outlineColor () const
	Returns the current outline color.
void	setText (const std::wstring &p_text)
	Updates the label text.
const std::wstring &	text () const
	Returns the current label text.
void	setAlignment (HorizontalAlignment p_horizontalAlignment, VerticalAlignment p_verticalAlignment)
	Sets the horizontal and vertical alignment for the text.
HorizontalAlignment	horizontalAlignment () const
	Returns the current horizontal alignment.
VerticalAlignment	verticalAlignment () const
	Returns the current vertical alignment.
Public Member Functions inherited from spk::Widget
void	takeFocus (FocusType p_focusType)
	Grants this widget ownership of the requested focus type.
void	releaseFocus (FocusType p_focusType)
	Releases a previously acquired focus type.
bool	hasFocus (FocusType p_focusType) const
	Checks if this widget currently owns a focus type.
void	takeAllFocus ()
	Acquires both keyboard and mouse focus.
void	releaseAllFocus ()
	Releases both keyboard and mouse focus types.
	Widget (const std::wstring &p_name, Widget *p_parent)
	Builds a widget optionally attached to a parent.
void	addChild (Widget *p_child) override
	Adds a child widget and sorts the hierarchy by layer.
const float &	layer () const
	Current rendering layer of the widget.
void	setLayer (const float &p_newLayer)
	Updates the widget layer and propagates relative offsets to children.
const std::wstring &	name () const
	Retrieves the widget name.
void	setName (const std::wstring &p_name)
	Sets the widget name.
void	setGeometry (const spk::Extend2D &p_geometry) override
	Requests a specific viewport and scissor region for the widget.
const spk::Extend2D &	geometry () const
	Returns the current widget geometry.
const spk::OpenGL::ViewRegion &	viewRegion () const
	Accesses the computed view region.
const spk::OpenGL::FrameBufferObject &	frameBufferObject () const
	Returns the frame buffer object used for widget rendering.
const spk::OpenGL::FrameBufferObject &	fbo () const
	Alias for frameBufferObject().
void	requireGeometryChange ()
	Marks the widget view region as needing recomputation.
Public Member Functions inherited from spk::InherenceObject< Widget >
virtual void	removeChild (Widget *p_child)
	Removes a child from this node.
Widget *	parent () const
	Returns the parent pointer.
virtual std::vector< Widget * > &	children ()
	Returns the children vector.
void	clearChildren ()
	Clears the children list and resets each child's parent pointer.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::ResizableElement
SizeHint &	sizeHint ()
	Returns mutable size hint data.
const SizeHint &	sizeHint () const
	Returns const size hint data.

Protected Member Functions
void	_onGeometryChange () override
	Updates background and text geometry when the widget size changes.
void	_onPaintEvent (spk::PaintEvent &p_event) override
	Paints the background and text regions.
Protected Member Functions inherited from spk::Widget
virtual void	_onKeyPressEvent (spk::KeyPressEvent &p_event)
	Keyboard press handler for derived widgets.
virtual void	_onKeyReleaseEvent (spk::KeyReleaseEvent &p_event)
	Keyboard release handler for derived widgets.
virtual void	_onGlyphEvent (spk::GlyphEvent &p_event)
	Text glyph input handler for derived widgets.
virtual void	_onMousePressEvent (spk::MousePressEvent &p_event)
	Mouse button press handler for derived widgets.
virtual void	_onMouseReleaseEvent (spk::MouseReleaseEvent &p_event)
	Mouse button release handler for derived widgets.
virtual void	_onMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event)
	Mouse double click handler for derived widgets.
virtual void	_onMouseMotionEvent (spk::MouseMotionEvent &p_event)
	Mouse motion handler for derived widgets.
virtual void	_onMouseWheelEvent (spk::MouseWheelEvent &p_event)
	Mouse wheel handler for derived widgets.
virtual void	_onEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event)
	Callback for entering resize mode.
virtual void	_onResizeEvent (spk::ResizeEvent &p_event)
	Resize handling hook.
virtual void	_onExitResizeModeEvent (spk::ExitResizeModeEvent &p_event)
	Callback invoked when leaving resize mode.
virtual void	_onQuitEvent (spk::QuitEvent &p_event)
	Quit event handler hook.
virtual void	_onMoveEvent (spk::MoveEvent &p_event)
	Window move handler hook.
virtual void	_onFullScreenModeEvent (spk::FullScreenModeEvent &p_event)
	Full screen toggle handler hook.
virtual void	_onMaximizedModeEvent (spk::MaximizedModeEvent &p_event)
	Maximized mode change handler.
virtual void	_onFocusEvent (spk::FocusEvent &p_event)
	Focus change handler hook.
virtual void	_onUpdateEvent (spk::UpdateEvent &p_event)
	Frame update handler hook.

Additional Inherited Members
Public Types inherited from spk::Widget
enum class	FocusType { Keyboard = 0 , Mouse = 1 }
	Types of focus a widget can own.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.
Static Public Member Functions inherited from spk::Widget
static Widget *	focusedWidget (FocusType p_focusType)
	Retrieves the widget currently owning a focus type.
Static Public Attributes inherited from spk::Widget
static const size_t	NbFocusType = 2
	Number of focus slots tracked at runtime.

Detailed Description

Widget that renders a text region over a nine-slice background.

See also

spk::NineSliceBackground, spk::TextRegion, spk::Widget

spk::TextLabel label{L"Title", parent};
label.setText(L"Hello World");

Constructor & Destructor Documentation

TextLabel()

spk::TextLabel::TextLabel	(	const std::wstring &	p_name,
		spk::Widget *	p_parent )

Creates a text label widget.

Parameters

p_name	Widget name used for hierarchy identification.
p_parent	Parent widget; can be nullptr for a root widget.

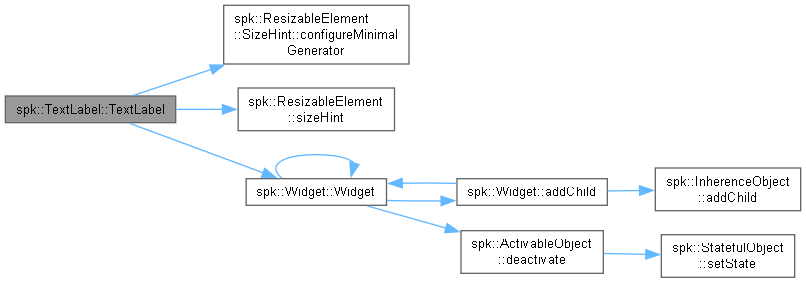

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

_onGeometryChange()

void spk::TextLabel::_onGeometryChange ( )

overrideprotectedvirtual

Updates background and text geometry when the widget size changes.

Reimplemented from spk::Widget.

Here is the call graph for this function:

_onPaintEvent()

void spk::TextLabel::_onPaintEvent ( spk::PaintEvent & p_event )

overrideprotectedvirtual

Paints the background and text regions.

Parameters

p_event

Paint event describing the render target.

Reimplemented from spk::Widget.

cornerSize()

const spk::Vector2UInt & spk::TextLabel::cornerSize

(

)

const

Returns the current corner size for the background.

Returns

Corner size used by the nine-slice background.

font()

spk::Font * spk::TextLabel::font

(

)

const

Returns the font used for the label text.

Returns

Pointer to the current font.

fontSize()

const spk::Font::Size & spk::TextLabel::fontSize

(

)

const

Returns the current font size for the label text.

Returns

Font size configuration.

glyphColor()

const spk::Color & spk::TextLabel::glyphColor

(

)

const

Returns the current glyph color.

Returns

Color used to draw glyphs.

horizontalAlignment()

HorizontalAlignment spk::TextLabel::horizontalAlignment

(

)

const

Returns the current horizontal alignment.

Returns

Horizontal alignment value.

outlineColor()

const spk::Color & spk::TextLabel::outlineColor

(

)

const

Returns the current outline color.

Returns

Color used to draw glyph outlines.

setAlignment()

void spk::TextLabel::setAlignment	(	HorizontalAlignment	p_horizontalAlignment,
		VerticalAlignment	p_verticalAlignment )

Sets the horizontal and vertical alignment for the text.

Parameters

p_horizontalAlignment	Horizontal alignment value.
p_verticalAlignment	Vertical alignment value.

setColors()

void spk::TextLabel::setColors	(	const spk::Color &	p_glyphColor,
		const spk::Color &	p_outlineColor )

Sets the glyph and outline colors for the label text.

Parameters

p_glyphColor	Color used to render glyphs.
p_outlineColor	Color used to render outlines.

setCornerSize()

void spk::TextLabel::setCornerSize

(

const spk::Vector2UInt &

p_cornerSize

)

Sets the corner size for the nine-slice background.

Parameters

p_cornerSize

Size of the fixed corners in pixels.

Here is the call graph for this function:

setFont()

void spk::TextLabel::setFont

(

spk::Font *

p_font

)

Sets the font used for the label text.

Parameters

p_font

Font instance used to render glyphs.

Here is the call graph for this function:

setFontSize()

void spk::TextLabel::setFontSize

(

const spk::Font::Size &

p_size

)

Sets the font size for the label text.

Parameters

p_size

Glyph and outline sizes to apply.

Here is the call graph for this function:

setText()

void spk::TextLabel::setText

(

const std::wstring &

p_text

)

Updates the label text.

Parameters

p_text

UTF-16 text to display.

Here is the call graph for this function:

setTexture()

void spk::TextLabel::setTexture

(

const spk::SpriteSheet *

p_spriteSheet

)

Assigns the sprite sheet used for the background.

Parameters

p_spriteSheet

Sprite sheet containing background sprites.

text()

const std::wstring & spk::TextLabel::text

(

)

const

Returns the current label text.

Returns

Reference to the stored text.

texture()

const spk::SpriteSheet * spk::TextLabel::texture

(

)

const

Returns the sprite sheet used for the background.

Returns

Pointer to the assigned sprite sheet.

verticalAlignment()

VerticalAlignment spk::TextLabel::verticalAlignment

(

)

const

Returns the current vertical alignment.

Returns

Vertical alignment value.

---

The documentation for this class was generated from the following files:

• includes/structure/widget/spk_text_label.hpp
• srcs/structure/widget/spk_text_label.cpp
