Convenience wrapper for element array buffers storing 32-bit indices. More...

#include <spk_index_buffer_object.hpp>

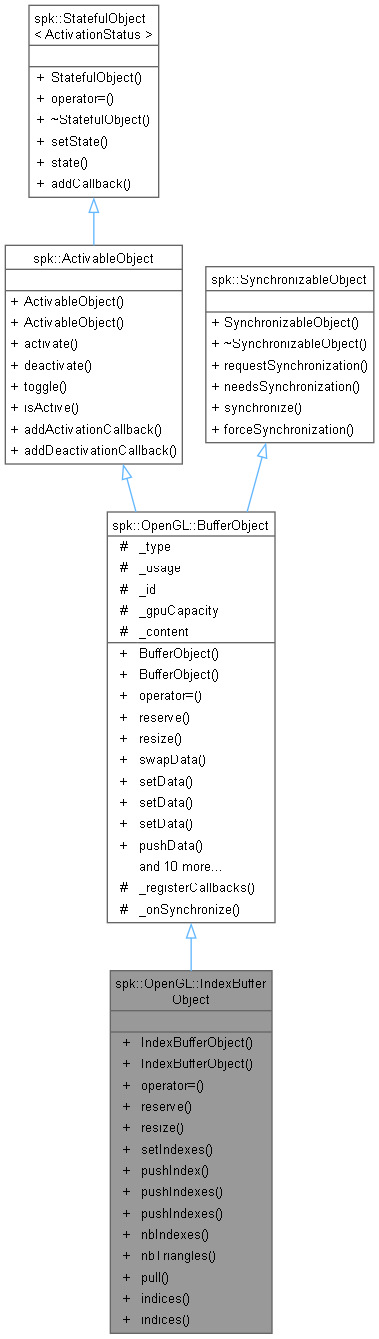

Inheritance diagram for spk::OpenGL::IndexBufferObject:

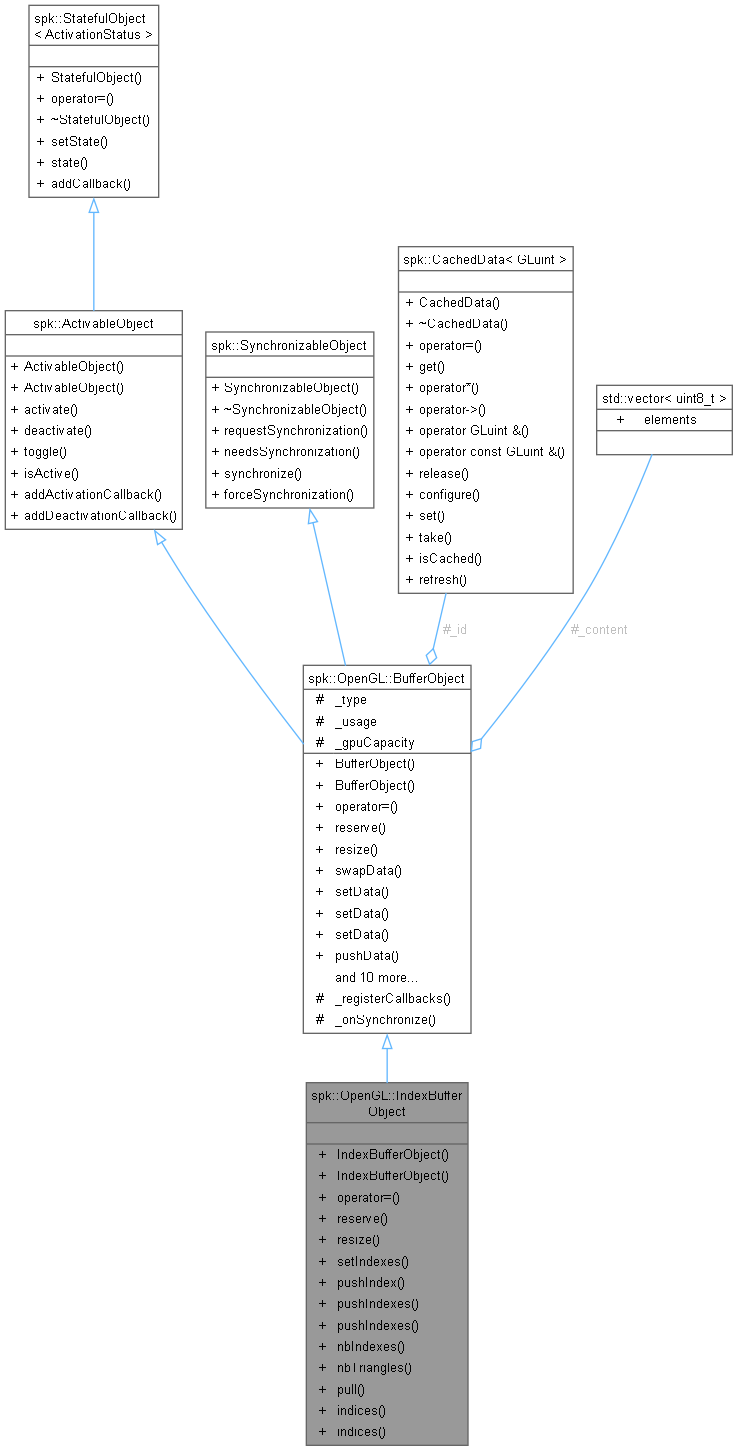

Collaboration diagram for spk::OpenGL::IndexBufferObject:

Public Member Functions
	IndexBufferObject (Usage p_usage)
	Constructs an index buffer with a usage hint.
	IndexBufferObject (const IndexBufferObject &p_other)=default
	Copies buffer configuration and stored indices.
IndexBufferObject &	operator= (const IndexBufferObject &p_other)=default
	Assigns index buffer contents from another instance.
void	reserve (size_t p_nbIndexes)
	Reserves capacity for a number of indices.
void	resize (size_t p_nbIndexes)
	Resizes index storage and marks for sync.
void	setIndexes (const std::vector< uint32_t > &p_indexes)
	Replaces indices by moving a vector.
void	pushIndex (uint32_t p_index)
	Appends a single index.
void	pushIndexes (const std::vector< uint32_t > &p_indexes)
	Appends multiple indices from vector.
void	pushIndexes (std::initializer_list< uint32_t > p_values)
	Appends multiple indices from initializer list.
size_t	nbIndexes () const
	Returns the number of stored indices.
size_t	nbTriangles () const
	Returns the number of triangles (indices / 3).
std::vector< uint32_t >	pull () const
	Returns a copy of the indices.
std::span< uint32_t >	indices ()
	Mutable span over index data.
std::span< const uint32_t >	indices () const
	Const span over index data.
Public Member Functions inherited from spk::OpenGL::BufferObject
	BufferObject (const Type &p_type, const Usage &p_usage)
	Constructs a buffer with target type and usage hint.
	BufferObject (const BufferObject &p_other)
	Copies buffer configuration and staged content from another buffer.
BufferObject &	operator= (const BufferObject &p_other)
	Copies buffer configuration and staged content from another buffer.
void	reserve (size_t p_size)
	Reserves CPU-side storage without changing size.
void	resize (size_t p_size)
	Resizes CPU-side buffer and marks for sync.
void	swapData (std::vector< uint8_t > &p_data)
	Swaps CPU staging buffer with external vector.
template<typename TType>
void	setData (const std::vector< TType > &p_data)
	Replaces buffer contents with a vector of trivially copyable values.
template<typename TType>
void	setData (std::initializer_list< TType > p_data)
	Replaces buffer contents with an initializer list of values.
void	setData (const void *p_data, size_t p_size)
	Replaces CPU buffer content with raw data.
void	pushData (const void *p_data, size_t p_size)
	Appends raw data to CPU buffer.
template<typename TType>
void	pushData (const TType &p_value)
	Appends a single trivially copyable value to the buffer.
template<typename TType>
void	pushData (const std::vector< TType > &p_values)
	Appends a vector of trivially copyable values to the buffer.
template<typename TType>
void	pushData (std::initializer_list< TType > p_values)
	Appends an initializer list of trivially copyable values to the buffer.
void	editData (const void *p_data, size_t p_offset, size_t p_size)
	Overwrites a range of the CPU buffer.
template<typename TType>
void	editData (const TType &p_value, size_t p_offset)
	Overwrites part of the buffer with a single value.
size_t	size () const
	Returns the current CPU buffer size.
Buffer &	buffer ()
	Mutable access to the CPU staging buffer.
const Buffer &	buffer () const
	Const access to the CPU staging buffer.
Buffer::value_type *	data ()
	Mutable pointer to underlying bytes.
const Buffer::value_type *	data () const
	Const pointer to underlying bytes.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::SynchronizableObject
void	requestSynchronization () noexcept
	Marks the object as needing synchronization.
bool	needsSynchronization () const noexcept
	Checks if synchronization is pending.
void	synchronize ()
	Performs synchronization if requested.
void	forceSynchronization ()
	Forces synchronization regardless of current flag.

Additional Inherited Members
Public Types inherited from spk::OpenGL::BufferObject
enum class	Type : GLenum { Unknow = GL_INVALID_ENUM , Storage = GL_ARRAY_BUFFER , Element = GL_ELEMENT_ARRAY_BUFFER , Uniform = GL_UNIFORM_BUFFER , Texture = GL_TEXTURE_BUFFER , TransformFeedback = GL_TRANSFORM_FEEDBACK_BUFFER , ShaderStorage = GL_SHADER_STORAGE_BUFFER , PixelPack = GL_PIXEL_PACK_BUFFER , PixelUnpack = GL_PIXEL_UNPACK_BUFFER , DrawIndirect = GL_DRAW_INDIRECT_BUFFER , AtomicCounter = GL_ATOMIC_COUNTER_BUFFER }
	Supported OpenGL binding targets for buffer uploads.
enum class	Usage : GLenum { Unknow = GL_INVALID_ENUM , Static = GL_STATIC_DRAW , Dynamic = GL_DYNAMIC_DRAW , Stream = GL_STREAM_DRAW , StaticRead = GL_STATIC_READ , DynamicRead = GL_DYNAMIC_READ , StreamRead = GL_STREAM_READ , StaticCopy = GL_STATIC_COPY , DynamicCopy = GL_DYNAMIC_COPY , StreamCopy = GL_STREAM_COPY }
	Usage hints forwarded to the OpenGL driver.
using	Buffer = std::vector<uint8_t>
	CPU-side byte buffer used as staging before GPU upload.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.
Protected Member Functions inherited from spk::OpenGL::BufferObject
void	_registerCallbacks ()
	Registers GPU lifecycle callbacks with the cached buffer id.
void	_onSynchronize () override
	Uploads staged data to the GPU when synchronization is requested.
Protected Attributes inherited from spk::OpenGL::BufferObject
Type	_type
	Buffer target selected at construction.
Usage	_usage
	Driver usage hint selected at construction.
spk::CachedData< GLuint >	_id
	Lazily created GPU buffer identifier.
size_t	_gpuCapacity = 0
	Capacity reserved on the GPU for the current buffer.
Buffer	_content
	CPU staging area mirrored to GPU on synchronization.

Detailed Description

Convenience wrapper for element array buffers storing 32-bit indices.

See also: VertexBufferObject, BufferSetObject

Constructor & Destructor Documentation

◆ IndexBufferObject() [1/2]

spk::OpenGL::IndexBufferObject::IndexBufferObject ( Usage p_usage )

Constructs an index buffer with a usage hint.

Parameters

p_usage Usage flag.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IndexBufferObject() [2/2]

spk::OpenGL::IndexBufferObject::IndexBufferObject ( const IndexBufferObject & p_other )

default

Copies buffer configuration and stored indices.

Parameters

p_other Index buffer to duplicate.

Here is the call graph for this function:

Member Function Documentation

◆ indices() [1/2]

std::span< uint32_t > spk::OpenGL::IndexBufferObject::indices ( )

Mutable span over index data.

Returns: Span of uint32_t.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ indices() [2/2]

std::span< const uint32_t > spk::OpenGL::IndexBufferObject::indices ( ) const

Const span over index data.

Returns: Span of uint32_t.

Here is the call graph for this function:

◆ nbIndexes()

size_t spk::OpenGL::IndexBufferObject::nbIndexes ( ) const

Returns the number of stored indices.

Returns: Count of indices.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nbTriangles()

size_t spk::OpenGL::IndexBufferObject::nbTriangles ( ) const

Returns the number of triangles (indices / 3).

Returns: Triangle count.

Here is the call graph for this function:

◆ operator=()

IndexBufferObject & spk::OpenGL::IndexBufferObject::operator= ( const IndexBufferObject & p_other )

default

Assigns index buffer contents from another instance.

Parameters

p_other Index buffer to copy from.

Returns: Reference to this buffer.

Here is the call graph for this function:

◆ pull()

std::vector< uint32_t > spk::OpenGL::IndexBufferObject::pull ( ) const

Returns a copy of the indices.

Returns: Vector of indices.

Here is the call graph for this function:

◆ pushIndex()

void spk::OpenGL::IndexBufferObject::pushIndex ( uint32_t p_index )

Appends a single index.

Parameters

p_index Index value.

Here is the call graph for this function:

◆ pushIndexes() [1/2]

void spk::OpenGL::IndexBufferObject::pushIndexes ( const std::vector< uint32_t > & p_indexes )

Appends multiple indices from vector.

Parameters

p_indexes Source indices.

Here is the call graph for this function:

◆ pushIndexes() [2/2]

void spk::OpenGL::IndexBufferObject::pushIndexes ( std::initializer_list< uint32_t > p_values )

Appends multiple indices from initializer list.

Parameters

p_values Source indices.

Here is the call graph for this function:

◆ reserve()

void spk::OpenGL::IndexBufferObject::reserve ( size_t p_nbIndexes )

Reserves capacity for a number of indices.

Parameters

p_nbIndexes Number of indices.

Here is the call graph for this function:

◆ resize()

void spk::OpenGL::IndexBufferObject::resize ( size_t p_nbIndexes )

Resizes index storage and marks for sync.

Parameters

p_nbIndexes New element count.

Here is the call graph for this function:

◆ setIndexes()

void spk::OpenGL::IndexBufferObject::setIndexes ( const std::vector< uint32_t > & p_indexes )

Replaces indices by moving a vector.

Parameters

p_indexes Index data.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

includes/structure/opengl/spk_index_buffer_object.hpp
srcs/structure/opengl/spk_index_buffer_object.cpp
