Convenience wrapper for array buffers with vertex layout management. More...

#include <spk_vertex_buffer_object.hpp>

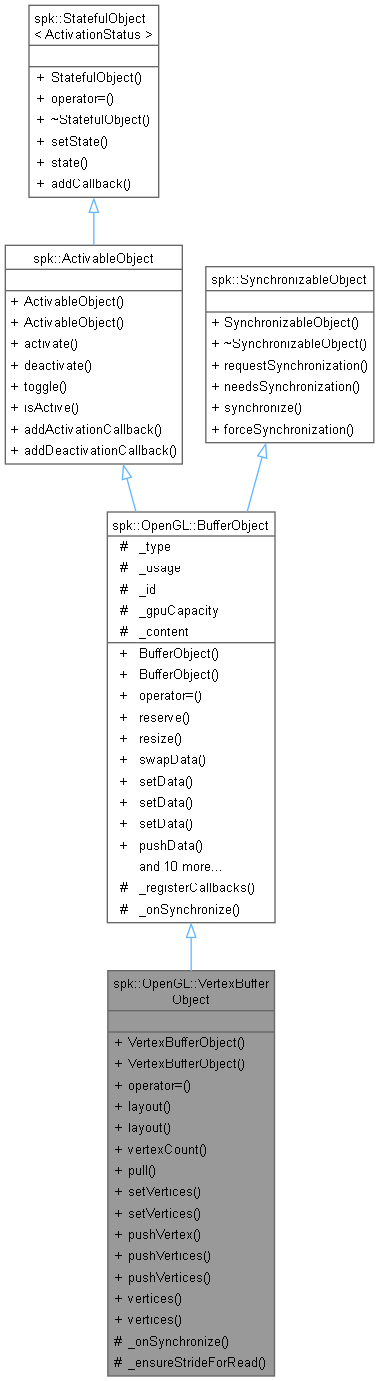

Inheritance diagram for spk::OpenGL::VertexBufferObject:

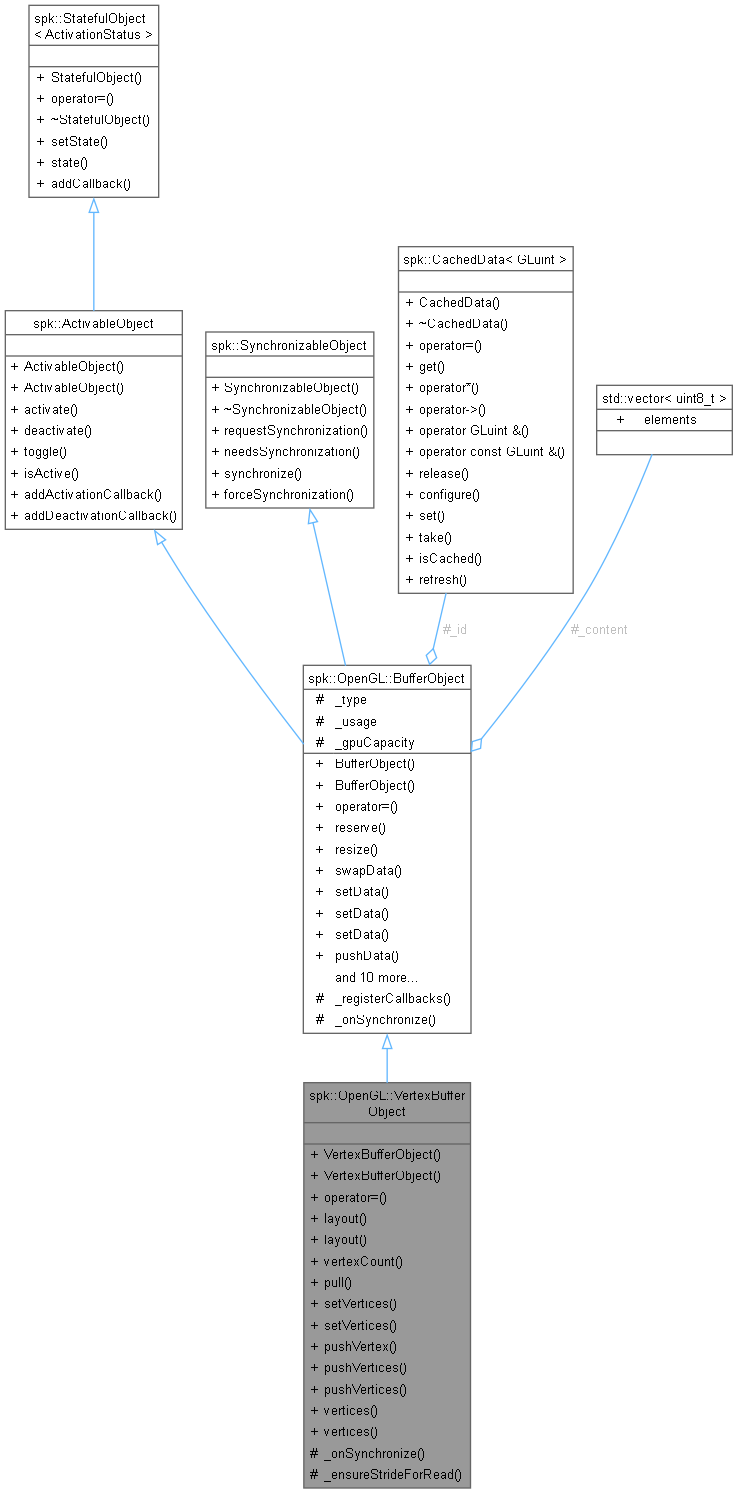

Collaboration diagram for spk::OpenGL::VertexBufferObject:

Classes
class	Layout
	Describes vertex attributes and ensures stride consistency. More...

Public Member Functions
	VertexBufferObject (Usage p_usage)
	Constructs VBO with a usage hint.
	VertexBufferObject (const VertexBufferObject &p_other)
	Copies GPU handle ownership and layout from another VBO.
VertexBufferObject &	operator= (const VertexBufferObject &p_other)
	Copies GPU handle ownership and layout from another VBO.
Layout &	layout ()
	Access layout descriptor.
const Layout &	layout () const
	Access layout descriptor.
size_t	vertexCount () const
	Number of vertices based on current stride and size.
template<typename TVertex>
std::vector< TVertex >	pull () const
	Downloads vertices from GPU memory.
template<typename TVertex>
void	setVertices (const std::vector< TVertex > &p_vertices)
	Replaces buffer contents with provided vertices.
template<typename TVertex>
void	setVertices (std::initializer_list< TVertex > p_vertices)
	Replaces buffer contents with initializer list of vertices.
template<typename TVertex>
void	pushVertex (const TVertex &p_vertex)
	Appends a single vertex to the buffer.
template<typename TVertex>
void	pushVertices (const std::vector< TVertex > &p_vertices)
	Appends multiple vertices to the buffer.
template<typename TVertex>
void	pushVertices (std::initializer_list< TVertex > p_vertices)
	Appends vertices from an initializer list.
template<typename TVertex>
std::span< TVertex >	vertices ()
	Provides mutable access to the CPU-side vertex span.
template<typename TVertex>
std::span< const TVertex >	vertices () const
	Provides immutable access to the CPU-side vertex span.
Public Member Functions inherited from spk::OpenGL::BufferObject
	BufferObject (const Type &p_type, const Usage &p_usage)
	Constructs a buffer with target type and usage hint.
	BufferObject (const BufferObject &p_other)
	Copies buffer configuration and staged content from another buffer.
BufferObject &	operator= (const BufferObject &p_other)
	Copies buffer configuration and staged content from another buffer.
void	reserve (size_t p_size)
	Reserves CPU-side storage without changing size.
void	resize (size_t p_size)
	Resizes CPU-side buffer and marks for sync.
void	swapData (std::vector< uint8_t > &p_data)
	Swaps CPU staging buffer with external vector.
template<typename TType>
void	setData (const std::vector< TType > &p_data)
	Replaces buffer contents with a vector of trivially copyable values.
template<typename TType>
void	setData (std::initializer_list< TType > p_data)
	Replaces buffer contents with an initializer list of values.
void	setData (const void *p_data, size_t p_size)
	Replaces CPU buffer content with raw data.
void	pushData (const void *p_data, size_t p_size)
	Appends raw data to CPU buffer.
template<typename TType>
void	pushData (const TType &p_value)
	Appends a single trivially copyable value to the buffer.
template<typename TType>
void	pushData (const std::vector< TType > &p_values)
	Appends a vector of trivially copyable values to the buffer.
template<typename TType>
void	pushData (std::initializer_list< TType > p_values)
	Appends an initializer list of trivially copyable values to the buffer.
void	editData (const void *p_data, size_t p_offset, size_t p_size)
	Overwrites a range of the CPU buffer.
template<typename TType>
void	editData (const TType &p_value, size_t p_offset)
	Overwrites part of the buffer with a single value.
size_t	size () const
	Returns the current CPU buffer size.
Buffer &	buffer ()
	Mutable access to the CPU staging buffer.
const Buffer &	buffer () const
	Const access to the CPU staging buffer.
Buffer::value_type *	data ()
	Mutable pointer to underlying bytes.
const Buffer::value_type *	data () const
	Const pointer to underlying bytes.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::SynchronizableObject
void	requestSynchronization () noexcept
	Marks the object as needing synchronization.
bool	needsSynchronization () const noexcept
	Checks if synchronization is pending.
void	synchronize ()
	Performs synchronization if requested.
void	forceSynchronization ()
	Forces synchronization regardless of current flag.

Protected Member Functions
void	_onSynchronize () override
	Uploads vertex data to GPU and configures attributes when requested.
void	_ensureStrideForRead (size_t p_vertexSize) const
	Validates that the layout stride matches a requested vertex size.
Protected Member Functions inherited from spk::OpenGL::BufferObject
void	_registerCallbacks ()
	Registers GPU lifecycle callbacks with the cached buffer id.

Additional Inherited Members
Public Types inherited from spk::OpenGL::BufferObject
enum class	Type : GLenum { Unknow = GL_INVALID_ENUM , Storage = GL_ARRAY_BUFFER , Element = GL_ELEMENT_ARRAY_BUFFER , Uniform = GL_UNIFORM_BUFFER , Texture = GL_TEXTURE_BUFFER , TransformFeedback = GL_TRANSFORM_FEEDBACK_BUFFER , ShaderStorage = GL_SHADER_STORAGE_BUFFER , PixelPack = GL_PIXEL_PACK_BUFFER , PixelUnpack = GL_PIXEL_UNPACK_BUFFER , DrawIndirect = GL_DRAW_INDIRECT_BUFFER , AtomicCounter = GL_ATOMIC_COUNTER_BUFFER }
	Supported OpenGL binding targets for buffer uploads.
enum class	Usage : GLenum { Unknow = GL_INVALID_ENUM , Static = GL_STATIC_DRAW , Dynamic = GL_DYNAMIC_DRAW , Stream = GL_STREAM_DRAW , StaticRead = GL_STATIC_READ , DynamicRead = GL_DYNAMIC_READ , StreamRead = GL_STREAM_READ , StaticCopy = GL_STATIC_COPY , DynamicCopy = GL_DYNAMIC_COPY , StreamCopy = GL_STREAM_COPY }
	Usage hints forwarded to the OpenGL driver.
using	Buffer = std::vector<uint8_t>
	CPU-side byte buffer used as staging before GPU upload.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.
Protected Attributes inherited from spk::OpenGL::BufferObject
Type	_type
	Buffer target selected at construction.
Usage	_usage
	Driver usage hint selected at construction.
spk::CachedData< GLuint >	_id
	Lazily created GPU buffer identifier.
size_t	_gpuCapacity = 0
	Capacity reserved on the GPU for the current buffer.
Buffer	_content
	CPU staging area mirrored to GPU on synchronization.

Detailed Description

Convenience wrapper for array buffers with vertex layout management.

See also: VertexBufferObject::Layout, BufferSetObject

Constructor & Destructor Documentation

◆ VertexBufferObject() [1/2]

spk::OpenGL::VertexBufferObject::VertexBufferObject ( Usage p_usage )

Constructs VBO with a usage hint.

Parameters

p_usage Usage flag.

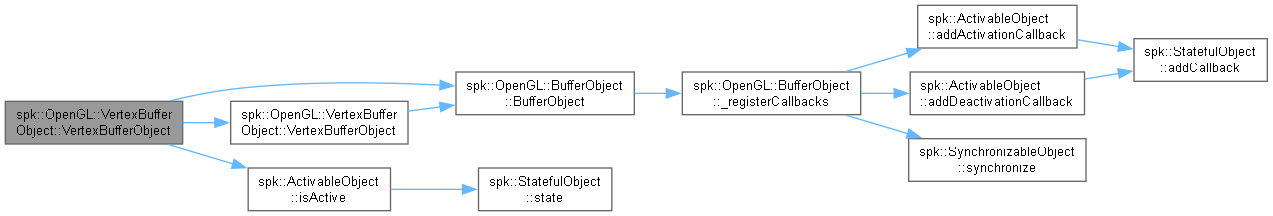

Here is the call graph for this function:

Here is the caller graph for this function:

◆ VertexBufferObject() [2/2]

spk::OpenGL::VertexBufferObject::VertexBufferObject ( const VertexBufferObject & p_other )

Copies GPU handle ownership and layout from another VBO.

Parameters

p_other Source VBO.

Here is the call graph for this function:

Member Function Documentation

◆ _ensureStrideForRead()

void spk::OpenGL::VertexBufferObject::_ensureStrideForRead ( size_t p_vertexSize ) const

protected

Validates that the layout stride matches a requested vertex size.

Parameters

p_vertexSize Size in bytes of the vertex type being read.

Here is the caller graph for this function:

◆ _onSynchronize()

void spk::OpenGL::VertexBufferObject::_onSynchronize ( )

overrideprotectedvirtual

Uploads vertex data to GPU and configures attributes when requested.

Reimplemented from spk::OpenGL::BufferObject.

Here is the call graph for this function:

◆ layout() [1/2]

VertexBufferObject::Layout & spk::OpenGL::VertexBufferObject::layout ( )

Access layout descriptor.

Returns: Mutable layout.

Here is the caller graph for this function:

◆ layout() [2/2]

const VertexBufferObject::Layout & spk::OpenGL::VertexBufferObject::layout ( ) const

Access layout descriptor.

Returns: Const layout.

◆ operator=()

VertexBufferObject & spk::OpenGL::VertexBufferObject::operator= ( const VertexBufferObject & p_other )

Copies GPU handle ownership and layout from another VBO.

Parameters

p_other Source VBO.

Returns: Reference to this.

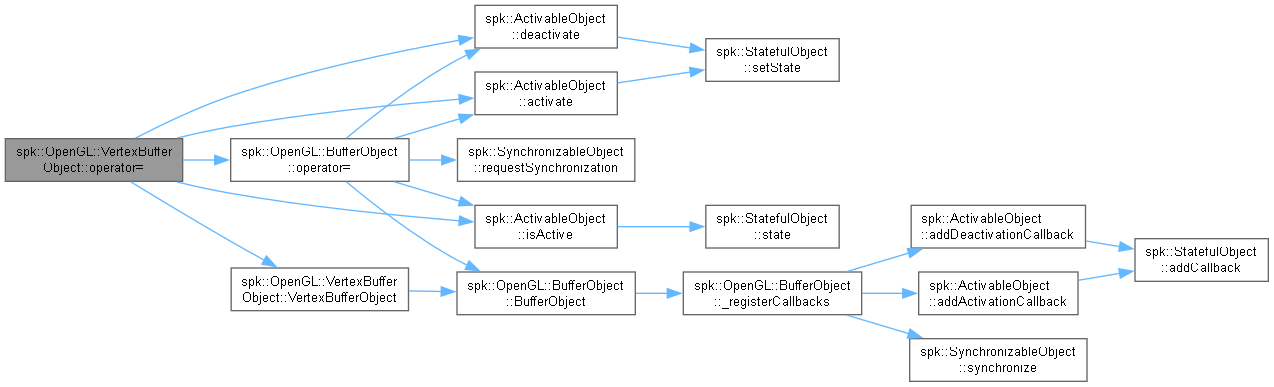

Here is the call graph for this function:

◆ pull()

template<typename TVertex>

std::vector< TVertex > spk::OpenGL::VertexBufferObject::pull ( ) const

inline

Downloads vertices from GPU memory.

Template Parameters

TVertex Trivially copyable vertex type expected from the buffer.

Returns: Vector containing all vertices in the buffer.

Here is the call graph for this function:

◆ pushVertex()

template<typename TVertex>

void spk::OpenGL::VertexBufferObject::pushVertex ( const TVertex & p_vertex )

inline

Appends a single vertex to the buffer.

Template Parameters

TVertex Trivially copyable vertex type stored in the buffer.

Parameters

p_vertex Vertex to append.

Here is the call graph for this function:

◆ pushVertices() [1/2]

template<typename TVertex>

void spk::OpenGL::VertexBufferObject::pushVertices ( const std::vector< TVertex > & p_vertices )

inline

Appends multiple vertices to the buffer.

Template Parameters

TVertex Trivially copyable vertex type stored in the buffer.

Parameters

p_vertices Vertices to append.

Here is the call graph for this function:

◆ pushVertices() [2/2]

template<typename TVertex>

void spk::OpenGL::VertexBufferObject::pushVertices ( std::initializer_list< TVertex > p_vertices )

inline

Appends vertices from an initializer list.

Template Parameters

TVertex Trivially copyable vertex type stored in the buffer.

Parameters

p_vertices Vertices to append.

Here is the call graph for this function:

◆ setVertices() [1/2]

template<typename TVertex>

void spk::OpenGL::VertexBufferObject::setVertices ( const std::vector< TVertex > & p_vertices )

inline

Replaces buffer contents with provided vertices.

Template Parameters

TVertex Trivially copyable vertex type stored in the buffer.

Parameters

p_vertices Vertex data to upload.

Here is the call graph for this function:

◆ setVertices() [2/2]

template<typename TVertex>

void spk::OpenGL::VertexBufferObject::setVertices ( std::initializer_list< TVertex > p_vertices )

inline

Replaces buffer contents with initializer list of vertices.

Template Parameters

TVertex Trivially copyable vertex type stored in the buffer.

Parameters

p_vertices Vertex data to upload.

Here is the call graph for this function:

◆ vertexCount()

size_t spk::OpenGL::VertexBufferObject::vertexCount ( ) const

Number of vertices based on current stride and size.

Returns: Vertex count.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vertices() [1/2]

template<typename TVertex>

std::span< TVertex > spk::OpenGL::VertexBufferObject::vertices ( )

inline

Provides mutable access to the CPU-side vertex span.

Template Parameters

TVertex Vertex POD type.

Returns: Span of vertices stored locally.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vertices() [2/2]

template<typename TVertex>

std::span< const TVertex > spk::OpenGL::VertexBufferObject::vertices ( ) const

inline

Provides immutable access to the CPU-side vertex span.

Template Parameters

TVertex Vertex POD type.

Returns: Const span of vertices stored locally.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

includes/structure/opengl/spk_vertex_buffer_object.hpp
srcs/structure/opengl/spk_vertex_buffer_object.cpp

Classes

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ VertexBufferObject() [1/2]

◆ VertexBufferObject() [2/2]

Member Function Documentation

◆ _ensureStrideForRead()

◆ _onSynchronize()

◆ layout() [1/2]

◆ layout() [2/2]

◆ operator=()

◆ pull()

◆ pushVertex()

◆ pushVertices() [1/2]

◆ pushVertices() [2/2]

◆ setVertices() [1/2]

◆ setVertices() [2/2]

◆ vertexCount()

◆ vertices() [1/2]

◆ vertices() [2/2]
