spk::OpenGL::BufferSetObject Class Reference

Bundles VAO, VBO, and IBO with synchronized activation. More...

#include <spk_buffer_set_object.hpp>

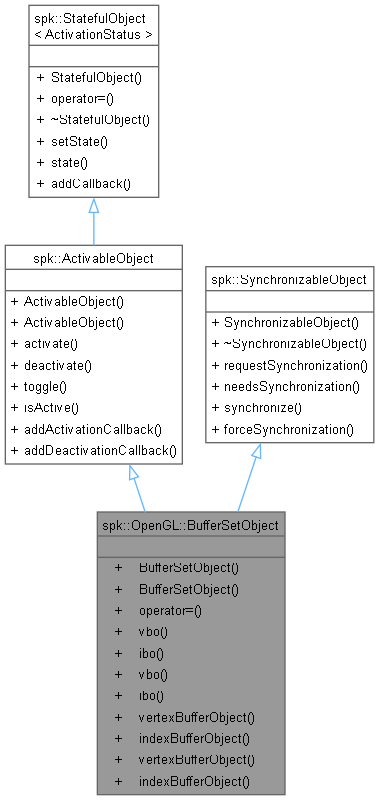

Inheritance diagram for spk::OpenGL::BufferSetObject:

Collaboration diagram for spk::OpenGL::BufferSetObject:

Public Member Functions
	BufferSetObject (BufferObject::Usage p_usage)
	Builds a buffer set with a shared usage hint.
	BufferSetObject (const BufferSetObject &p_other)
	Copies buffer set resources, keeping usage flags consistent.
BufferSetObject &	operator= (const BufferSetObject &p_other)
	Assigns buffer set contents from another instance.
VertexBufferObject &	vbo ()
	Access mutable VBO.
IndexBufferObject &	ibo ()
	Access mutable IBO.
const VertexBufferObject &	vbo () const
	Access const VBO.
const IndexBufferObject &	ibo () const
	Access const IBO.
VertexBufferObject &	vertexBufferObject ()
	Alias for vbo.
IndexBufferObject &	indexBufferObject ()
	Alias for ibo.
const VertexBufferObject &	vertexBufferObject () const
	Const alias for vbo.
const IndexBufferObject &	indexBufferObject () const
	Const alias for ibo.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::SynchronizableObject
void	requestSynchronization () noexcept
	Marks the object as needing synchronization.
bool	needsSynchronization () const noexcept
	Checks if synchronization is pending.
void	synchronize ()
	Performs synchronization if requested.
void	forceSynchronization ()
	Forces synchronization regardless of current flag.

Additional Inherited Members
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Detailed Description

Bundles VAO, VBO, and IBO with synchronized activation.

See also

VertexBufferObject, IndexBufferObject, VertexArrayObject

Constructor & Destructor Documentation

BufferSetObject() [1/2]

spk::OpenGL::BufferSetObject::BufferSetObject ( BufferObject::Usage p_usage )

explicit

Builds a buffer set with a shared usage hint.

Parameters

p_usage

Usage applied to VBO/IBO.

Here is the caller graph for this function:

BufferSetObject() [2/2]

spk::OpenGL::BufferSetObject::BufferSetObject

(

const BufferSetObject &

p_other

)

Copies buffer set resources, keeping usage flags consistent.

Parameters

p_other

Buffer set to duplicate.

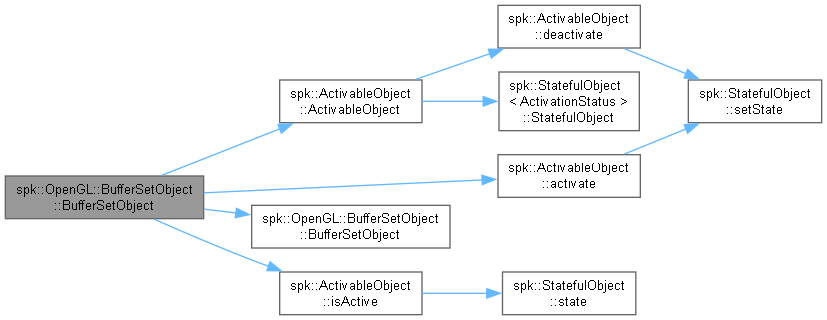

Here is the call graph for this function:

Member Function Documentation

ibo() [1/2]

IndexBufferObject & spk::OpenGL::BufferSetObject::ibo

(

)

Access mutable IBO.

Returns

Index buffer object.

ibo() [2/2]

const IndexBufferObject & spk::OpenGL::BufferSetObject::ibo

(

)

const

Access const IBO.

Returns

Index buffer object.

indexBufferObject() [1/2]

IndexBufferObject & spk::OpenGL::BufferSetObject::indexBufferObject

(

)

Alias for ibo.

Returns

Mutable index buffer object.

indexBufferObject() [2/2]

const IndexBufferObject & spk::OpenGL::BufferSetObject::indexBufferObject

(

)

const

Const alias for ibo.

Returns

Const index buffer object.

operator=()

BufferSetObject & spk::OpenGL::BufferSetObject::operator=

(

const BufferSetObject &

p_other

)

Assigns buffer set contents from another instance.

Parameters

p_other

Buffer set to copy from.

Returns

Reference to this buffer set.

Here is the call graph for this function:

vbo() [1/2]

VertexBufferObject & spk::OpenGL::BufferSetObject::vbo

(

)

Access mutable VBO.

Returns

Vertex buffer object.

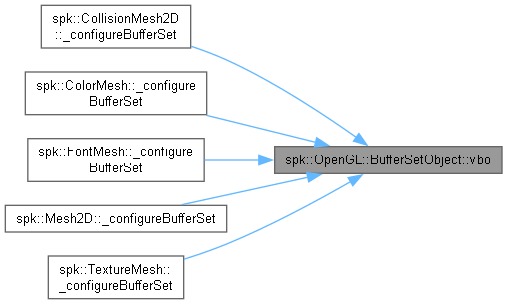

Here is the caller graph for this function:

vbo() [2/2]

const VertexBufferObject & spk::OpenGL::BufferSetObject::vbo

(

)

const

Access const VBO.

Returns

Vertex buffer object.

vertexBufferObject() [1/2]

VertexBufferObject & spk::OpenGL::BufferSetObject::vertexBufferObject

(

)

Alias for vbo.

Returns

Mutable vertex buffer object.

vertexBufferObject() [2/2]

const VertexBufferObject & spk::OpenGL::BufferSetObject::vertexBufferObject

(

)

const

Const alias for vbo.

Returns

Const vertex buffer object.

---

The documentation for this class was generated from the following files:

• includes/structure/opengl/spk_buffer_set_object.hpp
• srcs/structure/opengl/spk_buffer_set_object.cpp
