Entity owning a Transform2D component. More...

#include <spk_entity_2d.hpp>

Inheritance diagram for spk::Entity2D:

Collaboration diagram for spk::Entity2D:

Public Member Functions
	Entity2D (const std::wstring &p_name, spk::Entity *p_parent=nullptr)
	Creates a 2D entity with an optional parent.
Transform2D &	transform ()
	Returns the entity transform.
const Transform2D &	transform () const
	Returns the entity transform.
void	notifyChildTransformsEdited ()
	Notifies children that their parent transform changed.
Public Member Functions inherited from spk::Entity
	Entity (const std::wstring &p_name, Entity *p_owner=nullptr)
	Creates an entity with a name and optional owner.
	Entity ()
	Creates an unnamed entity.
	Entity (const Entity &)=delete
Entity &	operator= (const Entity &)=delete
virtual void	setName (const std::wstring &p_name)
	Sets the entity name.
void	setPriority (const int &p_priority)
	Sets the entity priority.
void	addTag (const std::wstring &p_tag)
	Adds a tag to the entity.
void	removeTag (const std::wstring &p_tag)
	Removes a tag from the entity.
void	clearTags ()
	Clears all tags.
bool	containTag (const std::wstring &p_tag) const
	Checks if the entity contains a tag.
void	setEngine (GameEngine *p_engine)
	Assigns the owning game engine.
GameEngine *	engine ()
	Returns the owning game engine.
const GameEngine *	engine () const
	Returns the owning game engine.
const std::wstring &	name () const
	Returns the entity name.
const std::set< std::wstring > &	tags () const
	Returns the set of tags.
int	priority () const
	Returns the entity priority.
size_t	componentCount () const
	Returns the number of components.
void	removeAllComponents ()
	Removes all components from the entity.
void	addChild (Entity *p_child) override
	Adds a child entity.
void	removeChild (Entity *p_child) override
	Removes a child entity.
void	clearChildren ()
	Removes all children.
std::vector< Entity * > &	children () override
	Returns mutable children list.
const std::vector< Entity * > &	children () const override
	Returns children list.
template<typename TComponentType, typename... TArgs>
TComponentType &	addComponent (TArgs &&...p_args)
	Creates and adds a component of the given type.
void	removeComponent (const std::wstring &p_name)
	Removes a component by name.
template<typename TComponentType>
TComponentType *	getComponent (const std::wstring &p_name=L"")
	Returns the first component matching the type and optional name.
template<typename TComponentType>
std::vector< TComponentType * >	getComponents ()
	Returns all components matching the type.
template<typename TComponentType>
const TComponentType *	getComponent (const std::wstring &p_name=L"") const
	Returns the first component matching the type and optional name.
template<typename TComponentType>
std::vector< const TComponentType * >	getComponents () const
	Returns all components matching the type.
virtual void	handleGeometryChange (const spk::Extend2D &p_geometry) final
	Dispatches geometry change events to components.
virtual void	handlePaintEvent (spk::PaintEvent &p_event) final
	Dispatches paint events to components.
virtual void	handleKeyPressEvent (spk::KeyPressEvent &p_event) final
	Dispatches key press events to components.
virtual void	handleKeyReleaseEvent (spk::KeyReleaseEvent &p_event) final
	Dispatches key release events to components.
virtual void	handleGlyphEvent (spk::GlyphEvent &p_event) final
	Dispatches glyph input events to components.
virtual void	handleMousePressEvent (spk::MousePressEvent &p_event) final
	Dispatches mouse press events to components.
virtual void	handleMouseReleaseEvent (spk::MouseReleaseEvent &p_event) final
	Dispatches mouse release events to components.
virtual void	handleMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event) final
	Dispatches mouse double click events to components.
virtual void	handleMouseMotionEvent (spk::MouseMotionEvent &p_event) final
	Dispatches mouse motion events to components.
virtual void	handleMouseWheelEvent (spk::MouseWheelEvent &p_event) final
	Dispatches mouse wheel events to components.
virtual void	handleEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event) final
	Dispatches enter resize mode events to components.
virtual void	handleResizeEvent (spk::ResizeEvent &p_event) final
	Dispatches resize events to components.
virtual void	handleExitResizeModeEvent (spk::ExitResizeModeEvent &p_event) final
	Dispatches exit resize mode events to components.
virtual void	handleQuitEvent (spk::QuitEvent &p_event) final
	Dispatches quit events to components.
virtual void	handleMoveEvent (spk::MoveEvent &p_event) final
	Dispatches move events to components.
virtual void	handleFullScreenModeEvent (spk::FullScreenModeEvent &p_event) final
	Dispatches fullscreen events to components.
virtual void	handleMaximizedModeEvent (spk::MaximizedModeEvent &p_event) final
	Dispatches maximized events to components.
virtual void	handleFocusEvent (spk::FocusEvent &p_event) final
	Dispatches focus events to components.
virtual void	handleUpdateEvent (spk::UpdateEvent &p_event) final
	Dispatches update events to components.
void	sortChildren ()
	Sorts children by priority.
void	sortComponent ()
	Sorts components by priority.
Entity *	getChild (const std::wstring &p_name)
	Returns the first child matching the name.
const Entity *	getChild (const std::wstring &p_name) const
	Returns the first child matching the name.
std::vector< Entity * >	getChildren (const std::wstring &p_name)
	Returns all children matching the name.
std::vector< const Entity * >	getChildren (const std::wstring &p_name) const
	Returns all children matching the name.
bool	contains (const std::wstring &p_name) const
	Checks if a child with the name exists.
size_t	count (const std::wstring &p_name) const
	Counts children matching the name.
Entity *	getChildByTag (const std::wstring &p_tag)
	Returns the first child matching a tag.
const Entity *	getChildByTag (const std::wstring &p_tag) const
	Returns the first child matching a tag.
std::vector< Entity * >	getChildrenByTag (const std::wstring &p_tag)
	Returns all children matching a tag.
std::vector< const Entity * >	getChildrenByTag (const std::wstring &p_tag) const
	Returns all children matching a tag.
bool	containsTag (const std::wstring &p_tag) const
	Checks if a child with the tag exists.
size_t	countTag (const std::wstring &p_tag) const
	Counts children matching a tag.
Entity *	getChildByTags (const std::span< const std::wstring > &p_tags, spk::BinaryOperator p_binaryOperator=spk::BinaryOperator::And)
	Returns the first child matching a set of tags.
const Entity *	getChildByTags (const std::span< const std::wstring > &p_tags, spk::BinaryOperator p_binaryOperator=spk::BinaryOperator::And) const
	Returns the first child matching a set of tags.
std::vector< Entity * >	getChildrenByTags (const std::span< const std::wstring > &p_tags, spk::BinaryOperator p_binaryOperator=spk::BinaryOperator::And)
	Returns all children matching a set of tags.
std::vector< const Entity * >	getChildrenByTags (const std::span< const std::wstring > &p_tags, spk::BinaryOperator p_binaryOperator=spk::BinaryOperator::And) const
	Returns all children matching a set of tags.
bool	containsTags (const std::span< const std::wstring > &p_tags, spk::BinaryOperator p_binaryOperator=spk::BinaryOperator::And) const
	Checks if a child matching all tags exists.
size_t	countTags (const std::span< const std::wstring > &p_tags, spk::BinaryOperator p_binaryOperator=spk::BinaryOperator::And) const
	Counts children matching all tags.
Public Member Functions inherited from spk::InherenceObject< Entity >
Entity *	parent () const
	Returns the parent pointer.
void	clearChildren ()
	Clears the children list and resets each child's parent pointer.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.

Additional Inherited Members
Public Types inherited from spk::Entity
using	Contract = spk::ActivableObject::Contract
	Contract type for activation callbacks.
using	Job = spk::ActivableObject::Job
	Job callback type for activation callbacks.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Detailed Description

Entity owning a Transform2D component.

Constructor & Destructor Documentation

◆ Entity2D()

spk::Entity2D::Entity2D	(	const std::wstring &	p_name,
		spk::Entity *	p_parent = nullptr )

Creates a 2D entity with an optional parent.

Parameters

p_name	Entity name.
p_parent	Optional parent entity.

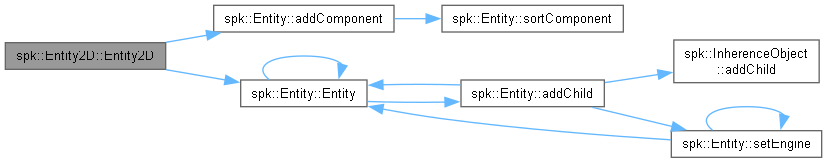

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

◆ transform() [1/2]

Transform2D & spk::Entity2D::transform ( )

Returns the entity transform.

Returns: Reference to the Transform2D component.

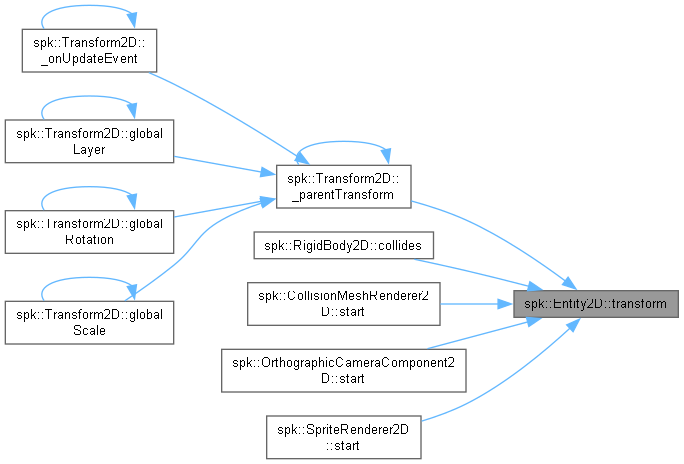

Here is the caller graph for this function:

◆ transform() [2/2]

const Transform2D & spk::Entity2D::transform ( ) const
