spk::OpenGL::UniformBufferObject Class Reference

Wraps a UBO with a BufferLayout for structured writes. More...

#include <spk_uniform_buffer_object.hpp>

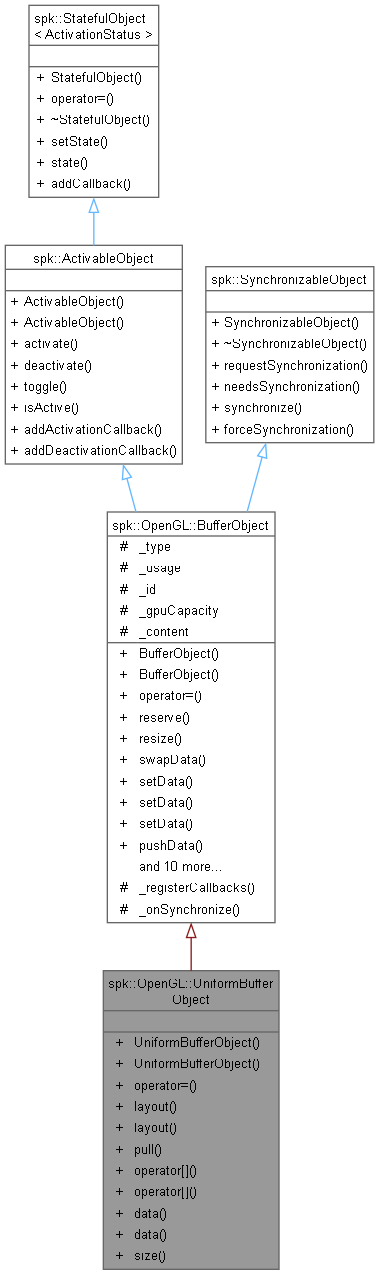

Inheritance diagram for spk::OpenGL::UniformBufferObject:

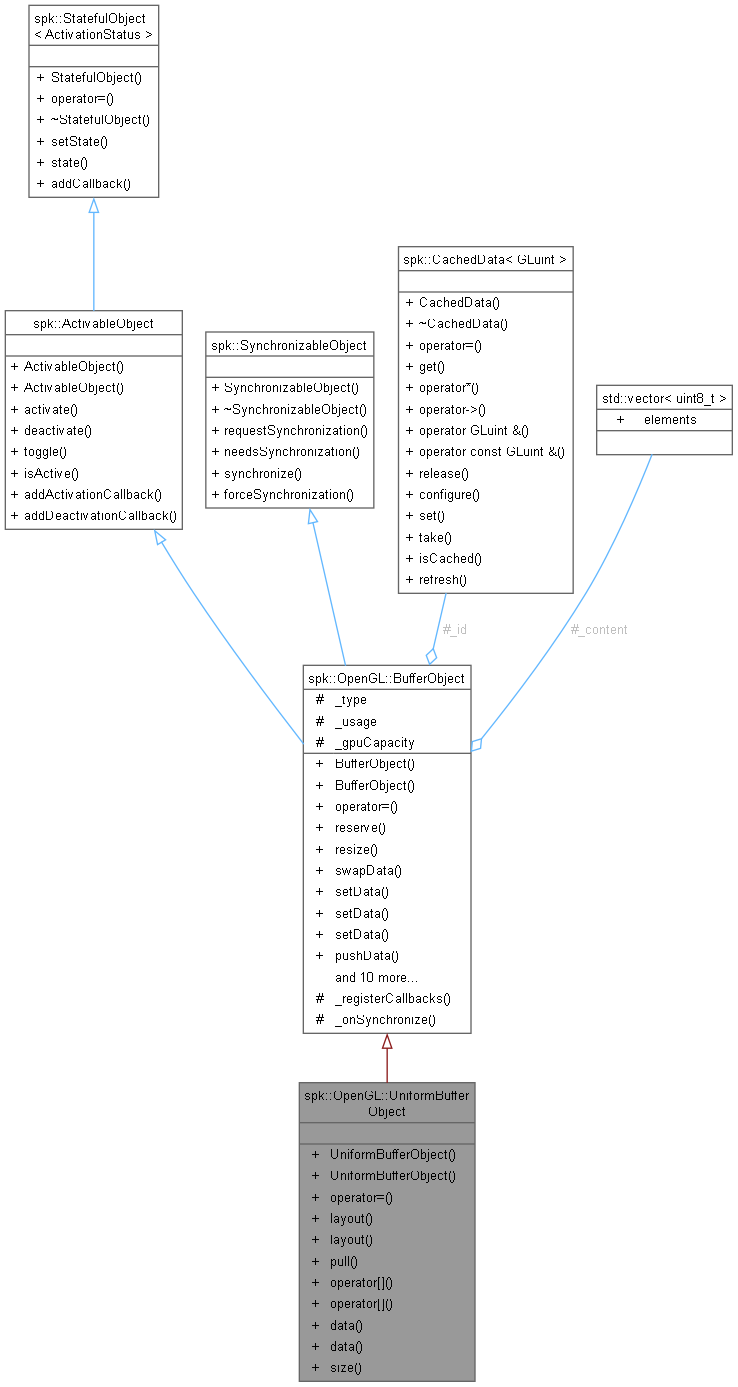

Collaboration diagram for spk::OpenGL::UniformBufferObject:

Public Member Functions
	UniformBufferObject (GLuint p_bindingPoint, BufferObject::Usage p_usage, const size_t &p_size)
	Creates a UBO bound to a binding point.
	UniformBufferObject (const UniformBufferObject &p_other)
	Copies layout and buffer binding information from another UBO.
UniformBufferObject &	operator= (const UniformBufferObject &p_other)
	Copies layout and buffer binding information from another UBO.
BufferLayout &	layout ()
	Accesses the layout describing the UBO contents.
const BufferLayout &	layout () const
	Accesses the layout describing the UBO contents.
template<typename TType>
TType	pull () const
	Reads the entire UBO content as a trivially copyable type.
BufferLayout::Element &	operator[] (const std::wstring &p_name)
	Accesses a named field within the layout.
const BufferLayout::Element &	operator[] (const std::wstring &p_name) const
	Accesses a named field within the layout.
Buffer::value_type *	data ()
	Mutable pointer to underlying bytes.
const Buffer::value_type *	data () const
	Const pointer to underlying bytes.
size_t	size () const
	Returns the current CPU buffer size.

Detailed Description

Wraps a UBO with a BufferLayout for structured writes.

See also

BufferLayout, ShaderStorageBufferObject

Constructor & Destructor Documentation

UniformBufferObject() [1/2]

spk::OpenGL::UniformBufferObject::UniformBufferObject	(	GLuint	p_bindingPoint,
		BufferObject::Usage	p_usage,
		const size_t &	p_size )

Creates a UBO bound to a binding point.

Parameters

p_bindingPoint	Binding index.
p_usage	Usage hint.
p_size	Initial buffer size.

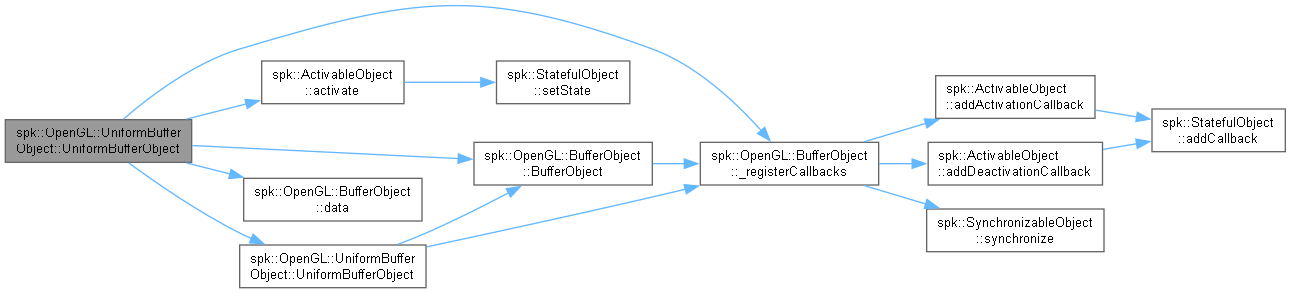

Here is the call graph for this function:

Here is the caller graph for this function:

UniformBufferObject() [2/2]

spk::OpenGL::UniformBufferObject::UniformBufferObject

(

const UniformBufferObject &

p_other

)

Copies layout and buffer binding information from another UBO.

Parameters

p_other

Source buffer.

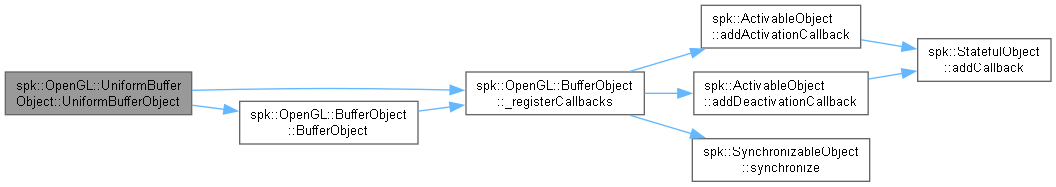

Here is the call graph for this function:

Member Function Documentation

data() [1/2]

BufferObject::Buffer::value_type * spk::OpenGL::BufferObject::data

(

)

Mutable pointer to underlying bytes.

Returns

Pointer or nullptr if empty.

data() [2/2]

const BufferObject::Buffer::value_type * spk::OpenGL::BufferObject::data

(

)

const

Const pointer to underlying bytes.

Returns

Pointer or nullptr if empty.

layout() [1/2]

BufferLayout & spk::OpenGL::UniformBufferObject::layout

(

)

Accesses the layout describing the UBO contents.

Returns

Mutable layout.

layout() [2/2]

const BufferLayout & spk::OpenGL::UniformBufferObject::layout

(

)

const

Accesses the layout describing the UBO contents.

Returns

Const layout.

operator=()

UniformBufferObject & spk::OpenGL::UniformBufferObject::operator=

(

const UniformBufferObject &

p_other

)

Copies layout and buffer binding information from another UBO.

Parameters

p_other

Source buffer.

Returns

Reference to this.

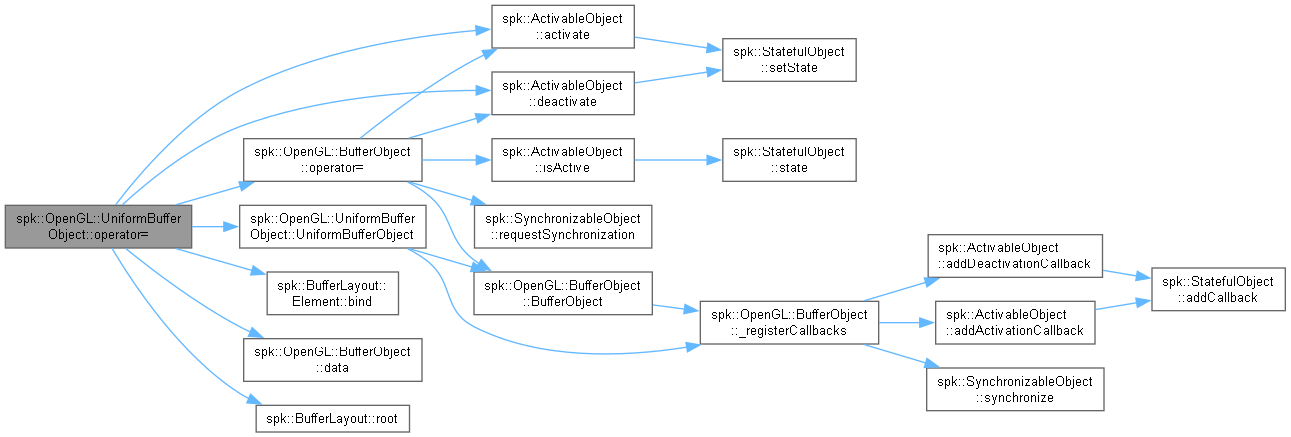

Here is the call graph for this function:

operator[]() [1/2]

BufferLayout::Element & spk::OpenGL::UniformBufferObject::operator[]

(

const std::wstring &

p_name

)

Accesses a named field within the layout.

Parameters

p_name

Element identifier.

Returns

Mutable layout element.

operator[]() [2/2]

const BufferLayout::Element & spk::OpenGL::UniformBufferObject::operator[]

(

const std::wstring &

p_name

)

const

Accesses a named field within the layout.

Parameters

p_name

Element identifier.

Returns

Const layout element.

pull()

template<typename TType>

TType spk::OpenGL::UniformBufferObject::pull ( ) const

inline

Reads the entire UBO content as a trivially copyable type.

Template Parameters

TType

Trivially copyable type expected in the buffer.

Returns

Copy of the GPU buffer cast to the requested type.

Exceptions

std::runtime_error

When the GPU buffer is smaller than the requested type.

size()

size_t spk::OpenGL::BufferObject::size

(

)

const

Returns the current CPU buffer size.

Returns

Byte size.

---

The documentation for this class was generated from the following files:

• includes/structure/opengl/spk_uniform_buffer_object.hpp
• srcs/structure/opengl/spk_uniform_buffer_object.cpp
