spk::OpenGL::ShaderStorageBufferObject Class Reference

Wraps a SSBO with fixed and optional dynamic array sections using BufferLayout. More...

#include <spk_shader_storage_buffer_object.hpp>

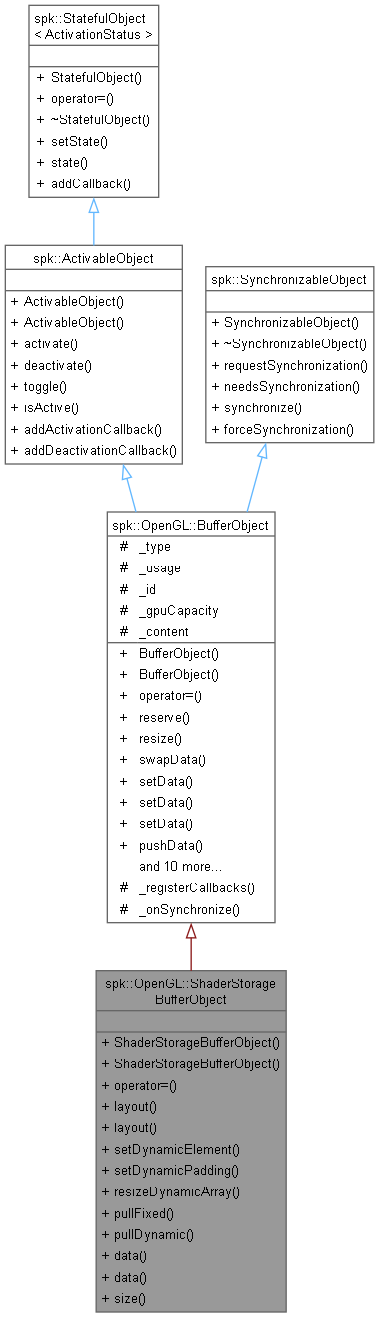

Inheritance diagram for spk::OpenGL::ShaderStorageBufferObject:

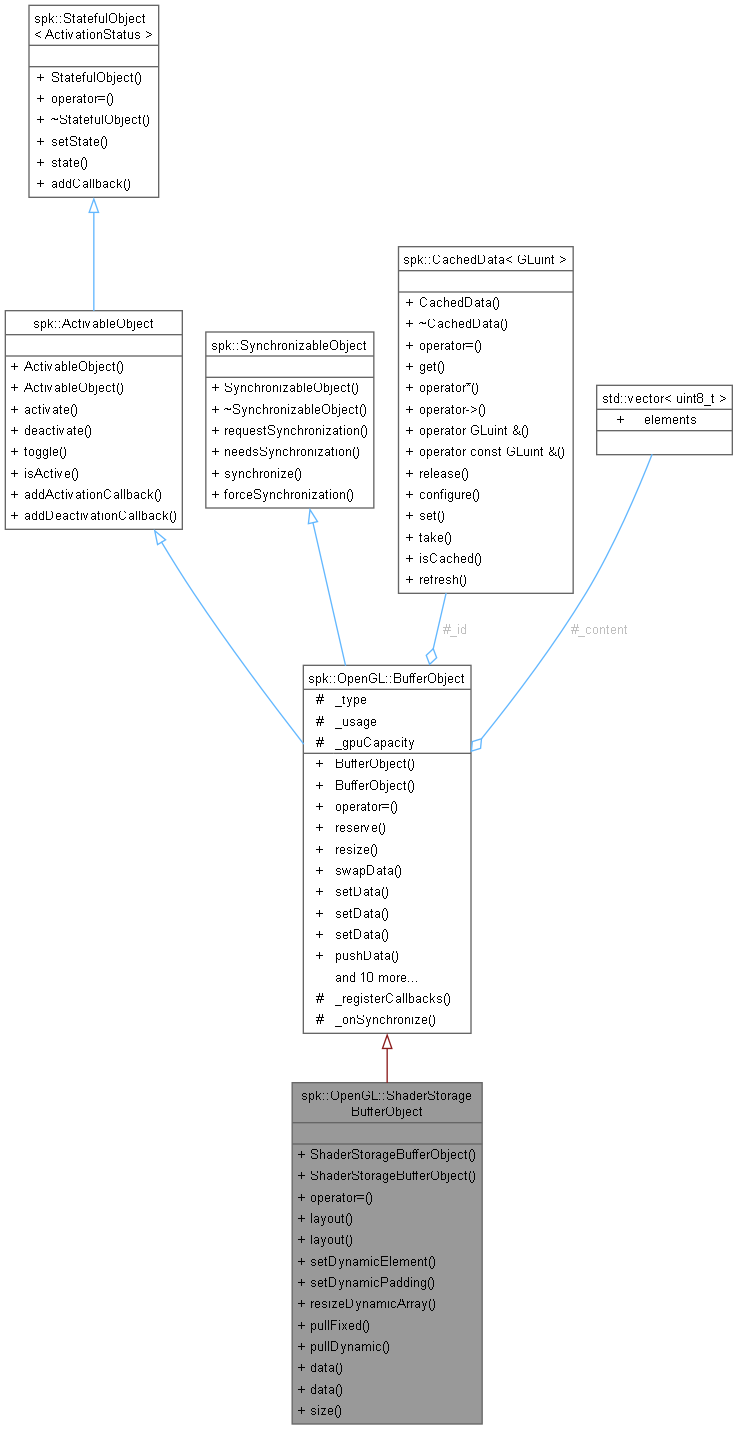

Collaboration diagram for spk::OpenGL::ShaderStorageBufferObject:

Public Member Functions
	ShaderStorageBufferObject (GLuint p_bindingPoint, BufferObject::Usage p_usage, const size_t &p_size)
	Creates an SSBO bound to a binding point.
	ShaderStorageBufferObject (const ShaderStorageBufferObject &p_other)
	Copies buffer binding and layout configuration from another SSBO.
ShaderStorageBufferObject &	operator= (const ShaderStorageBufferObject &p_other)
	Copies buffer binding and layout configuration from another SSBO.
BufferLayout &	layout ()
	Accesses the layout describing the buffer.
const BufferLayout &	layout () const
	Accesses the layout describing the buffer.
void	setDynamicElement (const std::wstring &p_name, const BufferLayout::Element &p_elementPrototype)
	Defines the prototype for the dynamic array section.
void	setDynamicPadding (std::size_t p_padding)
	Sets padding between fixed and dynamic sections.
void	resizeDynamicArray (std::size_t p_newCount)
	Resizes the dynamic array section.
template<typename TType>
TType	pullFixed () const
	Reads the fixed section of the SSBO into a trivially copyable type.
template<typename TElement>
std::vector< TElement >	pullDynamic () const
	Reads the dynamic array section into a vector of elements.
Buffer::value_type *	data ()
	Mutable pointer to underlying bytes.
const Buffer::value_type *	data () const
	Const pointer to underlying bytes.
size_t	size () const
	Returns the current CPU buffer size.

Detailed Description

Wraps a SSBO with fixed and optional dynamic array sections using BufferLayout.

See also

BufferLayout, UniformBufferObject

Constructor & Destructor Documentation

ShaderStorageBufferObject() [1/2]

spk::OpenGL::ShaderStorageBufferObject::ShaderStorageBufferObject	(	GLuint	p_bindingPoint,
		BufferObject::Usage	p_usage,
		const size_t &	p_size )

Creates an SSBO bound to a binding point.

Parameters

p_bindingPoint	Binding index.
p_usage	Usage hint.
p_size	Initial buffer size.

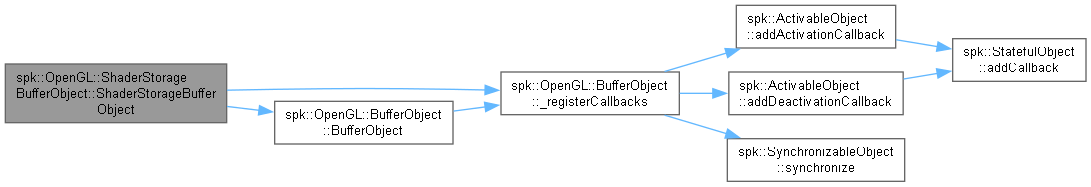

Here is the call graph for this function:

Here is the caller graph for this function:

ShaderStorageBufferObject() [2/2]

spk::OpenGL::ShaderStorageBufferObject::ShaderStorageBufferObject

(

const ShaderStorageBufferObject &

p_other

)

Copies buffer binding and layout configuration from another SSBO.

Parameters

p_other

Source buffer.

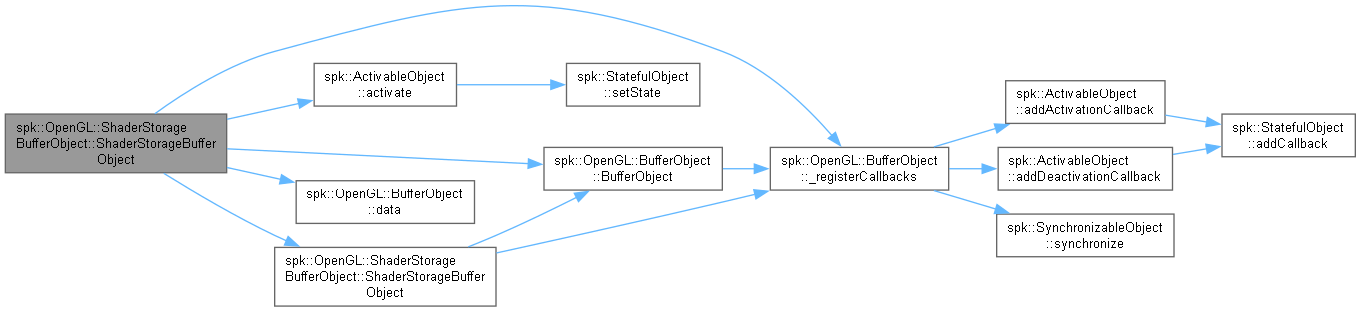

Here is the call graph for this function:

Member Function Documentation

data() [1/2]

BufferObject::Buffer::value_type * spk::OpenGL::BufferObject::data

(

)

Mutable pointer to underlying bytes.

Returns

Pointer or nullptr if empty.

data() [2/2]

const BufferObject::Buffer::value_type * spk::OpenGL::BufferObject::data

(

)

const

Const pointer to underlying bytes.

Returns

Pointer or nullptr if empty.

layout() [1/2]

BufferLayout & spk::OpenGL::ShaderStorageBufferObject::layout

(

)

Accesses the layout describing the buffer.

Returns

Mutable layout.

layout() [2/2]

const BufferLayout & spk::OpenGL::ShaderStorageBufferObject::layout

(

)

const

Accesses the layout describing the buffer.

Returns

Const layout.

operator=()

ShaderStorageBufferObject & spk::OpenGL::ShaderStorageBufferObject::operator=

(

const ShaderStorageBufferObject &

p_other

)

Copies buffer binding and layout configuration from another SSBO.

Parameters

p_other

Source buffer.

Returns

Reference to this.

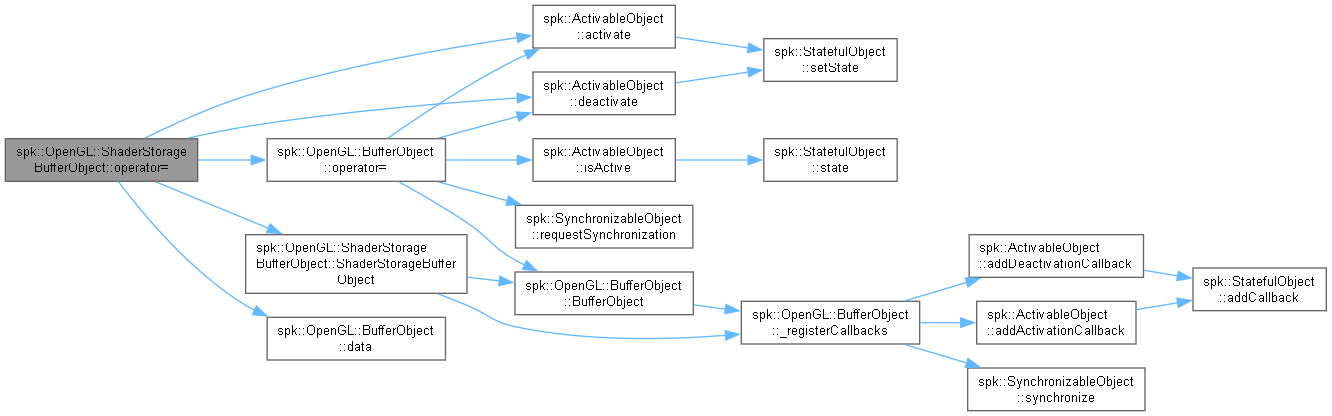

Here is the call graph for this function:

pullDynamic()

template<typename TElement>

std::vector< TElement > spk::OpenGL::ShaderStorageBufferObject::pullDynamic ( ) const

inline

Reads the dynamic array section into a vector of elements.

Template Parameters

TElement

Trivially copyable element type.

Returns

Vector containing the dynamic portion.

pullFixed()

template<typename TType>

TType spk::OpenGL::ShaderStorageBufferObject::pullFixed ( ) const

inline

Reads the fixed section of the SSBO into a trivially copyable type.

Template Parameters

TType

Destination POD type.

Returns

Value copied from the beginning of the buffer.

resizeDynamicArray()

void spk::OpenGL::ShaderStorageBufferObject::resizeDynamicArray

(

std::size_t

p_newCount

)

Resizes the dynamic array section.

Parameters

p_newCount

Element count.

Here is the call graph for this function:

Here is the caller graph for this function:

setDynamicElement()

void spk::OpenGL::ShaderStorageBufferObject::setDynamicElement	(	const std::wstring &	p_name,
		const BufferLayout::Element &	p_elementPrototype )

Defines the prototype for the dynamic array section.

Parameters

p_name	Name of the dynamic array field.
p_elementPrototype	Element layout to repeat.

setDynamicPadding()

void spk::OpenGL::ShaderStorageBufferObject::setDynamicPadding

(

std::size_t

p_padding

)

Sets padding between fixed and dynamic sections.

Parameters

p_padding

Byte padding.

Here is the call graph for this function:

size()

size_t spk::OpenGL::BufferObject::size

(

)

const

Returns the current CPU buffer size.

Returns

Byte size.

---

The documentation for this class was generated from the following files:

• includes/structure/opengl/spk_shader_storage_buffer_object.hpp
• srcs/structure/opengl/spk_shader_storage_buffer_object.cpp
