spk::Lumina::Pipeline Class Reference

Loads shader artifacts and orchestrates draw calls with strongly typed constants and attributes. More...

#include <spk_pipeline.hpp>

Collaboration diagram for spk::Lumina::Pipeline:

Classes
class	Constant
	Encapsulates a shader resource (UBO, SSBO, or sampler) bound by a pipeline. More...
class	Object
	Represents a drawable entity configured with pipeline attributes. More...

Public Member Functions
	Pipeline (const std::string &p_input)
	Builds a pipeline from a JSON artifact string.
	Pipeline (Pipeline &&p_other) noexcept=default
	Moves pipeline ownership to a new instance.
Pipeline &	operator= (Pipeline &&p_other) noexcept=default
	Move-assigns pipeline ownership.
	Pipeline (const Pipeline &)=delete
Pipeline &	operator= (const Pipeline &)=delete
Object	createObject ()
	Instantiates a drawable object using the pipeline layout.
std::shared_ptr< spk::OpenGL::BufferSetObject >	createBufferSet () const
	Creates a buffer set matching the pipeline's vertex layout.
spk::OpenGL::FrameBufferObject &	frameBuffer (const std::wstring &p_name)
	Accesses a framebuffer configured on the pipeline.
const spk::OpenGL::FrameBufferObject &	frameBuffer (const std::wstring &p_name) const
	Accesses a framebuffer configured on the pipeline.

Static Public Member Functions
static Pipeline	fromFile (const std::filesystem::path &p_filePath)
	Loads a pipeline definition from disk.
static Constant &	insertConstant (const std::string &p_jsonBlock)
	Inserts a global constant from a JSON description block.
static Constant &	insertConstant (const std::wstring &p_jsonBlock)
	Wide-string overload for insertConstant.
static bool	containConstant (const std::wstring &p_name)
	Check if the constant defined by name exist in the global registry.
static Constant &	constant (const std::wstring &p_name)
	Retrieves a mutable constant defined by name in the global registry.
static Constant &	getOrCreateConstant (const std::string &p_jsonBlock)
	Retrieves or creates a constant from a JSON description block.
static Constant &	getOrCreateConstant (const std::wstring &p_jsonBlock)
	Wide-string overload for getOrCreateConstant.

Friends
class	Object

Detailed Description

Loads shader artifacts and orchestrates draw calls with strongly typed constants and attributes.

spk::Lumina::Pipeline pipeline = spk::Lumina::Pipeline::fromFile("shaders/lighting.json");
auto object = pipeline.createObject();
object.attribute(L"model").as<spk::OpenGL::UBO>().setData(models[0]);
object.render();

Constructor & Destructor Documentation

Pipeline() [1/2]

spk::Lumina::Pipeline::Pipeline ( const std::string & p_input )

explicit

Builds a pipeline from a JSON artifact string.

Parameters

p_input

JSON description following the Lumina pipeline schema.

Pipeline() [2/2]

spk::Lumina::Pipeline::Pipeline ( Pipeline && p_other )

defaultnoexcept

Moves pipeline ownership to a new instance.

Parameters

p_other

Pipeline to move from.

Member Function Documentation

constant()

Pipeline::Constant & spk::Lumina::Pipeline::constant ( const std::wstring & p_name )

static

Retrieves a mutable constant defined by name in the global registry.

Parameters

p_name

Constant name declared in Lumina artifacts or pre-registered.

Returns

Reference to the managed constant resource.

Exceptions

std::runtime_error

When the constant cannot be found.

Here is the caller graph for this function:

containConstant()

bool spk::Lumina::Pipeline::containConstant ( const std::wstring & p_name )

static

Check if the constant defined by name exist in the global registry.

Parameters

p_name

Constant name declared in Lumina artifacts or pre-registered.

Returns

The existance status.

Here is the caller graph for this function:

createBufferSet()

std::shared_ptr< spk::OpenGL::BufferSetObject > spk::Lumina::Pipeline::createBufferSet

(

)

const

Creates a buffer set matching the pipeline's vertex layout.

Returns

Shared pointer to a newly allocated buffer set.

createObject()

Pipeline::Object spk::Lumina::Pipeline::createObject

(

)

Instantiates a drawable object using the pipeline layout.

Returns

Object pre-populated with attribute constants and buffer set.

frameBuffer() [1/2]

spk::OpenGL::FrameBufferObject & spk::Lumina::Pipeline::frameBuffer

(

const std::wstring &

p_name

)

Accesses a framebuffer configured on the pipeline.

Parameters

p_name

Name of the framebuffer attachment set in the artifact.

Returns

Reference to the framebuffer object.

Exceptions

std::runtime_error

When the framebuffer is missing.

frameBuffer() [2/2]

const spk::OpenGL::FrameBufferObject & spk::Lumina::Pipeline::frameBuffer

(

const std::wstring &

p_name

)

const

Accesses a framebuffer configured on the pipeline.

Parameters

p_name

Name of the framebuffer attachment set in the artifact.

Returns

Constant reference to the framebuffer object.

Exceptions

std::runtime_error

When the framebuffer is missing.

fromFile()

Pipeline spk::Lumina::Pipeline::fromFile ( const std::filesystem::path & p_filePath )

static

Loads a pipeline definition from disk.

Parameters

p_filePath

Path to the JSON artifact describing the pipeline.

Returns

Fully constructed pipeline ready to spawn drawable objects.

getOrCreateConstant() [1/2]

Pipeline::Constant & spk::Lumina::Pipeline::getOrCreateConstant ( const std::string & p_jsonBlock )

static

Retrieves or creates a constant from a JSON description block.

Parameters

p_jsonBlock

JSON string describing the data block.

Returns

Reference to the created or existing constant.

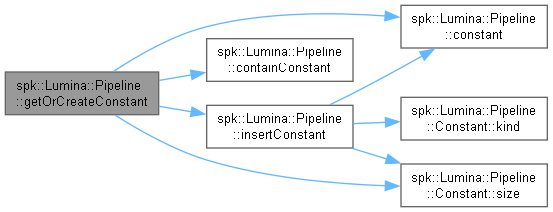

Here is the call graph for this function:

Here is the caller graph for this function:

getOrCreateConstant() [2/2]

Pipeline::Constant & spk::Lumina::Pipeline::getOrCreateConstant ( const std::wstring & p_jsonBlock )

static

Wide-string overload for getOrCreateConstant.

Parameters

p_jsonBlock

JSON string describing the data block.

Returns

Reference to the created or existing constant.

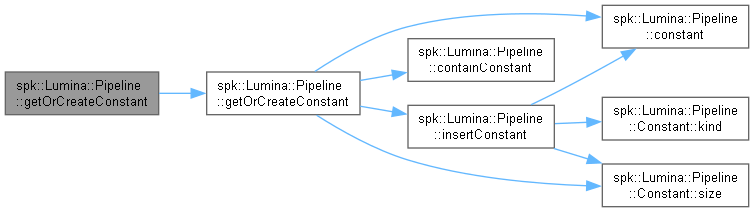

Here is the call graph for this function:

insertConstant() [1/2]

Pipeline::Constant & spk::Lumina::Pipeline::insertConstant ( const std::string & p_jsonBlock )

static

Inserts a global constant from a JSON description block.

The JSON must match a single entry of the "constants" array in a compiled Lumina artifact, e.g.:

{ "name": "ViewRegionConstant", "type": "UBO", "size": 64, "members": [ ... ], "dynamicArrayLayout": { ... } // optional }

If a constant with the same name already exists, this verifies that its kind and size are compatible and returns it; otherwise a new constant is created, with a binding point allocated from the internal counter.

Parameters

p_jsonBlock

JSON string describing the data block.

Returns

Reference to the created or existing constant.

Here is the call graph for this function:

Here is the caller graph for this function:

insertConstant() [2/2]

Pipeline::Constant & spk::Lumina::Pipeline::insertConstant ( const std::wstring & p_jsonBlock )

static

Wide-string overload for insertConstant.

The string must contain UTF-8 JSON encoded in a std::wstring; it will be converted to UTF-8 internally before parsing.

Parameters

p_jsonBlock

JSON string describing the data block.

Returns

Reference to the created or existing constant.

Here is the call graph for this function:

operator=()

Pipeline & spk::Lumina::Pipeline::operator= ( Pipeline && p_other )

defaultnoexcept

Move-assigns pipeline ownership.

Parameters

p_other

Pipeline to move from.

Returns

Reference to this pipeline.

---

The documentation for this class was generated from the following files:

• includes/structure/lumina/spk_pipeline.hpp
• srcs/structure/lumina/spk_pipeline.cpp
