Drives sprite rendering based on registered animations. More...

#include <spk_animation_controller_2d.hpp>

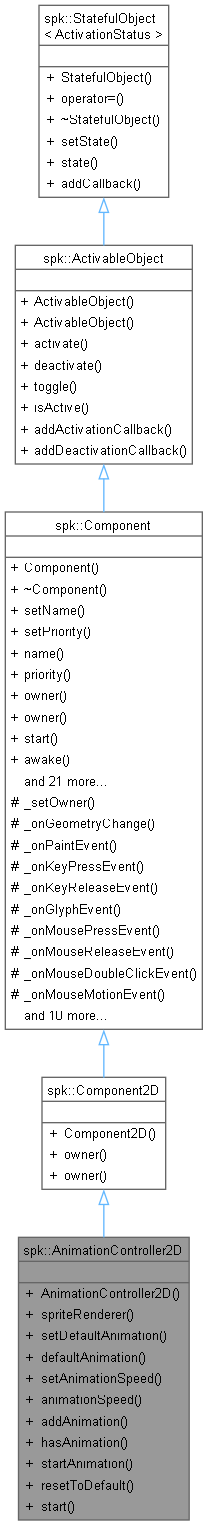

Inheritance diagram for spk::AnimationController2D:

Collaboration diagram for spk::AnimationController2D:

Public Member Functions
	AnimationController2D (const std::wstring &p_name, spk::SpriteRenderer2D &p_spriteRenderer)
	Builds a controller tied to a sprite renderer.
const spk::SpriteRenderer2D &	spriteRenderer () const
	Returns the sprite renderer targeted by this controller.
void	setDefaultAnimation (const Animation2D *p_animation)
	Sets the default animation used when no other is active.
const Animation2D *	defaultAnimation () const
	Returns the default animation.
void	setAnimationSpeed (float p_speed)
	Sets the animation playback speed multiplier.
float	animationSpeed () const
	Returns the animation playback speed multiplier.
void	addAnimation (const std::wstring &p_name, const Animation2D *p_animation, bool p_shouldLoop)
	Registers an animation with a name.
bool	hasAnimation (const std::wstring &p_name) const
	Checks whether an animation name is registered.
void	startAnimation (const std::wstring &p_name)
	Starts a named animation.
void	resetToDefault ()
	Resets playback to the default animation.
void	start () override
	Starts the controller and initializes animation state.
Public Member Functions inherited from spk::Component2D
	Component2D (const std::wstring &p_name)
	Builds a 2D component with a name.
Entity2D *	owner ()
	Returns the 2D owner entity.
const Entity2D *	owner () const
	Returns the 2D owner entity.
Public Member Functions inherited from spk::Component
	Component (const std::wstring &p_name)
	Builds a component with a name.
	~Component () override
	Virtual destructor.
void	setName (const std::wstring &p_name)
	Sets the component name.
void	setPriority (const int &p_priority)
	Sets the component priority.
const std::wstring &	name () const
	Returns the component name.
int	priority () const
	Returns the component priority.
Entity *	owner ()
	Returns the owning entity.
const Entity *	owner () const
	Returns the owning entity.
virtual void	awake ()
	Called when the component becomes active.
virtual void	sleep ()
	Called when the component is put to sleep.
virtual void	stop ()
	Called when the component stops.
virtual void	handleGeometryChange (const spk::Extend2D &p_geometry)
	Handles geometry change events.
virtual void	handlePaintEvent (spk::PaintEvent &p_event)
	Handles paint events.
virtual void	handleKeyPressEvent (spk::KeyPressEvent &p_event)
	Handles key press events.
virtual void	handleKeyReleaseEvent (spk::KeyReleaseEvent &p_event)
	Handles key release events.
virtual void	handleGlyphEvent (spk::GlyphEvent &p_event)
	Handles glyph input events.
virtual void	handleMousePressEvent (spk::MousePressEvent &p_event)
	Handles mouse press events.
virtual void	handleMouseReleaseEvent (spk::MouseReleaseEvent &p_event)
	Handles mouse release events.
virtual void	handleMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event)
	Handles mouse double-click events.
virtual void	handleMouseMotionEvent (spk::MouseMotionEvent &p_event)
	Handles mouse motion events.
virtual void	handleMouseWheelEvent (spk::MouseWheelEvent &p_event)
	Handles mouse wheel events.
virtual void	handleEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event)
	Handles enter resize mode events.
virtual void	handleResizeEvent (spk::ResizeEvent &p_event)
	Handles resize events.
virtual void	handleExitResizeModeEvent (spk::ExitResizeModeEvent &p_event)
	Handles exit resize mode events.
virtual void	handleQuitEvent (spk::QuitEvent &p_event)
	Handles quit events.
virtual void	handleMoveEvent (spk::MoveEvent &p_event)
	Handles move events.
virtual void	handleFullScreenModeEvent (spk::FullScreenModeEvent &p_event)
	Handles fullscreen mode events.
virtual void	handleMaximizedModeEvent (spk::MaximizedModeEvent &p_event)
	Handles maximized mode events.
virtual void	handleFocusEvent (spk::FocusEvent &p_event)
	Handles focus events.
virtual void	handleUpdateEvent (spk::UpdateEvent &p_event)
	Handles update events.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.

Additional Inherited Members
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.
Protected Member Functions inherited from spk::Component
virtual void	_onGeometryChange (const spk::Extend2D &p_geometry)
	Handles geometry changes before public callbacks.
virtual void	_onPaintEvent (spk::PaintEvent &p_event)
	Handles paint events before public callbacks.
virtual void	_onKeyPressEvent (spk::KeyPressEvent &p_event)
	Handles key press events before public callbacks.
virtual void	_onKeyReleaseEvent (spk::KeyReleaseEvent &p_event)
	Handles key release events before public callbacks.
virtual void	_onGlyphEvent (spk::GlyphEvent &p_event)
	Handles glyph input events before public callbacks.
virtual void	_onMousePressEvent (spk::MousePressEvent &p_event)
	Handles mouse press events before public callbacks.
virtual void	_onMouseReleaseEvent (spk::MouseReleaseEvent &p_event)
	Handles mouse release events before public callbacks.
virtual void	_onMouseDoubleClickEvent (spk::MouseDoubleClickEvent &p_event)
	Handles mouse double-click events before public callbacks.
virtual void	_onMouseMotionEvent (spk::MouseMotionEvent &p_event)
	Handles mouse motion events before public callbacks.
virtual void	_onMouseWheelEvent (spk::MouseWheelEvent &p_event)
	Handles mouse wheel events before public callbacks.
virtual void	_onEnterResizeModeEvent (spk::EnterResizeModeEvent &p_event)
	Handles enter resize mode events before public callbacks.
virtual void	_onResizeEvent (spk::ResizeEvent &p_event)
	Handles resize events before public callbacks.
virtual void	_onExitResizeModeEvent (spk::ExitResizeModeEvent &p_event)
	Handles exit resize mode events before public callbacks.
virtual void	_onQuitEvent (spk::QuitEvent &p_event)
	Handles quit events before public callbacks.
virtual void	_onMoveEvent (spk::MoveEvent &p_event)
	Handles move events before public callbacks.
virtual void	_onFullScreenModeEvent (spk::FullScreenModeEvent &p_event)
	Handles fullscreen mode events before public callbacks.
virtual void	_onMaximizedModeEvent (spk::MaximizedModeEvent &p_event)
	Handles maximized mode events before public callbacks.
virtual void	_onFocusEvent (spk::FocusEvent &p_event)
	Handles focus events before public callbacks.

Detailed Description

Drives sprite rendering based on registered animations.

Constructor & Destructor Documentation

◆ AnimationController2D()

spk::AnimationController2D::AnimationController2D	(	const std::wstring &	p_name,
		spk::SpriteRenderer2D &	p_spriteRenderer )

Builds a controller tied to a sprite renderer.

Parameters

p_name	Component name.
p_spriteRenderer	Renderer to update with animation frames.

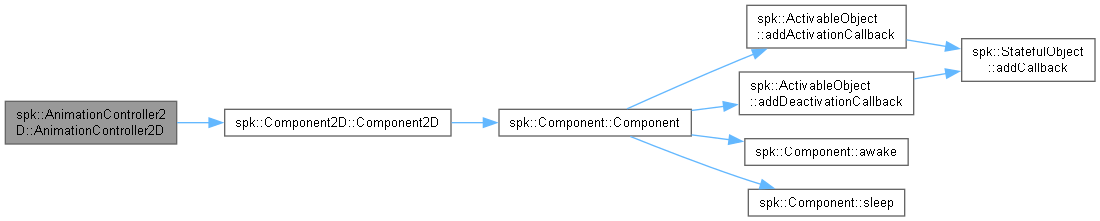

Here is the call graph for this function:

Member Function Documentation

◆ addAnimation()

void spk::AnimationController2D::addAnimation	(	const std::wstring &	p_name,
		const Animation2D *	p_animation,
		bool	p_shouldLoop )

Registers an animation with a name.

Parameters

p_name	Name used to start the animation.
p_animation	Animation to register.
p_shouldLoop	Whether the animation should loop.

◆ animationSpeed()

float spk::AnimationController2D::animationSpeed ( ) const

Returns the animation playback speed multiplier.

Returns: Speed multiplier.

◆ defaultAnimation()

const Animation2D * spk::AnimationController2D::defaultAnimation ( ) const

Returns the default animation.

Returns: Pointer to the default animation.

◆ hasAnimation()

bool spk::AnimationController2D::hasAnimation ( const std::wstring & p_name ) const

Checks whether an animation name is registered.

Parameters

p_name Animation name.

Returns: true when the animation exists.

◆ setAnimationSpeed()

void spk::AnimationController2D::setAnimationSpeed ( float p_speed )

Sets the animation playback speed multiplier.

Parameters

p_speed Speed multiplier.

◆ setDefaultAnimation()

void spk::AnimationController2D::setDefaultAnimation ( const Animation2D * p_animation )

Sets the default animation used when no other is active.

Parameters

p_animation Animation to use as default.

◆ spriteRenderer()

const spk::SpriteRenderer2D & spk::AnimationController2D::spriteRenderer ( ) const

Returns the sprite renderer targeted by this controller.

Returns: Reference to the renderer.

◆ start()

void spk::AnimationController2D::start ( )

overridevirtual

Starts the controller and initializes animation state.

Reimplemented from spk::Component.

◆ startAnimation()

void spk::AnimationController2D::startAnimation ( const std::wstring & p_name )

Starts a named animation.

Parameters

p_name Registered animation name.

The documentation for this class was generated from the following files:

includes/structure/engine/2d/spk_animation_controller_2d.hpp
srcs/structure/engine/2d/spk_animation_controller_2d.cpp
