spk::Layout Class Reference

Base layout container that arranges resizable elements. More...

#include <spk_layout.hpp>

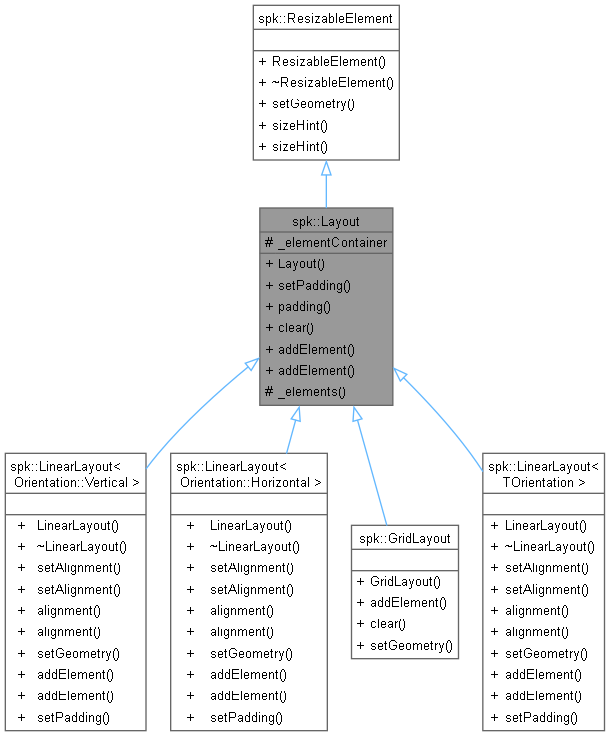

Inheritance diagram for spk::Layout:

Collaboration diagram for spk::Layout:

Classes
struct	Element
	Layout element entry with sizing policy and extra data. More...
struct	SizePolicy
	Defines sizing policies for layout elements. More...

Public Member Functions
void	setPadding (const spk::Vector2UInt &p_padding)
	Sets layout padding between elements.
const spk::Vector2UInt &	padding () const
	Returns layout padding.
void	clear ()
	Removes all elements from the layout.
template<typename TExtra>
void	addElement (ResizableElement *p_element, const SizePolicy &p_sizePolicy, TExtra &&p_extra)
	Adds an element with extra layout data.
void	addElement (ResizableElement *p_element, const SizePolicy &p_sizePolicy)
	Adds an element with a size policy.
Public Member Functions inherited from spk::ResizableElement
virtual void	setGeometry (const Extend2D &p_extend)=0
	Sets the element geometry.
SizeHint &	sizeHint ()
	Returns mutable size hint data.
const SizeHint &	sizeHint () const
	Returns const size hint data.

Protected Types
using	ElementContainer = std::vector<Element>
	Container type used to store elements.

Protected Member Functions
const ElementContainer &	_elements () const
	Returns the stored elements.

Protected Attributes
ElementContainer	_elementContainer
	Stored layout elements.

Detailed Description

Base layout container that arranges resizable elements.

spk::Layout layout;
layout.setPadding({4, 4});

Member Function Documentation

_elements()

const Layout::ElementContainer & spk::Layout::_elements ( ) const

protected

Returns the stored elements.

Returns

Const container reference.

Here is the caller graph for this function:

addElement() [1/2]

void spk::Layout::addElement	(	ResizableElement *	p_element,
		const SizePolicy &	p_sizePolicy )

Adds an element with a size policy.

Parameters

p_element	Element pointer.
p_sizePolicy	Size policy to apply.

Here is the call graph for this function:

addElement() [2/2]

template<typename TExtra>

void spk::Layout::addElement ( ResizableElement * p_element, const SizePolicy & p_sizePolicy, TExtra && p_extra )

inline

Adds an element with extra layout data.

Template Parameters

TExtra

Extra data type.

Parameters

p_element	Element pointer.
p_sizePolicy	Size policy to apply.
p_extra	Extra data to store.

Here is the call graph for this function:

Here is the caller graph for this function:

padding()

const spk::Vector2UInt & spk::Layout::padding

(

)

const

Returns layout padding.

Returns

Padding vector.

Here is the caller graph for this function:

setPadding()

void spk::Layout::setPadding

(

const spk::Vector2UInt &

p_padding

)

Sets layout padding between elements.

Parameters

p_padding

Padding vector.

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• includes/structure/widget/spk_layout.hpp
• srcs/structure/widget/spk_layout.cpp
