GPU texture resource that can be loaded from files or raw pixel data. More...

#include <spk_image.hpp>

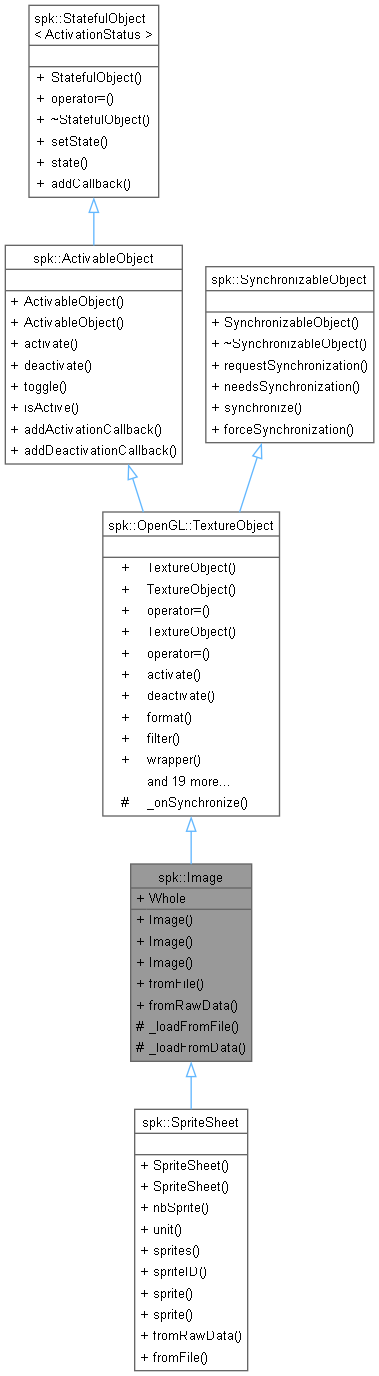

Inheritance diagram for spk::Image:

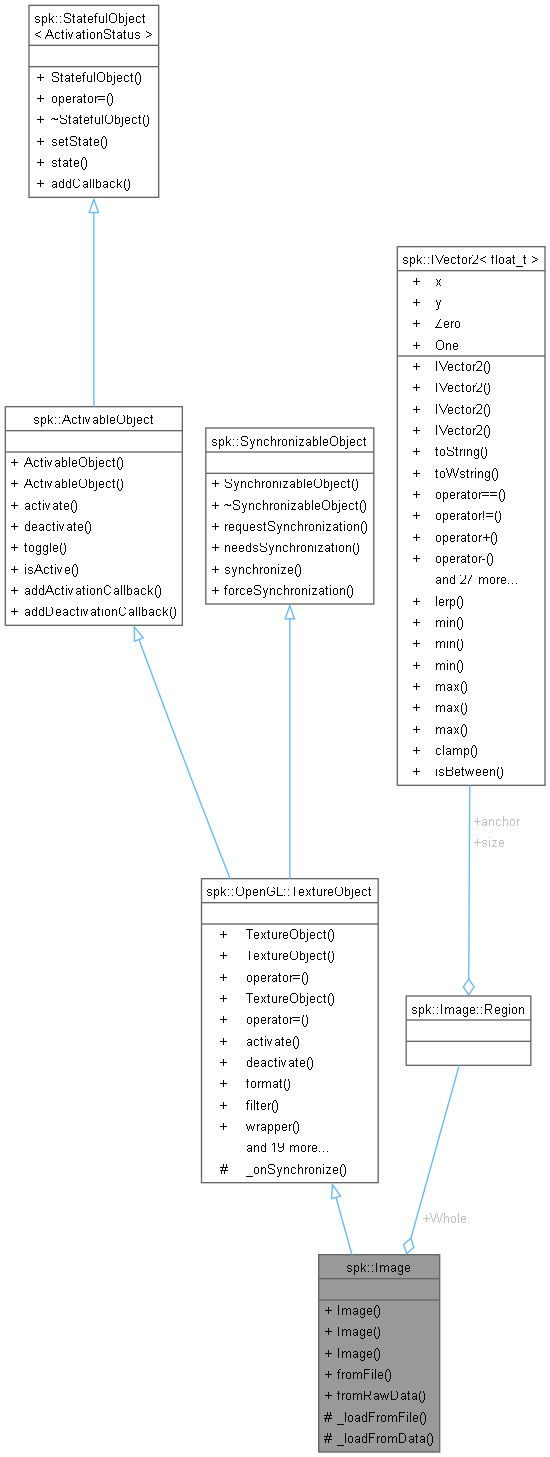

Collaboration diagram for spk::Image:

Classes
struct	Region
	Normalized sub-area within the texture. More...

Public Types
using	Format = OpenGL::TextureObject::Format
	Pixel format accepted by the underlying texture.
using	Filtering = OpenGL::TextureObject::Filtering
	Filtering modes for minification and magnification.
using	Filter = OpenGL::TextureObject::Filter
	Pairing of min and mag filtering options.
using	Wrap = OpenGL::TextureObject::Wrap
	Texture coordinate wrapping modes.
using	Wrapper = OpenGL::TextureObject::Wrapper
	Pairing of wrap modes for the U and V axes.
using	Mipmap = OpenGL::TextureObject::Mipmap
	Mipmap generation policy.
Public Types inherited from spk::OpenGL::TextureObject
enum class	Format : GLenum { RGB = GL_RGB , RGBA = GL_RGBA , BGR = GL_BGR , BGRA = GL_BGRA , GreyLevel = GL_RED , DualChannel = GL_RG , DepthComponent = GL_DEPTH_COMPONENT , DepthStencil = GL_DEPTH_STENCIL , Error = GL_NONE }
	Supported GPU pixel formats.
enum class	Filtering : GLenum { Nearest = GL_NEAREST , Linear = GL_LINEAR }
	Texture sampling algorithms for minification/magnification.
enum class	Wrap : GLenum { Repeat = GL_REPEAT , ClampToEdge = GL_CLAMP_TO_EDGE , ClampToBorder = GL_CLAMP_TO_BORDER }
	Texture coordinate wrapping strategies.
using	Mipmap = spk::ActivationStatus
	Indicates whether mipmaps are active.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Public Member Functions
	Image (const std::vector< uint8_t > &p_pixelsAndEncodingData, Filter p_filter=Filter{Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper=Wrapper{Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)
	Builds an image from encoded pixel data already in memory.
	Image (const std::filesystem::path &p_path, Filter p_filter=Filter{Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper=Wrapper{Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)
	Loads an image from disk.
Public Member Functions inherited from spk::OpenGL::TextureObject
	TextureObject (Format p_format=Format::RGBA, Filter p_filter={Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper={Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)
	Constructs a texture with format, filtering, and wrapping options.
	TextureObject (const TextureObject &p_other)
	Copy-constructs a texture object including CPU-side data.
TextureObject &	operator= (const TextureObject &p_other)
	Copy-assigns a texture object including CPU-side data.
	TextureObject (TextureObject &&p_other) noexcept
	Move-constructs a texture object transferring ownership.
TextureObject &	operator= (TextureObject &&p_other) noexcept
	Move-assigns a texture object transferring ownership.
void	activate () const
	Activates this texture for rendering.
void	deactivate () const
	Deactivates this texture after rendering.
Format	format () const
	Gets the current texture format.
Filter	filter () const
	Gets filtering parameters.
Wrapper	wrapper () const
	Gets wrapping parameters.
Mipmap	mipmap () const
	Gets mipmap activation state.
void	setFormat (Format p_format)
	Sets the texture format (affects upload interpretation).
void	setFiltering (Filter p_filter)
	Sets min/mag filtering together.
void	setFiltering (Filtering p_minFilter, Filtering p_magFilter)
	Sets minification and magnification filters independently.
void	setWrap (Wrapper p_wrapper)
	Sets wrapping for both axes.
void	setWrap (Wrap p_wrapS, Wrap p_wrapT)
	Sets wrapping for each axis independently.
void	setMipmap (Mipmap p_mipmap)
	Sets mipmap activation state.
spk::Vector2UInt	size () const
	Returns texture dimensions.
size_t	sizeAsBytes () const
	Returns CPU data size in bytes.
GLuint	id () const
	Returns GL texture id, creating if needed.
void	setData (const uint8_t *p_data, const spk::Vector2UInt &p_size, Format p_format=Format::RGBA)
	Uploads pixel data from raw pointer.
void	setData (std::vector< uint8_t > p_data, const spk::Vector2UInt &p_size, Format p_format=Format::RGBA)
	Uploads pixel data by move.
void	clearData ()
	Clears CPU data and marks for sync.
void	resize (const spk::Vector2UInt &p_size)
	Resizes CPU data and marks for sync.
std::vector< uint8_t > &	data ()
	Gets CPU-side pixel data.
const std::vector< uint8_t > &	data () const
	Gets CPU-side pixel data.
void	flip (const spk::Orientation &p_orientation)
	Flips stored pixel data along the given orientation.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::SynchronizableObject
void	requestSynchronization () noexcept
	Marks the object as needing synchronization.
bool	needsSynchronization () const noexcept
	Checks if synchronization is pending.
void	synchronize ()
	Performs synchronization if requested.
void	forceSynchronization ()
	Forces synchronization regardless of current flag.

Static Public Member Functions
static Image	fromFile (const std::filesystem::path &p_path, Filter p_filter=Filter{Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper=Wrapper{Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)
	Convenience factory that loads from a file path.
static Image	fromRawData (const std::vector< uint8_t > &p_pixelsAndEncodingData, Filter p_filter=Filter{Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper=Wrapper{Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)
	Convenience factory that builds from encoded pixel data.

Static Public Attributes
static Region	Whole = Region{.anchor = {0, 0}, .size = {1, 1}}
	Represents the entire texture area.

Protected Member Functions
void	_loadFromFile (const std::filesystem::path &p_path)
	Populates the texture from an image stored on disk.
void	_loadFromData (const std::vector< uint8_t > &p_pixelsAndEncodingData)
	Populates the texture from encoded bytes already in memory.
Protected Member Functions inherited from spk::OpenGL::TextureObject
void	_onSynchronize () override
	Synchronizes CPU-side data with the GPU texture.

Detailed Description

GPU texture resource that can be loaded from files or raw pixel data.

See also: spk::OpenGL::TextureObject

auto image = spk::Image::fromFile("spritesheet.png");

image.activate();

spk::Image::fromFile

static Image fromFile(const std::filesystem::path &p_path, Filter p_filter=Filter{Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper=Wrapper{Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)

Convenience factory that loads from a file path.

Definition spk_image.cpp:30

Constructor & Destructor Documentation

◆ Image() [1/2]

spk::Image::Image	(	const std::vector< uint8_t > &	p_pixelsAndEncodingData,
		Filter	p_filter = Filter{Filtering::Linear, Filtering::Linear},
		Wrapper	p_wrapper = Wrapper{Wrap::Repeat, Wrap::Repeat},
		Mipmap	p_mipmap = Mipmap::Activated )

Builds an image from encoded pixel data already in memory.

Parameters

p_pixelsAndEncodingData	Byte buffer containing encoded image.
p_filter	Minification and magnification filtering.
p_wrapper	Texture wrapping policy on each axis.
p_mipmap	Mipmap generation strategy.

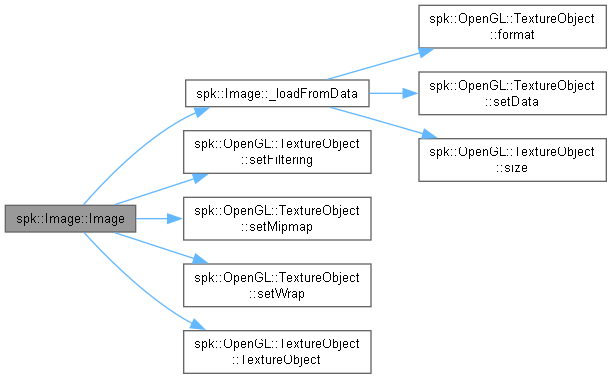

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Image() [2/2]

spk::Image::Image	(	const std::filesystem::path &	p_path,
		Filter	p_filter = Filter{Filtering::Linear, Filtering::Linear},
		Wrapper	p_wrapper = Wrapper{Wrap::Repeat, Wrap::Repeat},
		Mipmap	p_mipmap = Mipmap::Activated )

Loads an image from disk.

Parameters

p_path	Path to the encoded image file.
p_filter	Minification and magnification filtering.
p_wrapper	Texture wrapping policy on each axis.
p_mipmap	Mipmap generation strategy.

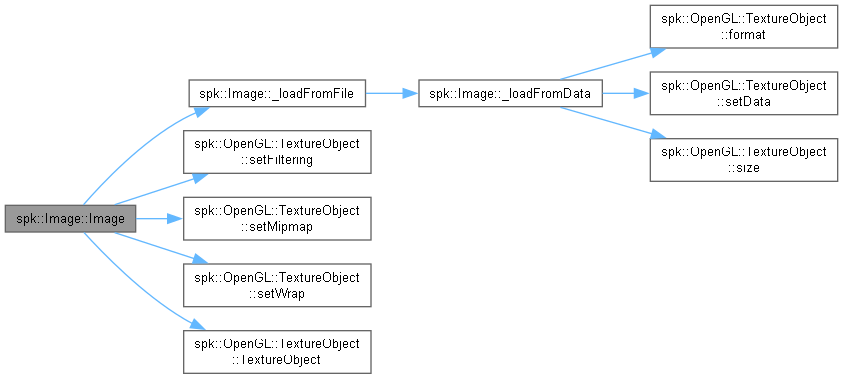

Here is the call graph for this function:

Member Function Documentation

◆ _loadFromData()

void spk::Image::_loadFromData ( const std::vector< uint8_t > & p_pixelsAndEncodingData )

protected

Populates the texture from encoded bytes already in memory.

Parameters

p_pixelsAndEncodingData Buffer containing encoded pixel data.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _loadFromFile()

void spk::Image::_loadFromFile ( const std::filesystem::path & p_path )

protected

Populates the texture from an image stored on disk.

Parameters

p_path Path to the encoded image file.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fromFile()

Image spk::Image::fromFile	(	const std::filesystem::path &	p_path,
		Filter	p_filter = Filter{Filtering::Linear, Filtering::Linear},
		Wrapper	p_wrapper = Wrapper{Wrap::Repeat, Wrap::Repeat},
		Mipmap	p_mipmap = Mipmap::Activated )

static

Convenience factory that loads from a file path.

Parameters

p_path	Path to the encoded image file.
p_filter	Minification and magnification filtering.
p_wrapper	Texture wrapping policy on each axis.
p_mipmap	Mipmap generation strategy.

Returns: Fully constructed image bound to an OpenGL texture.

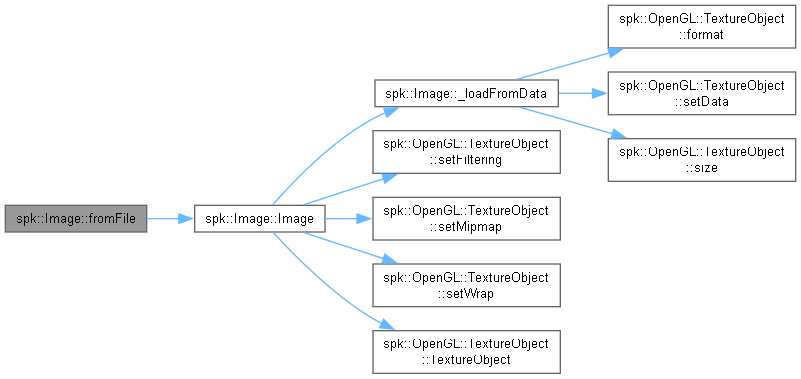

Here is the call graph for this function:

◆ fromRawData()

Image spk::Image::fromRawData	(	const std::vector< uint8_t > &	p_pixelsAndEncodingData,
		Filter	p_filter = Filter{Filtering::Linear, Filtering::Linear},
		Wrapper	p_wrapper = Wrapper{Wrap::Repeat, Wrap::Repeat},
		Mipmap	p_mipmap = Mipmap::Activated )

static

Convenience factory that builds from encoded pixel data.

Parameters

p_pixelsAndEncodingData	Byte buffer containing encoded image.
p_filter	Minification and magnification filtering.
p_wrapper	Texture wrapping policy on each axis.
p_mipmap	Mipmap generation strategy.

Returns: Fully constructed image bound to an OpenGL texture.

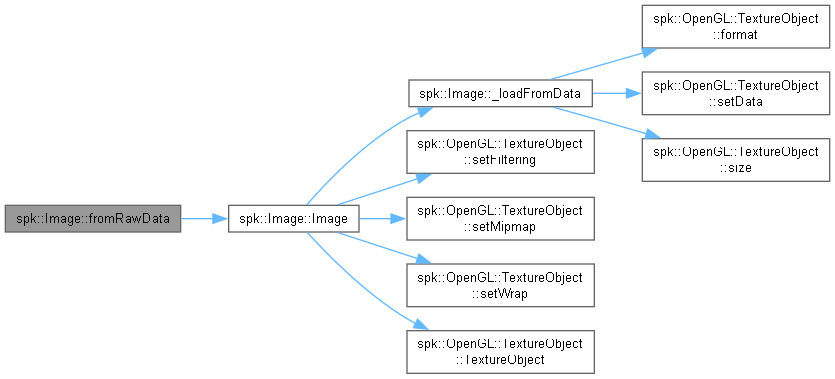

Here is the call graph for this function:

The documentation for this class was generated from the following files:

includes/structure/graphics/spk_image.hpp
srcs/structure/graphics/spk_image.cpp
