Font atlas texture and glyph metadata for a specific size. More...

#include <spk_font.hpp>

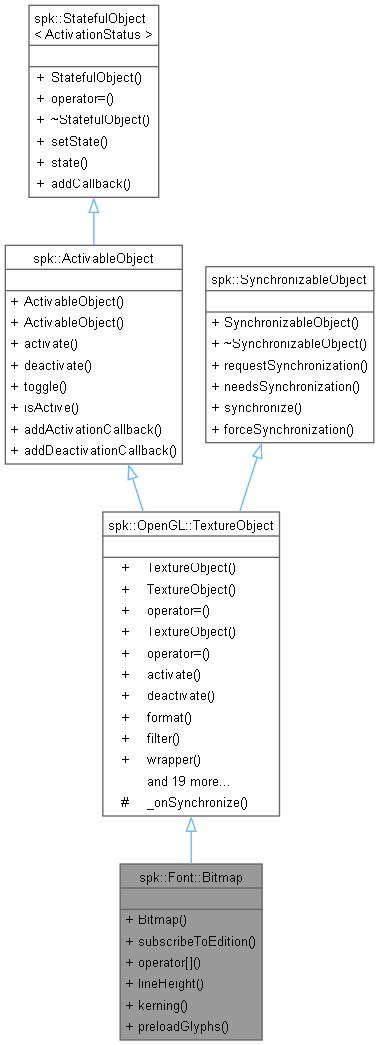

Inheritance diagram for spk::Font::Bitmap:

Collaboration diagram for spk::Font::Bitmap:

Classes
struct	Glyph
	Glyph quad data and layout metrics. More...

Public Types
using	Format = spk::OpenGL::TextureObject::Format
	Texture format type for the bitmap.
using	Filtering = spk::OpenGL::TextureObject::Filtering
	Texture filtering type for the bitmap.
using	Filter = spk::OpenGL::TextureObject::Filter
	Texture filter type for the bitmap.
using	Wrap = spk::OpenGL::TextureObject::Wrap
	Texture wrap type for the bitmap.
using	Wrapper = spk::OpenGL::TextureObject::Wrapper
	Texture wrapper type for the bitmap.
using	Mipmap = spk::OpenGL::TextureObject::Mipmap
	Texture mipmap type for the bitmap.
using	EditionContract = spk::ContractProvider::Contract
	Contract type returned by edition subscriptions.
using	EditionJob = spk::ContractProvider::Job
	Job type invoked on bitmap edits.
Public Types inherited from spk::OpenGL::TextureObject
enum class	Format : GLenum { RGB = GL_RGB , RGBA = GL_RGBA , BGR = GL_BGR , BGRA = GL_BGRA , GreyLevel = GL_RED , DualChannel = GL_RG , DepthComponent = GL_DEPTH_COMPONENT , DepthStencil = GL_DEPTH_STENCIL , Error = GL_NONE }
	Supported GPU pixel formats.
enum class	Filtering : GLenum { Nearest = GL_NEAREST , Linear = GL_LINEAR }
	Texture sampling algorithms for minification/magnification.
enum class	Wrap : GLenum { Repeat = GL_REPEAT , ClampToEdge = GL_CLAMP_TO_EDGE , ClampToBorder = GL_CLAMP_TO_BORDER }
	Texture coordinate wrapping strategies.
using	Mipmap = spk::ActivationStatus
	Indicates whether mipmaps are active.
Public Types inherited from spk::ActivableObject
using	Contract = StatefulObject<ActivationStatus>::Contract
	Subscription handle controlling callback lifetime.
using	Job = StatefulObject<ActivationStatus>::Job
	Callback signature executed on activation state changes.
Public Types inherited from spk::StatefulObject< ActivationStatus >
using	Contract
	Handle allowing subscribers to manage callback lifetimes.
using	Job
	Callable invoked when the object transitions to a state.

Public Member Functions
	Bitmap (const stbtt_fontinfo *p_fontInfo, const Size &p_fontSize)
	Builds a bitmap atlas for a font size.
EditionContract	subscribeToEdition (const EditionJob &p_job)
	Subscribes to bitmap edition notifications.
const Glyph &	operator[] (const wchar_t &p_glyphChar)
	Returns glyph data for the requested codepoint.
int	lineHeight () const
	Returns the line height for this font size.
int	kerning (const wchar_t p_previous, const wchar_t p_current) const
	Returns kerning adjustment between two glyphs.
void	preloadGlyphs (const std::wstring &p_glyphs)
	Preloads glyphs into the bitmap atlas.
Public Member Functions inherited from spk::OpenGL::TextureObject
	TextureObject (Format p_format=Format::RGBA, Filter p_filter={Filtering::Linear, Filtering::Linear}, Wrapper p_wrapper={Wrap::Repeat, Wrap::Repeat}, Mipmap p_mipmap=Mipmap::Activated)
	Constructs a texture with format, filtering, and wrapping options.
	TextureObject (const TextureObject &p_other)
	Copy-constructs a texture object including CPU-side data.
TextureObject &	operator= (const TextureObject &p_other)
	Copy-assigns a texture object including CPU-side data.
	TextureObject (TextureObject &&p_other) noexcept
	Move-constructs a texture object transferring ownership.
TextureObject &	operator= (TextureObject &&p_other) noexcept
	Move-assigns a texture object transferring ownership.
void	activate () const
	Activates this texture for rendering.
void	deactivate () const
	Deactivates this texture after rendering.
Format	format () const
	Gets the current texture format.
Filter	filter () const
	Gets filtering parameters.
Wrapper	wrapper () const
	Gets wrapping parameters.
Mipmap	mipmap () const
	Gets mipmap activation state.
void	setFormat (Format p_format)
	Sets the texture format (affects upload interpretation).
void	setFiltering (Filter p_filter)
	Sets min/mag filtering together.
void	setFiltering (Filtering p_minFilter, Filtering p_magFilter)
	Sets minification and magnification filters independently.
void	setWrap (Wrapper p_wrapper)
	Sets wrapping for both axes.
void	setWrap (Wrap p_wrapS, Wrap p_wrapT)
	Sets wrapping for each axis independently.
void	setMipmap (Mipmap p_mipmap)
	Sets mipmap activation state.
spk::Vector2UInt	size () const
	Returns texture dimensions.
size_t	sizeAsBytes () const
	Returns CPU data size in bytes.
GLuint	id () const
	Returns GL texture id, creating if needed.
void	setData (const uint8_t *p_data, const spk::Vector2UInt &p_size, Format p_format=Format::RGBA)
	Uploads pixel data from raw pointer.
void	setData (std::vector< uint8_t > p_data, const spk::Vector2UInt &p_size, Format p_format=Format::RGBA)
	Uploads pixel data by move.
void	clearData ()
	Clears CPU data and marks for sync.
void	resize (const spk::Vector2UInt &p_size)
	Resizes CPU data and marks for sync.
std::vector< uint8_t > &	data ()
	Gets CPU-side pixel data.
const std::vector< uint8_t > &	data () const
	Gets CPU-side pixel data.
void	flip (const spk::Orientation &p_orientation)
	Flips stored pixel data along the given orientation.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
Public Member Functions inherited from spk::ActivableObject
	ActivableObject ()
	Builds a deactivated object.
	ActivableObject (ActivationStatus p_initial)
	Builds with a custom initial activation state.
void	activate ()
	Sets the state to Activated.
void	deactivate ()
	Sets the state to Deactivated.
void	toggle ()
	Toggles between activated and deactivated states.
bool	isActive () const
	Checks whether the object is currently activated.
Contract	addActivationCallback (const Job &p_callback)
	Registers a callback executed when the object activates.
Contract	addDeactivationCallback (const Job &p_callback)
	Registers a callback executed when the object deactivates.
Public Member Functions inherited from spk::StatefulObject< ActivationStatus >
	StatefulObject (const ActivationStatus &p_initialState)
	Builds with an initial state.
StatefulObject &	operator= (const StatefulObject &p_other)=delete
void	setState (const ActivationStatus &p_newState)
	Sets a new state and triggers callbacks registered for it.
ActivationStatus	state () const
	Returns the current state.
Contract	addCallback (const ActivationStatus &p_state, const Job &p_callback)
	Subscribes a callback for a specific state.
Public Member Functions inherited from spk::SynchronizableObject
void	requestSynchronization () noexcept
	Marks the object as needing synchronization.
bool	needsSynchronization () const noexcept
	Checks if synchronization is pending.
void	synchronize ()
	Performs synchronization if requested.
void	forceSynchronization ()
	Forces synchronization regardless of current flag.

Additional Inherited Members
Protected Member Functions inherited from spk::OpenGL::TextureObject
void	_onSynchronize () override
	Synchronizes CPU-side data with the GPU texture.

Detailed Description

Font atlas texture and glyph metadata for a specific size.

Constructor & Destructor Documentation

◆ Bitmap()

spk::Font::Bitmap::Bitmap	(	const stbtt_fontinfo *	p_fontInfo,
		const Size &	p_fontSize )

Builds a bitmap atlas for a font size.

Parameters

p_fontInfo	Font info pointer.
p_fontSize	Size of glyphs and outline.

Here is the call graph for this function:

Member Function Documentation

◆ kerning()

int spk::Font::Bitmap::kerning	(	const wchar_t	p_previous,
		const wchar_t	p_current ) const

Returns kerning adjustment between two glyphs.

Parameters

p_previous	Previous glyph codepoint.
p_current	Current glyph codepoint.

Returns: Kerning adjustment in pixels.

◆ lineHeight()

int spk::Font::Bitmap::lineHeight ( ) const

Returns the line height for this font size.

Returns: Line height in pixels.

◆ operator[]()

const Font::Bitmap::Glyph & spk::Font::Bitmap::operator[] ( const wchar_t & p_glyphChar )

Returns glyph data for the requested codepoint.

Parameters

p_glyphChar Character to fetch.

Returns: Glyph data.

Here is the caller graph for this function:

◆ preloadGlyphs()

void spk::Font::Bitmap::preloadGlyphs ( const std::wstring & p_glyphs )

Preloads glyphs into the bitmap atlas.

Parameters

p_glyphs Glyph characters to load.

◆ subscribeToEdition()

Font::Bitmap::EditionContract spk::Font::Bitmap::subscribeToEdition ( const EditionJob & p_job )

Subscribes to bitmap edition notifications.

Parameters

p_job Callback executed on edits.

Returns: Contract handle for the subscription.

The documentation for this class was generated from the following files:

includes/structure/graphics/spk_font.hpp
srcs/structure/graphics/spk_font.cpp
