Convex collision mesh built from 2D points. More...

#include <spk_collision_mesh_2d.hpp>

Inheritance diagram for spk::CollisionMesh2D:

Collaboration diagram for spk::CollisionMesh2D:

Public Types
using	Polygon = spk::IMesh<spk::Vector2>::Polygon
	Polygon type used for collision triangles.
using	EditionContract = spk::IMesh<spk::Vector2>::EditionContract
	Contract type for mesh edition notifications.
Public Types inherited from spk::IMesh< spk::Vector2 >
using	Polygon
	Polygon type stored by the mesh.
using	EditionContract
	Contract type returned by edition subscriptions.
using	EditionJob
	Job type invoked on mesh edits.

Public Member Functions
	CollisionMesh2D ()
	Creates an empty collision mesh.
	CollisionMesh2D (const CollisionMesh2D &p_other)
	Copies another collision mesh.
CollisionMesh2D &	operator= (const CollisionMesh2D &p_other)
	Copy-assigns another collision mesh.
	CollisionMesh2D (CollisionMesh2D &&p_other) noexcept
	Move-constructs a collision mesh.
CollisionMesh2D &	operator= (CollisionMesh2D &&p_other) noexcept
	Move-assigns a collision mesh.
template<typename TMesh>
	CollisionMesh2D (const TMesh &p_mesh, const std::function< spk::Vector2(const typename TMesh::Vertex &)> &p_positionExtractor)
	Builds a convex collision mesh from another mesh type.
bool	collideWith (const CollisionMesh2D &p_other, const Transform2D &p_selfTransform, const Transform2D &p_otherTransform) const
	Tests collision against another mesh using transform components.
bool	collideWith (const spk::Vector2 &p_worldPoint, const Transform2D &p_selfTransform) const
	Tests collision with a world-space point using a transform component.
bool	collideWith (const CollisionMesh2D &p_other, const spk::Matrix4x4 &p_selfTransform, const spk::Matrix4x4 &p_otherTransform) const
	Tests collision against another mesh using explicit matrices.
bool	collideWith (const spk::Vector2 &p_worldPoint, const spk::Matrix4x4 &p_selfTransform) const
	Tests collision with a world-space point using a matrix.
const spk::BoundingBox2D &	boundingBox () const
	Returns the axis-aligned bounding box in local space.
Public Member Functions inherited from spk::IMesh< spk::Vector2 >
	IMesh ()
	Builds an empty mesh with a dynamic buffer set.
IMesh &	operator= (const IMesh &p_other)
	Assigns polygon data from another mesh.
void	clear ()
	Clears all polygons and notifies subscribers.
void	append (const Polygon &p_shape)
	Appends a polygon and notifies subscribers.
EditionContract	subscribeToEdition (const EditionJob &p_job) const
	Subscribes to mesh edition notifications.
const std::vector< spk::Vector2 > &	vertices () const
	Returns the cached vertex list for all polygons.
const std::vector< Polygon > &	polygons () const
	Returns the stored polygons.
const std::vector< uint32_t > &	indexes () const
	Returns the cached triangle indices for the mesh.
IMesh &	operator+= (const IMesh &p_other)
	Appends polygons from another mesh and notifies subscribers.
const std::shared_ptr< spk::OpenGL::BufferSetObject > &	bufferSet () const
	Returns the underlying buffer set.
void	synchronize () const
	Updates GPU buffers when mesh data has changed.
IMesh	fuze (const IMesh &p_other) const
	Returns a new mesh by concatenating another mesh.

Protected Member Functions
void	_configureBufferSet () const override
	Configures the vertex buffer layout for this mesh.

Detailed Description

Convex collision mesh built from 2D points.

Constructor & Destructor Documentation

◆ CollisionMesh2D() [1/3]

spk::CollisionMesh2D::CollisionMesh2D ( const CollisionMesh2D & p_other )

Copies another collision mesh.

Parameters

p_other Mesh to copy from.

Here is the call graph for this function:

◆ CollisionMesh2D() [2/3]

spk::CollisionMesh2D::CollisionMesh2D ( CollisionMesh2D && p_other )

noexcept

Move-constructs a collision mesh.

Parameters

p_other Mesh to move from.

Here is the call graph for this function:

◆ CollisionMesh2D() [3/3]

template<typename TMesh>

spk::CollisionMesh2D::CollisionMesh2D	(	const TMesh &	p_mesh,
		const std::function< spk::Vector2(const typename TMesh::Vertex &)> &	p_positionExtractor )

inlineexplicit

Builds a convex collision mesh from another mesh type.

Template Parameters

TMesh Mesh type providing polygons() and Vertex.

Parameters

p_mesh	Source mesh to sample.
p_positionExtractor	Function returning the world position of a vertex.

Here is the call graph for this function:

Member Function Documentation

◆ _configureBufferSet()

void spk::CollisionMesh2D::_configureBufferSet ( ) const

inlineoverrideprotectedvirtual

Configures the vertex buffer layout for this mesh.

Implements spk::IMesh< spk::Vector2 >.

Here is the call graph for this function:

◆ boundingBox()

const spk::BoundingBox2D & spk::CollisionMesh2D::boundingBox ( ) const

Returns the axis-aligned bounding box in local space.

Returns: Cached bounding box.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collideWith() [1/4]

bool spk::CollisionMesh2D::collideWith	(	const CollisionMesh2D &	p_other,
		const spk::Matrix4x4 &	p_selfTransform,
		const spk::Matrix4x4 &	p_otherTransform ) const

Tests collision against another mesh using explicit matrices.

Parameters

p_other	Other mesh to collide with.
p_selfTransform	Matrix for this mesh.
p_otherTransform	Matrix for the other mesh.

Returns: True if the meshes overlap.

Here is the call graph for this function:

◆ collideWith() [2/4]

bool spk::CollisionMesh2D::collideWith	(	const CollisionMesh2D &	p_other,
		const Transform2D &	p_selfTransform,
		const Transform2D &	p_otherTransform ) const

Tests collision against another mesh using transform components.

Parameters

p_other	Other mesh to collide with.
p_selfTransform	Transform applied to this mesh.
p_otherTransform	Transform applied to the other mesh.

Returns: True if the meshes overlap.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collideWith() [3/4]

bool spk::CollisionMesh2D::collideWith	(	const spk::Vector2 &	p_worldPoint,
		const spk::Matrix4x4 &	p_selfTransform ) const

Tests collision with a world-space point using a matrix.

Parameters

p_worldPoint	Point in world space.
p_selfTransform	Matrix for this mesh.

Returns: True if the point is inside the mesh.

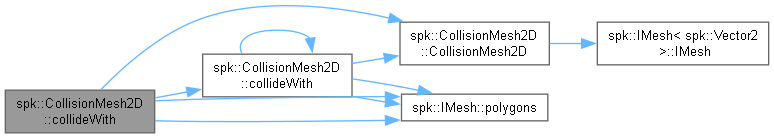

Here is the call graph for this function:

◆ collideWith() [4/4]

bool spk::CollisionMesh2D::collideWith	(	const spk::Vector2 &	p_worldPoint,
		const Transform2D &	p_selfTransform ) const

Tests collision with a world-space point using a transform component.

Parameters

p_worldPoint	Point in world space.
p_selfTransform	Transform applied to this mesh.

Returns: True if the point is inside the mesh.

Here is the call graph for this function:

◆ operator=() [1/2]

CollisionMesh2D & spk::CollisionMesh2D::operator= ( CollisionMesh2D && p_other )

noexcept

Move-assigns a collision mesh.

Parameters

p_other Mesh to move from.

Returns: Reference to this mesh.

Here is the call graph for this function:

◆ operator=() [2/2]

CollisionMesh2D & spk::CollisionMesh2D::operator= ( const CollisionMesh2D & p_other )

Copy-assigns another collision mesh.

Parameters

p_other Mesh to copy from.

Returns: Reference to this mesh.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

includes/structure/engine/2d/spk_collision_mesh_2d.hpp
srcs/structure/engine/2d/spk_collision_mesh_2d.cpp
